Product Overview

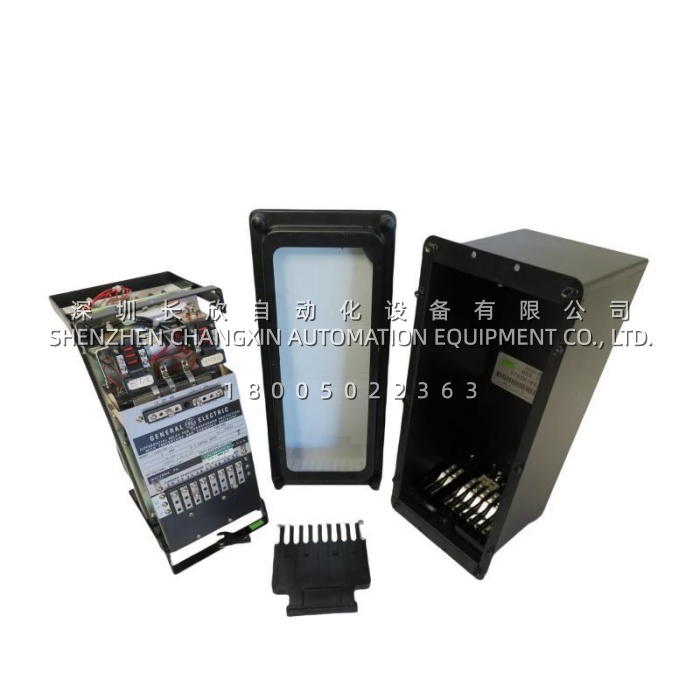

The GE 12BDD15B11A is a high-speed, single-phase electromechanical transformer differential relay belonging to General Electric’s renowned BDD15B series, purpose-engineered to provide primary main protection for power transformers against internal phase-to-phase, phase-to-ground, and turn-to-turn faults. Designed around the principle of percentage differential protection with 2nd-harmonic restraint, the GE 12BDD15B11A continuously compares the current entering and leaving a transformer winding; under normal load or external fault conditions the vector sum approaches zero, but any internal fault produces an unbalanced differential current that the relay detects and acts upon within 20 milliseconds, initiating high-speed breaker tripping to isolate the defective transformer before catastrophic damage occurs.
At its core, the GE 12BDD15B11A employs a sophisticated blend of electromagnetic induction-disc elements and a high-impedance voltage-sensing operating coil connected across the paralleled secondary windings of the transformer’s current transformers (CTs). This architecture gives the GE 12BDD15B11A inherent stability against CT saturation during severe external faults, while its integrated harmonic restraint filter passes the 2nd-harmonic-rich magnetizing inrush current through the restraining coil, preventing false tripping when a transformer is energized. The relay is configured for 5 A CT secondary rating at 60 Hz, with an auxiliary control voltage of 125/250 V DC, and provides two sets of normally-open (N.O.) contacts capable of closing 30 A at voltages up to 250 V for direct breaker tripping.
As a legacy but still widely deployed protection device, the GE 12BDD15B11A earns its reputation through decades of dependable service in substations, industrial plants, and power generation facilities worldwide. Its CT ratio tap range of 2.9–8.7 A, three selectable percentage slope settings (15%, 25%, 40%), instantaneous unit set at 8× tap, and a target indicator for visual fault annunciation make the GE 12BDD15B11A a transparent, “fit-and-forget” component that protection engineers trust for transformer assets where a single false trip can have massive grid consequences. For three-phase transformer protection, three GE 12BDD15B11A units are deployed—one per phase—forming a complete and highly secure differential protection scheme.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 12BDD15B11A |
| Manufacturer | General Electric (GE) |
| Product Type | Transformer Differential Relay (Electromechanical, Single-Phase) |
| Series | GE BDD15B |
| Protection Functions | Percentage Differential (87T) with 2nd-Harmonic Restraint |
| Rated Frequency | 60 Hz (50 Hz variants available) |
| CT Secondary Rating | 5 A (standard) |
| Control / Auxiliary Voltage | 125 / 250 V DC |
| CT Ratio Tap Range | 2.9 – 8.7 A |
| Zero-Restraint Pickup | 0.3 × Tap Setting |
| Percentage Slope Settings | 15%, 25%, 40% (selectable) |
| Instantaneous Unit | 8 × Tap |
| Operating Time | ≤ 20 ms for high-set internal faults |
| Contact Configuration | 2 sets of N.O. (Normally Open) contacts |
| Contact Current Closing Rating | 30 A at voltages ≤ 250 V |
| Short-Time Thermal Current | 220 A for 1 second (I²t = 48,400) |
| Short-Time Electrical Rating | 150 × tap value RMS total internal fault current |
| Auxiliary Relay | Target indicator |
| Harmonics Handling | 2nd-harmonic restraint for inrush immunity |
| Burden (Operating Circuit, 5 A) | 2.9 VA / 0.128 Ω (60 Hz relay) |
| Burden (Restraint Circuit, 5 A) | 3.2 VA / 0.052 Ω (60 Hz relay) |
| Mounting | Panel-mounted, draw-out or fixed-case design |
| Form / Contact Arrangement | Form 11 (per GEH-2057) |
| Standards Compliance | IEEE/ANSI relay protection standards |
| Status | Legacy / Discontinued — available as new-old-stock, refurbished, or spare |
Main Features and Advantages
The GE 12BDD15B11A has remained a stalwart of transformer protection for decades because its design elegantly solves the two greatest challenges in differential protection: security during external faults and sensitivity to low-magnitude internal faults. By comparing the vector difference between currents entering and leaving a transformer winding, the GE 12BDD15B11A only operates when the differential current exceeds a percentage of the through (restraint) current. This “percentage differential” characteristic delivers unmatched stability during external faults, where CT errors could otherwise produce false differential signals that mislead lesser protection schemes.
Percentage restraint against CT saturation:
During severe through-faults, the high-impedance voltage-sensing operating coil of the GE 12BDD15B11A inherently limits the spill current through the relay operating coil, making the relay exceptionally secure even when CTs approach saturation. The selectable 15%, 25%, or 40% slope characteristic lets protection engineers tune the GE 12BDD15B11A to the specific CT accuracy and fault current magnitude of each installation, balancing sensitivity against security. This adjustability is a decisive advantage in aging substations where CT performance may have degraded over decades of service.
Harmonic restraint for inrush immunity:
When a transformer is energized, the magnetizing inrush current contains a high proportion of 2nd-harmonic (100 Hz) content—a signature largely absent in genuine internal fault currents. The GE 12BDD15B11A routes harmonic components through its restraining coil, automatically blocking operation during energization while remaining fully sensitive to true faults. This 2nd-harmonic restraint is the key innovation that allows the GE 12BDD15B11A to distinguish between a benign inrush event and a destructive internal fault, eliminating the historical scourge of false trips on transformer energization.
Electromechanical robustness:
Unlike early solid-state devices that struggled in harsh substation environments, the GE 12BDD15B11A is built with induction-disc and moving-coil elements that offer exceptional durability and noise immunity. Its operation is fully transparent and easily understood by protection engineers—no software, no firmware, no configuration files. This simplicity translates into decades of service in environments with wide temperature swings and pervasive electrical noise. The GE 12BDD15B11A is truly a “fit-and-forget” component that does not require periodic recalibration, battery backup, or cyber-security patching.
