Product Description

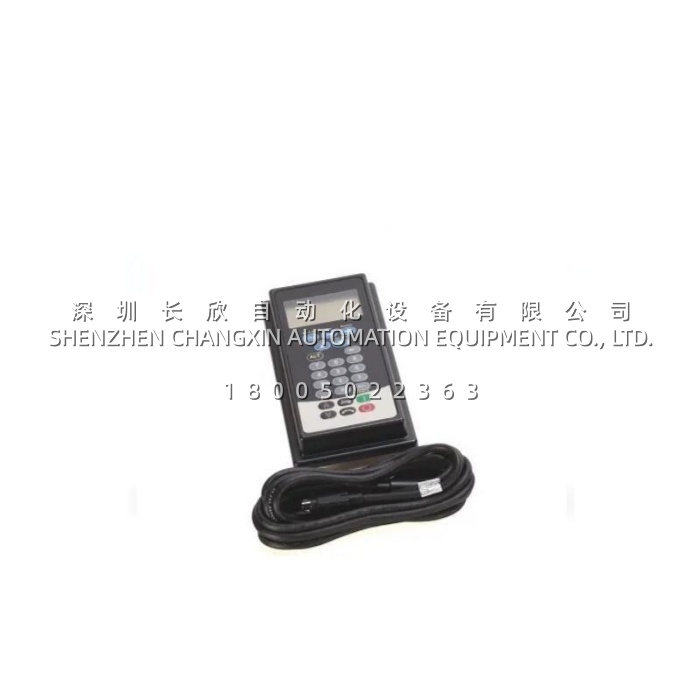

The Allen-Bradley 20-HIM-C3S is a remote-mounted Human Interface Module (HIM) from Rockwell Automation’s PowerFlex drive family, featuring a clear LCD display and a full numeric keypad for local drive configuration and monitoring . This module is purpose-built for installation on control cabinet doors, enabling operators to interact with PowerFlex drives without opening the enclosure.
Designed for demanding industrial settings, the Allen-Bradley 20-HIM-C3S delivers IP66 and NEMA 4X/12-rated protection against dust, water, and corrosive environments, making it a durable solution for facilities where equipment is exposed to washdowns or airborne contaminants .
Application Scenarios
In a large food processing plant, maintenance teams frequently needed to adjust conveyor speeds and troubleshoot drive faults on the packaging line. The existing drive-mounted HIMs required operators to open control cabinets—an unsafe and time-consuming practice, especially in washdown areas with high humidity. By installing the Allen-Bradley 20-HIM-C3S on each cabinet door, operators gained safe, immediate access to drive parameters and diagnostic information . The sealed IP66 design withstands regular high-pressure washdowns, and the full numeric keypad enables rapid speed adjustments without lifting cabinet covers. The plant reported a 60% reduction in fault response time and improved operator safety.
The Allen-Bradley 20-HIM-C3S is also invaluable for OEM machine builders. By mounting the HIM on the machine panel, they provide end-users with an intuitive local interface for commissioning, parameter tuning, and daily operation, reducing reliance on laptops or external programming devices .
Technical Specifications
| Main Parameters | Value / Description |
|---|---|
| Product Model | 20-HIM-C3S |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | Remote Human Interface Module (HIM) |
| Display | Backlit LCD |
| Keypad Type | Full numeric keypad with navigation keys |
| Mounting Type | Remote panel/door mount |
| Protection Rating | IP66, NEMA 4X/12 (indoor use with gasket) |
| Supply Voltage | 12 VDC via host drive backplane |
| Current Draw | 140 mA @ 12 VDC |
| Communication Interface | Drive Peripheral Interface (DPI) |
| Data Rate | 125 Kbps / 500 Kbps |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions | 2.2 cm × 12.4 cm × 12.6 cm |
| Included Cable | 1202-C30 (3-meter DPI cable) |
Technical Principles and Innovative Values
- Innovation Point 1: Remote Access and Rugged Protection
The Allen-Bradley 20-HIM-C3S is engineered for remote panel mounting, providing full drive control without opening the cabinet . Its IP66 and NEMA 4X/12 rating ensures reliable operation in environments exposed to water jets, dust, and corrosive substances, a significant advantage over standard drive-mounted HIMs . This design reduces safety risks associated with live cabinet access and extends the module’s lifespan in harsh conditions. - Innovation Point 2: Enhanced Diagnostics and Operator Feedback
The module features a flashing LCD backlight that annunciates faults and alarms . This visual alert system draws operator attention immediately, reducing diagnostic time. Configurable parameters for fault and alarm display types allow customization of the flashing pattern, meeting specific plant notification needs . - Innovation Point 3: Brand-Neutral Compatibility and Bumpless Transfer
The supports both Allen-Bradley PowerFlex drives and Reliance Electric brand DPI drives, offering flexibility in mixed-vendor environments . The Preload Reference Event feature enables bumpless transfer when switching between local and remote control references, preventing sudden speed or torque changes that could disrupt processes . - Innovation Point 4: CopyCat Parameter Cloning
Built-in CopyCat functionality allows quick upload and download of drive parameter sets . Maintenance teams can rapidly clone configurations across multiple drives, reducing commissioning time for new machines and simplifying drive replacement during unplanned downtime.
