Description

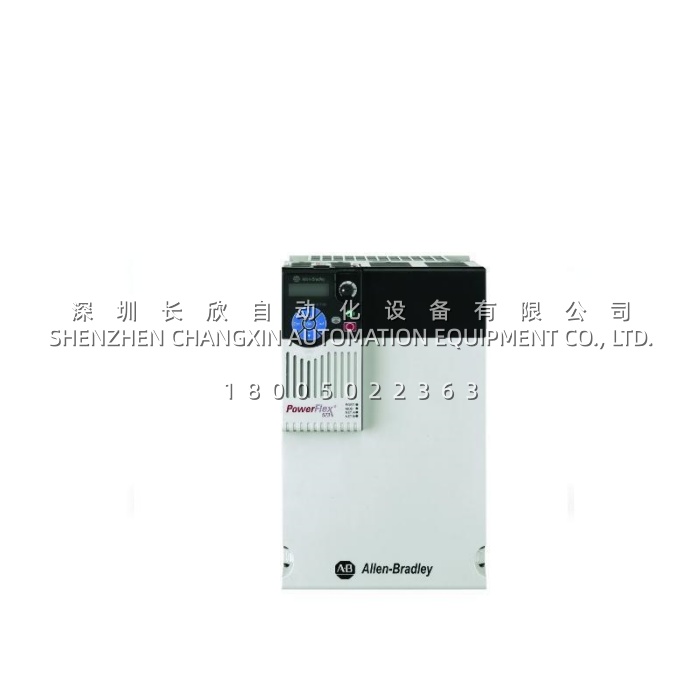

The 25A-D4P0N114 is a compact, cost-effective AC drive manufactured by Allen-Bradley / Rockwell Automation, belonging to the widely adopted PowerFlex 523 family of variable frequency drives (VFDs). Engineered for standalone machine control, this 380–480 V AC three-phase drive delivers 4 A continuous output, rated at 1.5 kW (2 Hp) for both normal duty and heavy duty applications, housed in a Frame A open-type (IP20/NEMA Open) enclosure with an integrated EMC filter. The 25A-D4P0N114 combines an innovative modular design with a removable control core, allowing installation and software configuration to proceed in parallel — dramatically reducing commissioning time. With support for volts per hertz, sensorless vector control, and sensorless vector with Economizer mode, the 25A-D4P0N114 provides the precise motor speed regulation demanded by modern industrial automation, while its built-in RS485/DSI port enables low-cost networking across up to five drives on a single node.
Application Scenarios
In a regional beverage bottling facility, the original fixed-speed induction motors driving the conveyor transfer belts and bottle rinsing pumps were causing excessive mechanical wear and energy waste. The plant’s automation engineer needed a compact, budget-friendly drive solution that could fit within the existing control cabinet without requiring a complete panel redesign. By deploying the 25A-D4P0N114 across twelve conveyor zones and four rinse pumps, the maintenance team leveraged the drive’s USB programming and multilingual LCD HMI with integral keypad to perform rapid on-site commissioning. The integrated EMC filter of the 25A-D4P0N114 eliminated electromagnetic interference with nearby sensitive filling sensors, while the built-in PID control enabled flow-based closed-loop regulation for the rinse pumps. Through the RS485/DSI network, all sixteen 25A-D4P0N114 drives were daisy-chained to the central MicroLogix controller, allowing centralized speed coordination across the entire bottling line. Within the first six months, the facility reported a 27% reduction in energy consumption and a 40% decrease in mechanical coupling failures, as soft-start acceleration profiles dramatically reduced belt stress. For machine builders and maintenance managers overseeing standalone equipment, the represents the ideal balance of affordability, functionality, and Rockwell Automation reliability — a drive that grows with the application without forcing a platform migration.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Family | PowerFlex 523 AC Drive (520-Series) |
| Input Voltage | 380–480 V AC, 3-phase, 50/60 Hz |
| Output Current | 4 A continuous |
| Power Rating – Normal Duty | 1.5 kW (2 Hp) |
| Power Rating – Heavy Duty | 1.5 kW (2 Hp) |
| Frame Size | Frame A (compact) |
| Enclosure Rating | IP20 NEMA / Open Type |
| EMC Filter | Integrated EMC filter (standard) |
| Control Modes | Volts per Hertz (V/Hz), Sensorless Vector, Sensorless Vector with Economizer, PID |
| Communications | Integrated RS485/DSI port; optional communication modules (EtherNet/IP, PROFINET) |
| Analog Inputs | 1 (voltage or current selectable) |
| Digital Inputs | 5 (24 V DC), 4 programmable |
| Analog Output | 1 |
| Relay Output | 1 Form C (SPDT) |
| Human Interface | Multilingual LCD HIM with keypad and speed potentiometer; USB port for MainsFree programming |
| Dynamic Braking | Standard brake transistor (DB) |
| Mounting | Panel mount or DIN rail; side-by-side with 50 mm airflow gap top/bottom |
| Operating Temperature | -20°C to +50°C (up to 70°C with current derating and control module fan kit) |
| Certifications | CE, UL, cUL, C-Tick, GOST, KC, RINA, ABS |
| Lifecycle Status | Active, Repairable/Replaceable |
| Standard Warranty | 1 year |
