Application Scenarios
In a large automotive assembly plant, conveyor systems required precise speed control to synchronize parts delivery across multiple production lines. The existing drives lacked network integration, causing communication delays and production bottlenecks. By deploying the Allen-Bradley 25B-D4P0N104, the plant achieved seamless integration via embedded EtherNet/IP, enabling real-time speed adjustments from the central control system. The drive’s sensorless vector control maintained accurate torque even at low speeds, improving conveyor synchronization and reducing product jams. The plant reported a 25% increase in line efficiency and simplified troubleshooting through the drive’s USB programming port.
The Allen-Bradley 25B-D4P0N104 is equally effective in HVAC systems, where its 0.98 power factor reduces energy consumption, and in pumping applications where the integrated brake IGBT handles frequent stop-start cycles. Its ability to operate in ambient temperatures up to 70°C (158°F) makes it suitable for demanding environments.
Technical Specifications

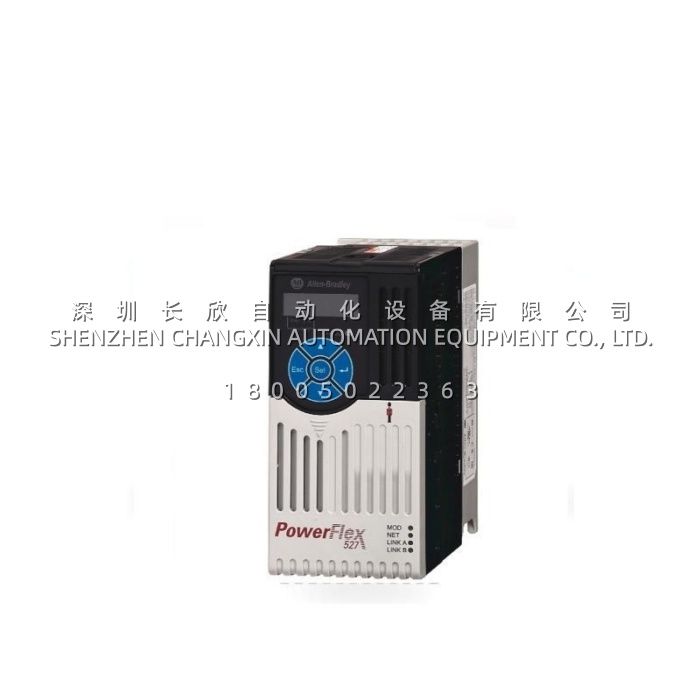

| Main Parameters | Value / Description |
|---|---|
| Product Model | 25B-D4P0N104 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | Variable Frequency AC Drive (VFD) |
| Input Voltage | 323–528 VAC, 3-Phase (Nominal 380-480V) |
| Output Current | 4.0 A RMS |
| Output Power (Normal/Heavy Duty) | 1.5 kW / 2.0 HP (both ND and HD) |
| Output Voltage | 0–460 VAC |
| Frequency Range | 50–60 Hz |
| Power Factor | 0.98 |
| Frame Size | Frame A (IP20 / NEMA Open Type) |
| User Interface | Integral keypad with potentiometer and LED display |
| Communication | Embedded EtherNet/IP, USB programming, RS485/DSI |
| Braking | Built-in Brake IGBT |
| Dimensions (H x W x D) | 5.98 x 2.83 x 6.77 inches (152 x 72 x 172 mm) |
| Weight | 1.36 kg (3.00 lbs) |
| Operating Temperature | 0°C to 70°C (158°F) |
Technical Principles and Innovative Values
- Innovation Point 1: Embedded EtherNet/IP and Dual-Port Communication
The Allen-Bradley 25B-D4P0N104 features integrated dual EtherNet/IP ports, enabling daisy-chain network topologies without external switches. This reduces installation cost and simplifies wiring in multi-drive systems. The USB port allows direct connection to a laptop for configuration using Connected Components Workbench software, eliminating the need for specialized programming cables. - Innovation Point 2: Advanced Motor Control Algorithms
The drive supports multiple control modes including Volts per Hertz (V/Hz), Sensorless Vector Control, and Closed-Loop Velocity Control. Sensorless Vector Control provides superior torque regulation at low speeds, making the Allen-Bradley 25B-D4P0N104 ideal for applications requiring precise speed control without an encoder. - Innovation Point 3: Compact Frame A Design with Zero-Stacking Capability
The Frame A design of the Allen-Bradley 25B-D4P0N104 supports zero-stacking installation at ambient temperatures up to 45°C, maximizing panel space utilization. This compact footprint reduces enclosure size and installation costs compared to larger frame drives. - Innovation Point 4: Built-in Brake IGBT and PowerFlex 525 Safety Features
The integrated brake IGBT enables dynamic braking without external brake choppers, saving panel space and reducing system cost. Standard safety features include Safe Torque Off (STO), enhancing operator protection during maintenance.
