Description

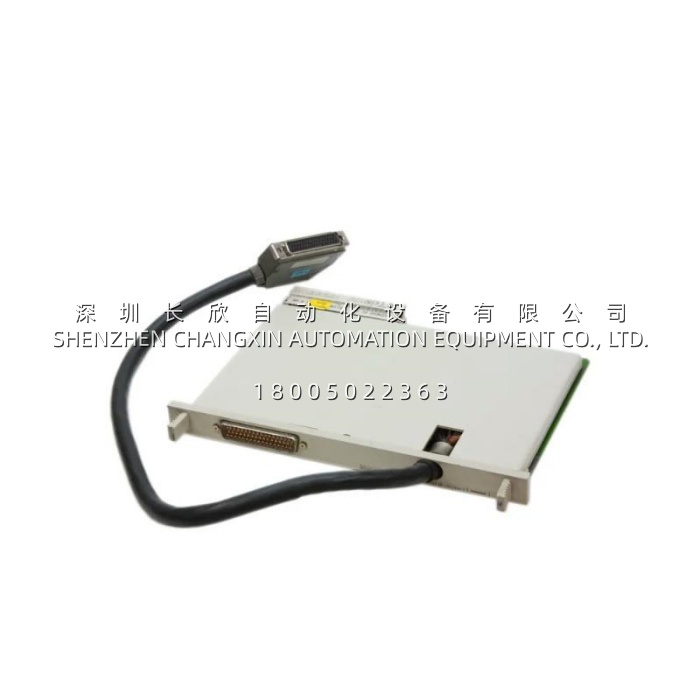

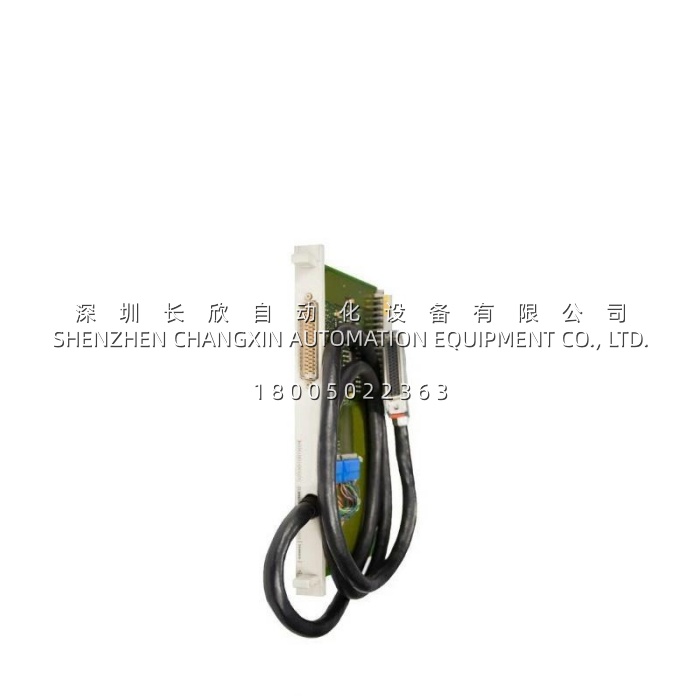

The Siemens 6ES5312-5CA22 is an IM312-series expansion unit (EU) interface module manufactured by Siemens, purpose-built for the SIMATIC S5-135U and S5-155U centralized programmable logic controller (PLC) architecture. It serves as the “slave-side” communications bridge that mounts in a powerless expansion rack (EU 184U or EU 187U) and pairs with the IM300-5C module on the central controller (CC) side to extend I/O capacity over a fixed 1.5-meter interconnect cable.
Unlike active interface modules that require dedicated power supplies, the Siemens 6ES5312-5CA22 draws its 5V backplane power directly through the interface cable from the central controller side, simplifying cabinet layout and eliminating the need for a separate power source in the expansion rack. This makes it the definitive, cost-effective solution for reviving or extending legacy S5 installations where rack slot count has become a bottleneck.
Application Scenarios
A regional automotive component supplier operating a fleet of S5-155U-controlled assembly stations encountered a classic legacy automation challenge: their existing central racks had exhausted all available I/O slots, yet production was expanding to require an additional 64 digital inputs and 32 digital outputs per cell for new vision inspection and reject-diverter stations. Rather than undertaking a costly and time-consuming migration to a modern S7 platform—which would have entailed rewiring, reprogramming, and weeks of validation downtime—the engineering team deployed Siemens 6ES5312-5CA22 modules paired with IM300-5C on the CC side and EU 187U powerless racks on the EU side. The 1.5-meter fixed cable allowed clean routing within the existing enclosure, and because the Siemens 6ES5312-5CA22 draws 5V backplane power directly from the central controller, no additional power supply was needed in the expansion rack. The result: each station was expanded in under half a day, original control logic remained untouched, and the total investment was a fraction of a full platform migration.
In another scenario, a chemical processing facility with a SIMATIC S5-135U-based distributed control system (DCS) needed to add redundant safety interlock monitoring across multiple remote panels. By installing Siemens 6ES5312-5CA22 modules in EU 184U racks positioned adjacent to each process area, the plant centralized all new interlock I/O into the main S5-135U program image. The module’s IP20-rated, cabinet-mounted design and 0–55°C operating range proved ideal for the control room environment, while the fixed 1.5m cable length enforced disciplined panel layout planning. Maintenance teams praised the simplicity: a failed Siemens 6ES5312-5CA22 could be swapped in minutes, with the original cable and rack position preserved—no reconfiguration, no address remapping.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | Siemens 6ES5312-5CA22 (IM312-5) |
| Manufacturer | Siemens AG |
| Product Category | Expansion Unit Interface Module (EU-side) |
| Series | SIMATIC S5 – IM 312 Interface Module Family |
| System Compatibility | SIMATIC S5-135U / S5-155U centralized configuration |
| Paired CC-Side Module | IM 300-5C (Order No. 6ES5300-5CA11) |
| Compatible Expansion Racks | EU 184U, EU 187U (powerless expansion units) |
| Mounting Position | Dedicated interface slot on the Expansion Unit (EU) rack |
| Cable | 1.5-meter fixed-length flat cable (non-detachable) |
| Power Supply | 5V DC drawn from CC side via interface cable |
| Current Consumption | Typical 0.2 A @ 5V DC |
| Power Dissipation | Typical 1 W |
| Physical Dimensions | Approx. 230 × 250 × 30 mm (9″ × 10″ × 1″) |
| Weight | Approx. 0.9 kg (1 lb 15 oz) |
| Protection Class | IP20 (cabinet/internal installation) |
| Operating Temperature | 0°C to +55°C |
| Condition | New Surplus / NOS (New Old Stock), not refurbished |
| Lifecycle Status | Discontinued (EOL) – limited inventory available |
