Description

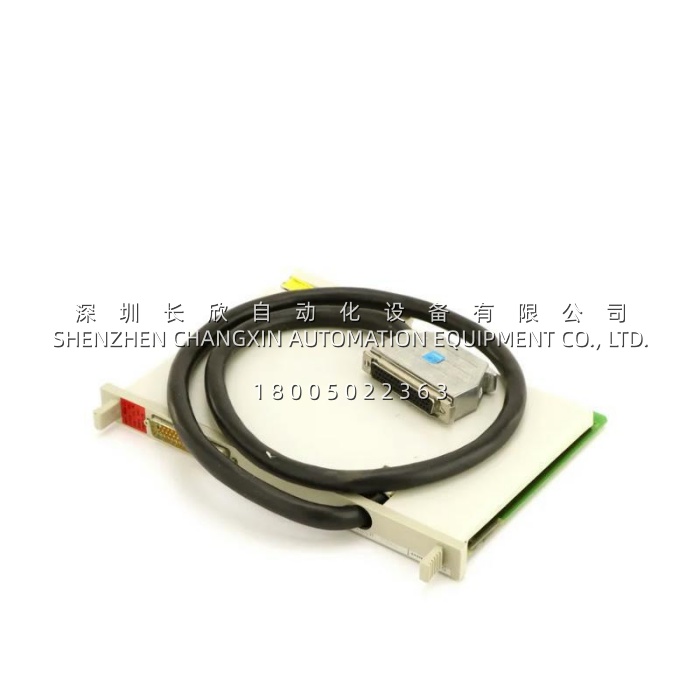

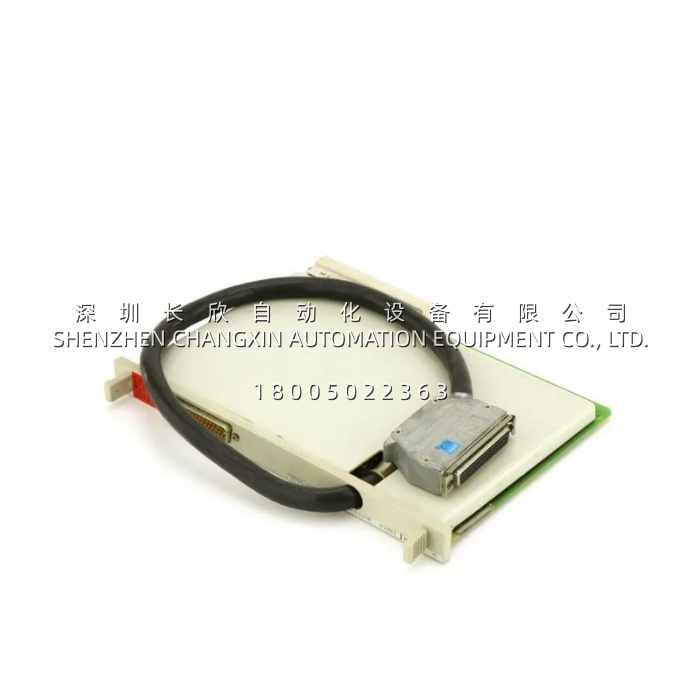

The SIEMENS 6ES5312-3AB31, also known as the IM312-3 interface module, is a specialized module from the SIMATIC S5 family designed for centralized expansion of S5-135U and S5-155U PLC systems. It is installed in the expansion unit (EU) and connects it to the central controller (CC) via an integrated, fixed cable.
Designed specifically for expansion units with a power supply chassis, such as the EG 183U and EG 185U, the SIEMENS 6ES5312-3AB31 provides a reliable, dedicated communication link. It ensures that I/O modules and intelligent signal modules in the expansion rack are integrated seamlessly into the central controller’s system bus, enabling significant system I/O capacity expansion without overcomplicating the architecture.
Application Scenarios
In a large-scale automotive body shop, an S5-155U central controller had all its local I/O slots occupied. The control system needed to accommodate a new conveyor zone with dozens of new sensors and actuators. Instead of replacing the expensive central rack, the engineering team expanded the system by adding an EG 183U expansion unit. They installed the SIEMENS 6ES5312-3AB31 into the dedicated slot of the expansion unit. The 0.95-meter fixed cable was connected directly to the IM 300-3 module in the central rack. This simple, plug-and-play solution extended the system’s I/O capacity without requiring a complex redesign, saving both time and substantial hardware costs.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | SIEMENS 6ES5312-3AB31 |
| Manufacturer | Siemens (SIEMENS AG) |
| Product Category | Interface Module (IM312-3) for Centralized Expansion |
| Compatible Systems | SIMATIC S5-135U, S5-155U/H |
| Compatible Expansion Units | EG 183U, EG 185U (with power supply chassis) |
| Current Consumption (5V) | Max. 0.2 A |
| Power Loss | Max. 1 W |
| Connection Type | Integrated cable, fixed to the module |
| Cable Length | 0.95 m (approx. 3.1 ft) – for EU installed above the CC |
| Counterpart Module (CC) | IM 300-3 (e.g., 6ES5 300-3AB11) |
| Space Requirement | 1 slot |
| Weight | Approx. 0.35 kg (0.77 lb) |
| Operating Temperature | 0°C to +60°C |
Technical Principles and Innovative Values
Innovation Point 1: Centralized Architecture with a Fixed Cable
The SIEMENS 6ES5312-3AB31 simplifies system expansion by eliminating the need for a separate power supply in the expansion unit. It relies on the central rack’s backplane for power (5V), transmitted through the interface cable. This reduces the cost and complexity of the expansion unit. The module’s 0.95-meter integrated cable is factory-attached, ensuring a reliable and shielded connection for the signal and power lines.
Innovation Point 2: Specifically Designed for EG 183U/185U Chassis
The “-3” in its designation is critical. The 6ES5312-3AB31 is engineered for use with expansion units that have their own power supply chassis. In contrast, a different variant (the IM312-5) is required for expansion units like EG 184U/187U, which lack a power supply and draw all their power from the central rack. This targeted design ensures proper power distribution and signal integrity for the specific chassis type.
Innovation Point 3: High Reliability in a Compact Form
Fitting into a single slot, the SIEMENS 6ES5312-3AB31 offers a space-efficient solution. Its robust design, typical of the S5 family, delivers reliable performance in demanding industrial environments. With a maximum power loss of only 1W, it operates coolly and efficiently, contributing to the long-term stability of the entire control system.
Innovation Point 4: A Critical Component for Legacy System Support
As a vital part of the SIMATIC S5 line, the SIEMENS 6ES5312-3AB31 plays a crucial role in maintaining and extending the life of legacy S5-135U and S5-155U installations. For plants that have standardized on these proven systems for decades, this module is indispensable for adding new I/O points without a costly and disruptive migration to a new platform.
