Product Description

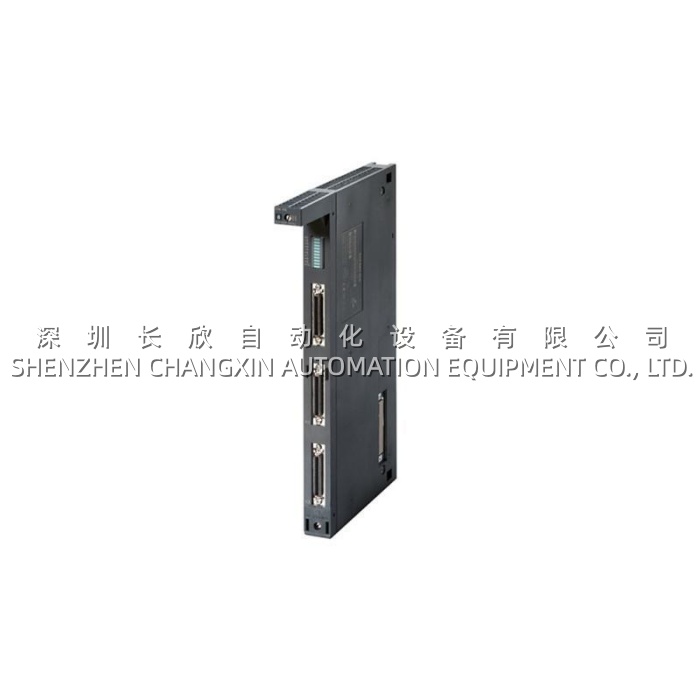

The Siemens 6DD1607-0CA1 is an EXM 438-1 I/O expansion module from the SIMADYN D and SIMATIC S7-400 families, designed to extend the functionality of the FM 458-1 DP application module for high-performance closed-loop control and motion control applications . This module provides critical binary and analog I/O as well as encoder interfaces to support the most demanding drive-related and technological control tasks .
The 6DD1607-0CA1 delivers exceptional signal processing capabilities, featuring 4 channels of 16-bit analog output and extensive digital I/O, making it an indispensable component for complex automation systems requiring high dynamic response and precision .
Application Scenarios
In a steel rolling mill, the control system faced challenges with high-speed, precision-critical processes like thickness control (AGC) and tension regulation, where standard PLC scan cycles simply couldn’t keep up. By integrating the Siemens 6DD1607-0CA1 with the FM 458-1 DP application module, the system achieved control cycles as fast as 100 microseconds, enabling real-time capture of motor speed fluctuations and instantaneous compensation calculations . The mill reported a 30% improvement in product quality consistency and eliminated unexpected shutdowns caused by control lag.
The 6DD1607-0CA1 addresses critical industrial pain points:
- Need for ultra-fast closed-loop control in drive and motion applications
- Requirement for high-resolution analog signal processing (16-bit)
- Demand for extensive encoder connectivity in multi-axis systems
- Integration of high-speed I/O with advanced communication protocols
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6DD1607-0CA1 (EXM 438-1) |
| Manufacturer | Siemens |
| Product Category | SIMADYN D / SIMATIC S7-400 I/O Expansion Module |
| Companion Module | FM 458-1 DP Application Module |
| Analog Outputs | 4 channels, 16-bit resolution |
| Digital Inputs | 16 points |
| Digital Outputs | 8 points |
| Encoder Interfaces | Up to 12 incremental or absolute encoders |
| Control Cycle | As low as 100 microseconds (0.1 ms) |
| Memory | 64 MB SDRAM, 16 MB DRAM, 512 KB SRAM |
| Communication Interfaces | PROFIBUS DP (RS-485), RS-232 (V.24) |
| Operating Temperature | -25°C to +60°C |
| Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions (W×H×D) | 24mm × 290mm × 210mm |
| Weight | Approx. 1.03 kg |
| Approvals | ATEX gas-ex-protection, Cat. 3G |
| Product Status | No Longer Stocked (End of Life) |
Technical Principles and Innovative Values
Innovation Point 1: High-Speed Parallel Processing Architecture
The Siemens 6DD1607-0CA1 connects to the FM 458-1 DP via an internal LE bus, ensuring that the application module can access new I/O data every 100 microseconds without being bottlenecked by slower fieldbus communication . This parallel processing architecture eliminates the traditional communication bottlenecks found in standard PLC I/O systems.
Innovation Point 2: Multi-Axis Encoder Integration
Unlike standard I/O modules, the 6DD1607-0CA1 supports up to 12 incremental or absolute encoders simultaneously . This capability makes it ideal for multi-axis motion control applications such as crosscutters, flying saws, and multi-motor drives, where precise position feedback from multiple axes is essential .
Innovation Point 3: High-Resolution Analog Signal Processing
With 4 channels of 16-bit analog output, the 6DD1607-0CA1 delivers exceptional signal fidelity for precision control of actuators, hydraulic drives, and process variables . This high resolution ensures that even the smallest changes in control output are accurately translated to the field devices.
