Product Overview

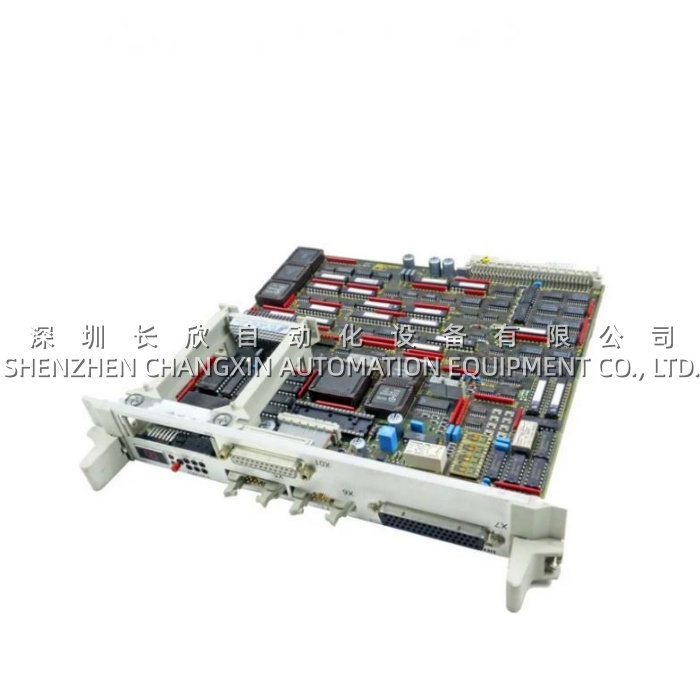

The Siemens 6DD1601-0AE0 is a high-performance processor module from the esteemed SIMADYN D family, specifically designed as the PG16 variant for line-commutated converters and demanding closed-loop control applications . This robust industrial CPU serves as the computational core within the SIMADYN D modular control system, a platform renowned for its application in large-scale drive control, such as rolling mills, mine hoists, and other heavy industrial processes . The Siemens 6DD1601-0AE0 excels at executing complex control algorithms with minimal cycle times, ensuring precise real-time coordination between drives and the broader automation network.
Engineered with a 64-bit RISC architecture and substantial memory capacity, the Siemens 6DD1601-0AE0 offers the processing power necessary for the most demanding motion control and process automation tasks . Its 16 MB of DRAM, 64 MB of SDRAM, and 512 KB of SRAM provide ample resources for storing and executing sophisticated user programs . The module integrates seamlessly into the SIMADYN D ecosystem via its L-Bus backplane interface, enabling high-speed data exchange with I/O modules, communication processors, and other CPU boards within the same chassis . The Siemens 6DD1601-0AE0 is a critical component for maintaining and upgrading legacy systems that still rely on the proven reliability and performance of the SIMADYN D platform .
Technical Specifications
| Parameter Name | Value |
|---|---|
| Product Model | 6DD1601-0AE0 (PG16) |
| Manufacturer | Siemens |
| Product Type | Processor Module / CPU Module |
| Series | SIMADYN D |
| CPU Type | 64-bit RISC |
| RAM Capacity | 16 MB DRAM |
| SDRAM Capacity | 64 MB |
| SRAM Capacity | 512 KB |
| Communication Interfaces | RS-485 (PROFIBUS DP), RS-232 (V.24) |
| Binary Inputs | X2 Interface |
| Rated Voltage | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Net Weight | Approx. 0.66 kg |
| Dimensions (L × W × H) | 27.40 x 27.60 x 4.80 cm |
| Country of Origin | Germany |
| Lifecycle Status | Discontinued (Legacy Spare) |
Main Features and Advantages
Optimized computation power for heavy-duty control: The Siemens 6DD1601-0AE0 is built with a high-speed 64-bit RISC architecture that handles intense computational loads and logic sequences with minimal cycle times . This capability is essential for applications such as vector control of large AC drives and precise regulation of line-commutated converters, where the Siemens 6DD1601-0AE0 ensures that complex control algorithms are executed with deterministic timing and exceptional accuracy .
Seamless system integration and communication: Equipped with versatile interfaces, including RS-485 (PROFIBUS DP) for industrial networking and RS-232 (V.24) for serial data transfer, the Siemens 6DD1601-0AE0 facilitates seamless integration within existing automation systems . Its compatibility with SINUMERIK and SIMODRIVE systems, alongside other SIMADYN D modules, makes the Siemens 6DD1601-0AE0 a central component in high-performance configurations, offering plug-and-play synchronization with a unified ecosystem of Siemens automation hardware .
Robust and resilient field performance: Designed for the demanding environments of heavy industry, the Siemens 6DD1601-0AE0 is engineered to maintain data integrity and operational uptime even in settings with high electromagnetic interference or extreme temperatures . Its industrial-grade construction and wide operating temperature range ensure that the Siemens 6DD1601-0AE0 can withstand the typical wear and tear of 24/7 production cycles, providing the long-term stability essential for critical processes .
