Application Scenarios
Picture a large water treatment facility spread across a sprawling campus. The central control room houses the primary PLC, but pumps, valves, and sensors are located hundreds of meters away in various processing buildings. Traditionally, running hundreds of individual wires for each I/O point would be cost-prohibitive and a maintenance nightmare. By deploying the Schneider 140CRA31200 as a remote I/O drop at each satellite substation, the facility centralizes its control logic while distributing the physical I/O where it is needed. The adaptor communicates with the central controller via a single Ethernet cable using the EtherNet/IP protocol, slashing installation costs and simplifying troubleshooting.
Beyond water treatment, the Schneider 140CRA31200 excels in numerous demanding industrial settings. In mining and metals, it connects I/O racks located near crushers and conveyors to a central control room, isolating sensitive electronics from harsh vibration and dust. In power generation, it links data acquisition points across a plant to the DCS. Its support for redundant media and daisy-chain topologies means that a single cable break doesn’t bring down the entire system, which is critical for operations like automotive assembly lines where downtime is measured in thousands of dollars per minute.
Parameters

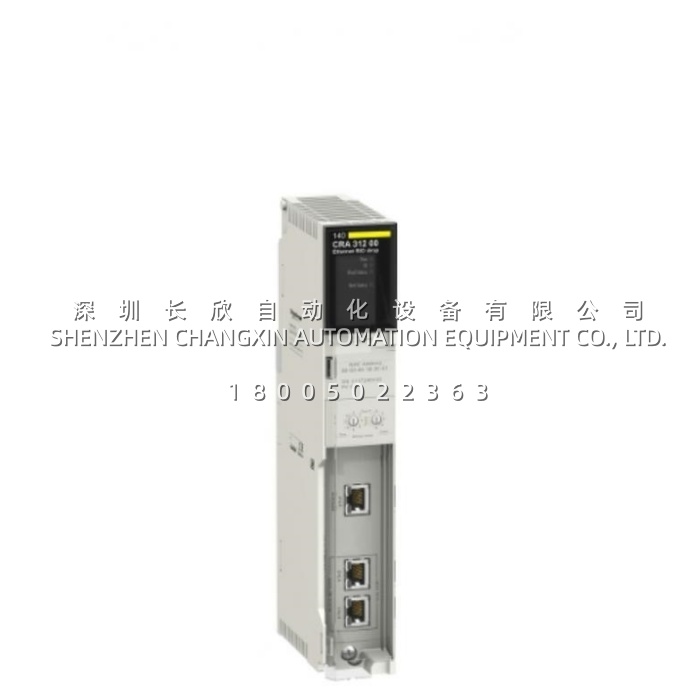

| Main Parameters | Value/Description |
|---|---|
| Product Model | 140CRA31200 |
| Manufacturer | Schneider Electric |
| Product Category | Ethernet Remote I/O (RIO) Drop Adaptor |
| Number of Ports | 3 x 10/100 Base-T Ethernet ports (1 Service, 2 Device Network) |
| Communication Protocol | EtherNet/IP (for I/O exchange), Modbus TCP (for service port) |
| Network Topology | Daisy Chain, Redundant Ring, Star (via switches) |
| I/O Capacity per Network | Up to 31 remote I/O drops (140CRA31200) per network |
| Protection Rating | IP20 (protection against solid objects >12.5mm) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 93% non-condensing |
| Compatibility | Modicon Quantum & M580 platforms (requires 140CRP31200 scanner) |
| MTBF | 1,397,625 hours |
Technical Principles and Innovative Values
The Schneider 140CRA31200 stands out for its combination of robust, deterministic communication and flexible, redundant network design.
- Deterministic, Real-Time I/O Exchange: The 140CRA31200 uses the EtherNet/IP protocol to facilitate a highly predictable “implicit” I/O exchange with the main scanner. This means the time required to scan all remote I/O and update the controller is deterministic, a critical feature for time-sensitive processes. The module collects input data from its local I/O rack and publishes it to the scanner, while simultaneously updating its output modules with data received from the scanner, all within a predictable time frame. This predictability is a distinct advantage over standard Ethernet traffic that can be subject to delays.
- Advanced Network Redundancy and Flexibility: A key innovation of the 140CRA31200 is its ability to support media redundancy through a daisy-chain or ring topology. The two “DEVICE NETWORK” ports allow it to be part of a redundant loop. If one cable is cut, the RSTP (Rapid Spanning Tree Protocol) service automatically reroutes data via the alternate path, ensuring continuous operation. This resilience is invaluable for critical infrastructure where network downtime is not an option.
- Tri-Port Architecture for Versatile Connectivity: The module includes three distinct Ethernet ports, each serving a specific purpose. The two DEVICE NETWORK ports handle real-time I/O data exchange. The dedicated SERVICE port allows engineers to connect a laptop or HMI for diagnostics, configuration, and monitoring without disrupting the primary control network, simplifying maintenance and commissioning tasks.
