Application Scenarios
Consider a large automotive stamping press line where operator safety is paramount. A single press cycle generates immense force capable of catastrophic injury. The facility’s existing safety system—a patchwork of hardwired relays and contactors—was slow to respond and lacked diagnostic visibility. By integrating the Siemens 6ES7138-4FA04-0AB0 into their ET200S distributed I/O network, the engineering team connected dual-channel emergency stop pushbuttons, safety light curtains, and access door limit switches to the module. In a 1oo2 evaluation configuration, the 6ES7138-4FA04-0AB0 continuously compares signals from paired inputs; if the two channels disagree for longer than the configurable discrepancy time, the module safely de-energizes the press drive within milliseconds and reports the exact fault source via PROFIsafe diagnostics. This upgrade reduced safety-related downtime from an average of 45 minutes per event to under 10 minutes, as operators can now identify the specific faulty input rather than hunting through relay logic.
In a pharmaceutical packaging line, the 6ES7138-4FA04-0AB0 monitors 4 dual-channel safety mats installed around high-speed blister packing machines. The module’s integral 300 mA sensor power supply provides short-circuit-protected 24V to each mat, eliminating the need for external power distribution . When an operator steps onto a safety mat, the 6ES7138-4FA04-0AB0 detects the signal change and triggers a controlled stop of the packaging line. The module’s diagnostic LEDs (green channel status indicators and red group fault SF LED) allow maintenance staff to immediately identify which safety zone was activated, streamlining troubleshooting and improving overall equipment effectiveness (OEE) by 15%.

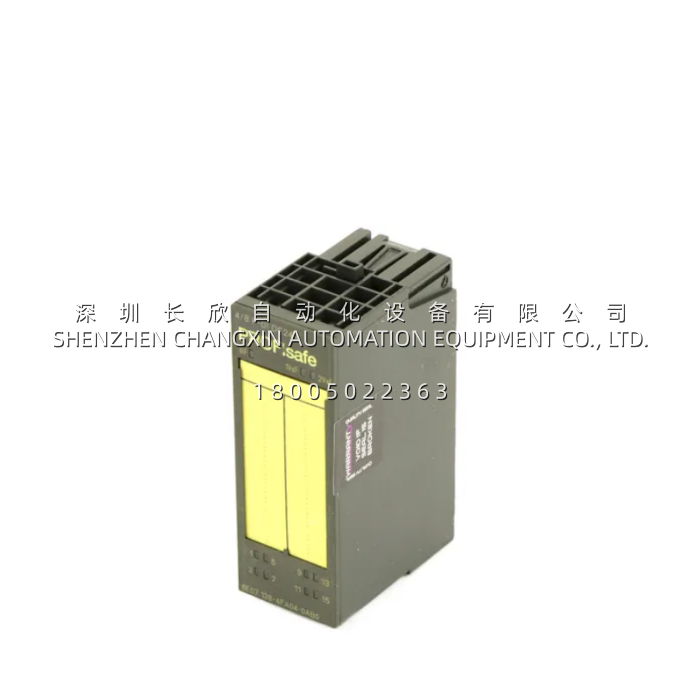

Technical Specifications
| Parameter | Value/Description |
|---|---|
| Product Model | 6ES7138-4FA04-0AB0 |
| Manufacturer | Siemens AG |
| Product Category | SIMATIC ET200S Fail-Safe Digital Input Module (F-DI) |
| System Compatibility | ET200S distributed I/O (PROFIBUS DP / PROFINET with IM 151-3 HF) |
| Number of Inputs | 8 (configurable: 8× one-channel or 4× two-channel) |
| Rated Input Voltage | 24 V DC (range 20.4 – 28.8 V) |
| Signal “1” Threshold | +15 to +30 V |
| Signal “0” Threshold | -30 to +5 V |
| Typical Input Current (“1”) | 3.7 mA |
| Input Delay | 0.3 ms to 17 ms (parameterizable) |
| Sensor Supply Outputs | 2 channels, min. L+ (-1.5 V), 300 mA each, short-circuit protected |
| Power Loss (Typical) | 4 W |
| Address Space | Input: 6 bytes / Output: 4 bytes |
| Safety Certification | SIL3 / SIL2 (IEC 61508), PL e (ISO 13849-1), Cat.4 (EN 954-1) |
| Cable Length (Max) | Shielded/Unshielded: 500 m |
| Channel Isolation | Channels to backplane: Yes; Channel-to-channel: No |
| Width | 30 mm |
| Weight | Approx. 78 g |
| LED Indicators | SF (red group fault), per-channel DI status (green) |
| Approvals | CE, cULus, ATEX Zone 2, IECEx, Marine (GL) |
Technical Principles and Innovative Value
Innovation Point 1: Dual-Core 1oo2 Evaluation Architecture
The Siemens 6ES7138-4FA04-0AB0 implements a two-channel (1oo2) evaluation architecture for SIL3 applications. In this mode, the module pairs inputs (DI0 with DI4, DI1 with DI5, etc.) and continuously monitors both signal states . A discrepancy timer parameter—typically set between 0.3 ms and 17 ms—allows brief signal difference due to contact bounce or mechanical switching characteristics . If the discrepancy persists beyond the configured time, the module triggers a safe state (passivation) and sets the SF LED. This architecture achieves a diagnostic coverage (DC) of over 99%, significantly exceeding the requirements for SIL3, while the configurable discrepancy time prevents nuisance tripping that plagues simpler safety relays .
Innovation Point 2: Integrated Sensor Power Supply with Short-Circuit Detection
The 6ES7138-4FA04-0AB0 provides two independent 300 mA sensor power outputs (Vs1 for channels 0-3, Vs2 for channels 4-7) with electronic short-circuit protection . This is not a simple fuse protection—the module actively monitors the sensor supply current and can detect short circuits between the sensor supply and ground, or between the sensor supply and L+ . When using internal sensor power, the module performs a “dark test” by momentarily disconnecting the supply to verify the sensor wiring. Any detected fault is reported via PROFIsafe diagnostics, enabling predictive maintenance before a safety function fails. This innovation eliminates the need for external power distribution modules and adds diagnostic intelligence to simple field wiring .
Innovation Point 3: PROFIsafe Integration and Fail-Safe Communication
The 6ES7138-4FA04-0AB0 supports the PROFIsafe protocol, enabling fail-safe communication over standard PROFIBUS DP or PROFINET networks . This allows the module to be located up to 500 m from the safety PLC, distributed across a plant floor just like standard I/O. PROFIsafe includes a safety layer with CRC protection and sequence numbering, ensuring that safety telegrams are not lost, repeated, or corrupted. When used with PROFINET and the IM 151-3 HF interface module, the 6ES7138-4FA04-0AB0 achieves response times of under 50 ms for the entire safety chain, meeting the tightest machine safety cycle requirements .
Innovation Point 4: Hot-Swap Capability for Minimal Downtime
The 6ES7138-4FA04-0AB0 supports hot-swap (module replacement during operation) when installed in ET200S terminal modules . A new module inserted into the same slot adopts the configuration of the replaced module without requiring hardware configuration changes—provided the PROFIsafe address DIP switch setting is identical . This is particularly valuable for safety systems where replacement of a failed module must be performed with minimal interruption to production, achieving Mean Time To Repair (MTTR) of under 5 minutes for trained personnel .
