Product Overview

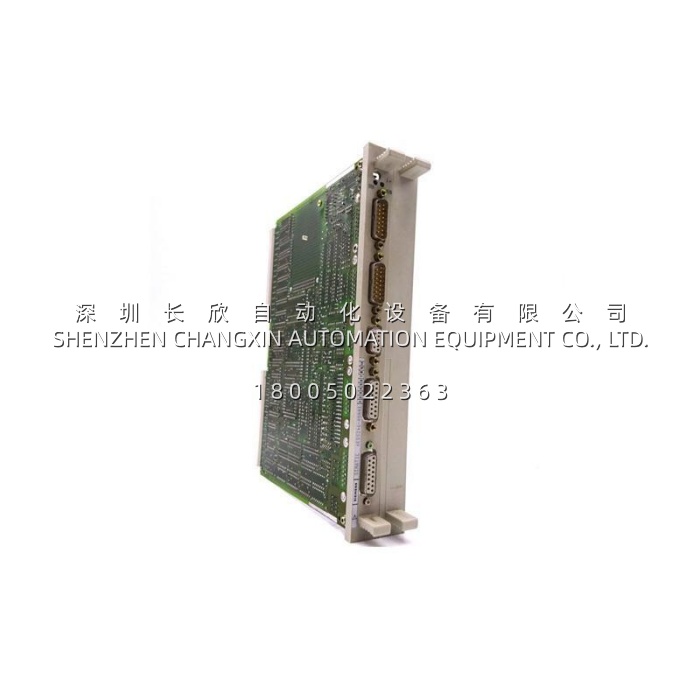

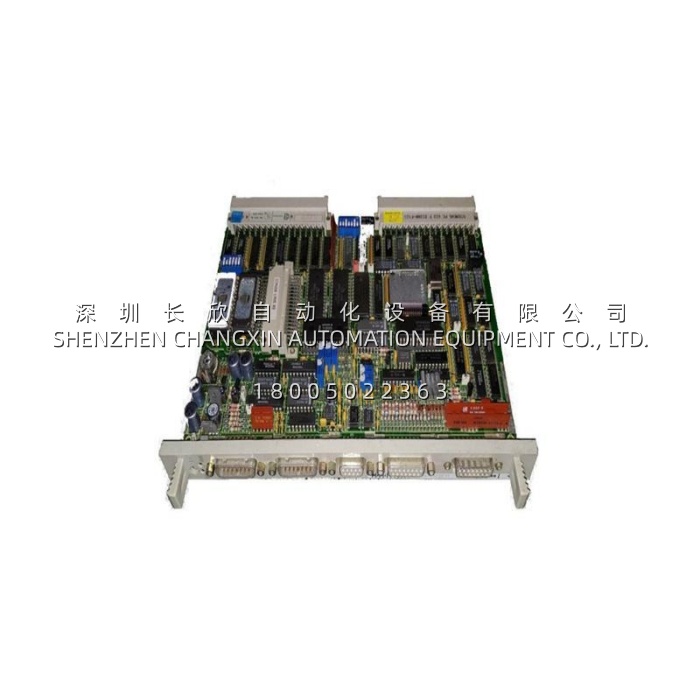

The Siemens 6ES5246-4UA41 is an intelligent positioning module (IP 246 I) belonging to the world-renowned SIMATIC S5 programmable logic controller family, purpose-engineered to deliver high-precision closed-loop motion control for DC drives equipped with incremental encoders. As a member of Siemens’ IP246 family of “smart” function modules, the Siemens 6ES5246-4UA41 is not a passive I/O card—it contains its own on-board processor that executes positioning algorithms independently, freeing the main S5 CPU from the computationally intensive task of real-time axis control. This architecture makes the Siemens 6ES5246-4UA41 an exceptionally valuable component in applications where one or more feed axes must be controlled with deterministic precision while the central controller focuses on sequence logic, interlocks, and higher-level coordination.

The defining characteristic of the Siemens 6ES5246-4UA41 is its self-ventilated construction, which integrates a dedicated cooling mechanism directly within the module housing. This self-ventilation capability distinguishes the 4UA41 from its non-ventilated siblings and enables the module to sustain continuous operation even under demanding thermal conditions within industrial control cabinets. The Siemens 6ES5246-4UA41 accepts feedback from incremental encoders, processes the high-frequency pulse train through its internal counter logic, and generates the appropriate control signals—whether ±10V analog command for DC servo amplifiers or pulse/direction output for stepper and modern servo interfaces—to drive the connected axis to its target position with microscopic accuracy. With a typical module weight of approximately 0.622 kg and compliance with IP20 protection standards, the Siemens 6ES5246-4UA41 is designed exclusively for installation within industrial control enclosures.

Compatible with the S5-115U (CPU 941–944), S5-135U (CPU 922/928), S5-150U, and S5-155U (CPU 946/947) controller families, the Siemens 6ES5246-4UA41 plugs directly into a designated slot in the S5 central or expansion rack, drawing its 24V DC operating power from the backplane bus. Configuration and commissioning are accomplished through Siemens’ venerable STEP 5 engineering environment, utilizing specialized function blocks such as FB164 for runtime monitoring and FB165 for parameter assignment, supported by the COM246 project software. Although the entire SIMATIC S5 platform—including the Siemens 6ES5246-4UA41—has been officially discontinued by Siemens, it remains a mission-critical component in countless operational motion control systems worldwide, where the cost and risk of migrating to contemporary drive platforms cannot be easily justified. For facility managers responsible for sustaining legacy S5-based automation assets, the Siemens 6ES5246-4UA41 represents a lifeline: a tested, warrantable spare part that can be installed into an existing rack to restore full positioning functionality with minimal engineering effort.

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	6ES5246-4UA41 (6ES5 246-4UA41)
Manufacturer	Siemens AG
Product Type	Intelligent Positioning Module (IP 246 I)
Series	SIMATIC S5 › IP 246 I
Core Function	Closed-loop positioning for DC drives with incremental encoder feedback
Encoder Interface	Incremental encoder
Cooling Method	Self-ventilated (integrated fan)
Compatible Controllers	S5-115U (CPU 941–944), S5-135U (CPU 922/928), S5-150U, S5-155U (CPU 946/947)
Rack Installation	Plugs into S5 central or expansion rack slot
Operating Voltage	24V DC (via S5 backplane bus)
Configuration Software	COM246 with function blocks FB164 (monitoring) and FB165 (parameterization)
Programming Environment	STEP 5
Weight	Approx. 0.622 kg
Commodity Code	85389091
Protection Class	IP20 (control cabinet installation required)
Product Status	Discontinued (Siemens official EOL) – available as spare part
Typical Warranty	12–24 months (from specialized suppliers)

Main Features and Advantages

The Siemens 6ES5246-4UA41 delivers an exceptional combination of autonomous motion control intelligence, integration density, and field-proven reliability that continues to make it the preferred positioning solution for legacy SIMATIC S5 automation systems. Its design philosophy centers on offloading real-time motion control from the main PLC CPU, and this objective is achieved with remarkable sophistication.

Autonomous On-Board Motion Control Intelligence:

The most distinctive advantage of the Siemens 6ES5246-4UA41 is its status as an intelligent processor module. Unlike passive I/O cards that merely relay signals, the Siemens 6ES5246-4UA41 contains its own dedicated processor executing closed-loop positioning algorithms entirely within the module. The main S5 CPU simply issues high-level commands such as “move to position X” or “execute referencing sequence,” and the Siemens 6ES5246-4UA41 autonomously handles acceleration ramp generation, deceleration profiling, creep-speed approach, encoder feedback correction, and arrival confirmation. This division of labor dramatically reduces the scan-cycle burden on the central controller, enabling a single S5-155U to coordinate multiple positioning axes simultaneously without performance degradation.

Incremental Encoder Compatibility for High-Resolution Feedback:

The Siemens 6ES5246-4UA41 is engineered to interface directly with incremental encoders, the dominant feedback technology for industrial DC servo and stepper drive systems. By processing the quadrature pulse train from the encoder, the Siemens 6ES5246-4UA41 achieves the fine positional resolution required for precision machining, registration control, and synchronized multi-axis motion. This incremental encoder compatibility ensures that the Siemens 6ES5246-4UA41 can be deployed across a vast installed base of existing machinery without requiring feedback device upgrades.

Self-Ventilated Design for Continuous Duty:

A critical differentiator of the Siemens 6ES5246-4UA41 within the IP246 family is its integrated self-ventilation system. The on-board cooling fan ensures that the module’s internal electronics—particularly the high-frequency counter circuits and the motion control processor—operate within optimal thermal limits even during prolonged, intensive positioning cycles. This self-ventilated architecture makes the Siemens 6ES5246-4UA41 ideally suited for applications with high duty cycles, elevated cabinet temperatures, or limited ambient airflow, where a non-ventilated module would suffer from thermal drift and reduced reliability.

Seamless Integration into SIMATIC S5 Architecture:

The Siemens 6ES5246-4UA41 plugs directly into a standard S5 rack slot and draws its 24V DC operating power from the backplane bus, eliminating the need for separate power wiring or external interface hardware. This plug-and-play integration means that the Siemens 6ES5246-4UA41 can be installed alongside digital I/O modules, analog modules, communication processors, and other IP-class intelligent function modules within the same rack, creating a cohesive, tightly-coupled control system. The module’s compatibility with S5-115U, S5-135U, S5-150U, and S5-155U controllers ensures that it can be deployed across virtually the entire upper tier of the SIMATIC S5 product range.
