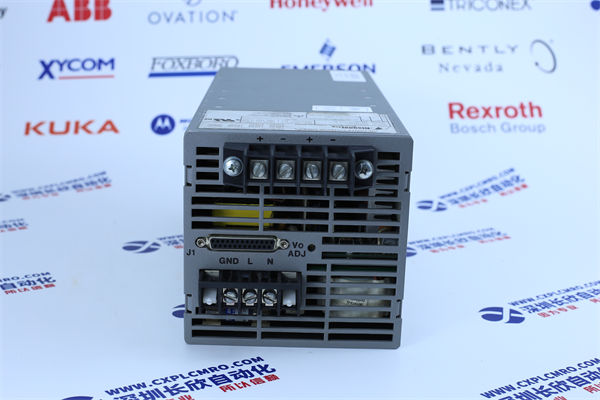

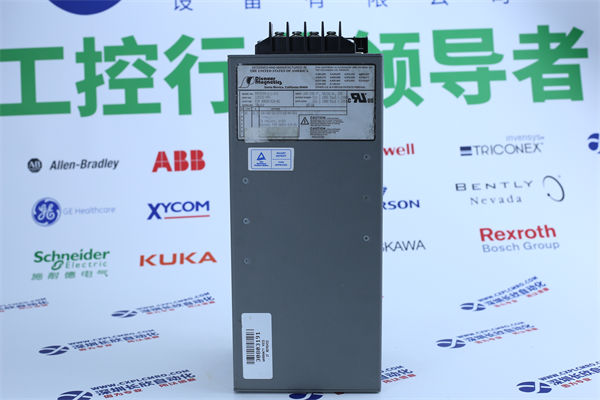

PIONEER MAGNETICS + PM3328B-6-1-3-E
Product Description
The PIONEER MAGNETICS + PM3328B-6-1-3-E Module is a high-performance, single-output DC-DC converter module designed for use in a wide range of industrial and commercial applications. It features a wide input voltage range, high efficiency, and excellent thermal performance, making it ideal for use in demanding environments.
Product Features
- Wide input voltage range: 18-36VDC
- High efficiency: up to 96%
- Output voltage: 12VDC
- Output current: 6A
- Output power: 72W
- Over-current protection
- Over-voltage protection
- Short-circuit protection
- Under-voltage lockout
- Remote on/off control
- Low profile design
Specifications
- Input Voltage Range: 18-36VDC
- Output Voltage: 12VDC
- Output Current: 6A
- Output Power: 72W
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Cooling: Convection
- Dimensions: 2.44″ x 1.00″ x 0.38″ (62mm x 25mm x 9.7mm)
- Weight: 1.4 oz (39.7 g)
