GE IC693PWR321

Product Description:

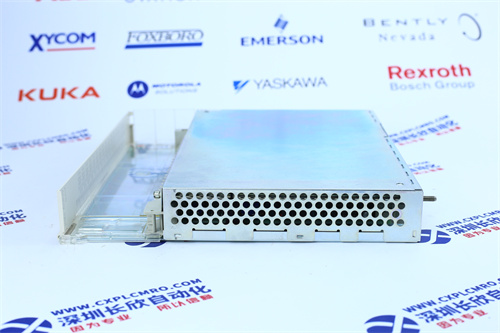

The GE IC693PWR321 module is a 30-watt power supply module for the GE Fanuc 90-30 series programmable logic controllers (PLCS). It is designed to provide a reliable power source for PLCS.

Product parameters:

Model: IC693PWR321
Input voltage range: 120/240 V AC or 125 V DC
Input current: 1.25A (120 volts) / 0.625A (240 volts) / 1.0A (125 volts)
Maximum inrush current: 2.5A (120 volts) / 1.25A (240 volts) / 1.5A (125 volts)
Rated power: 30 W
Output voltage: +5 V DC
Output current: 1.5A
Output overvoltage protection: internal
Output overload protection: internal
Power consumption: 3 + (1.5x output current)
Warning output: 1 NC 24 V power supply failure
Local signal indicator: 1 LED (green) (Power supply (PWR OK))
Mark: CE
Module classification: Standard
Net weight: 0.2 kg
Specifications:

Interface: DIN rail
Certification: CE
Applications:

The GE IC693PWR321 module can be used in a variety of industrial applications, including:

Machine building
package
automate
electricity
