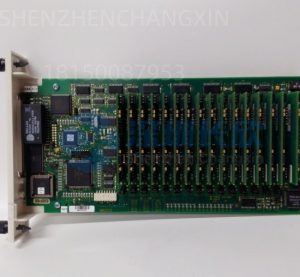

The ABB Bailey SPASI23 is a high-performance, 16-channel analog input module manufactured by ABB, forming a critical component within the Bailey and Symphony Plus distributed control system (DCS) families. This versatile module serves as the primary interface for a wide array of analog field sensors, converting real-world physical measurements into precise digital data for process monitoring and control.
Application Scenarios:
In a modern combined-cycle power plant, the control system must continuously and accurately monitor hundreds of critical temperatures, pressures, and flows to ensure safe, efficient operation. Thermocouples embedded in gas turbine blades, RTDs on bearing housings, and 4-20mA transmitters on feedwater lines all generate low-level analog signals vulnerable to electrical noise. The ABB Bailey SPASI23 is deployed in remote I/O cabinets throughout the plant, acting as the first line of defense. Its key value lies in its high channel density and robust 1500Vrms isolation, which allows it to gather signals from 16 different sensors in a single slot while protecting the sensitive DCS electronics from ground loops and voltage transients induced by nearby high-power equipment. This directly addresses the core pain points of signal integrity, cabinet space optimization, and system reliability in electrically noisy environments.
Parameter:
Main Parameters
Value / Description
Product Model
SPASI23
Manufacturer
ABB (Bailey/Symphony Plus Series)
Product Category
Analog Input Module
Number of Channels
16 individually configurable channels
Supported Input Types
Thermocouples (TC), Millivolts (mV), RTDs, High-Level Voltage/Current (e.g., 0-10V, 4-20mA)
Accuracy
±0.1% of Full Scale (FS) – Ensures high-fidelity measurement
Isolation Voltage
1500 Vrms (Channel-to-Channel & Channel-to-System) – Critical for noise immunity and safety
Conversion Time
250 µs (typical) – Enables fast response for dynamic processes
Operating Temperature Range
-40°C to +85°C – Ruggedized for extreme industrial environments
Power Supply
24V DC (typical for DCS I/O systems)
Communication Interface
Proprietary high-speed bus to Symphony Plus controller
Configuration
Software-configurable per channel via engineering workstation
Certifications
CE, UL, RoHS (typical for industrial automation)
Technical Principles and Innovative Values:
Innovation Point 1: Universal, Software-Configurable Signal Conditioning. Unlike modules dedicated to a single signal type, the SPASI23 incorporates advanced, programmable signal conditioning circuits. This allows each of its 16 channels to be independently configured via software for thermocouple type (J, K, T, etc.), RTD (Pt100. Pt1000), voltage, or current input. This eliminates the need for external signal transducers and reduces spare part variety, offering unparalleled flexibility.
Innovation Point 2: Advanced Diagnostic and Hot-Swap Capability. The module features continuous self-diagnostics, monitoring for wire breaks, out-of-range signals, and internal hardware faults. Status is communicated in real-time to the control system for predictive maintenance. Furthermore, it supports hot-swap replacement in redundant systems, allowing a failed module to be exchanged without shutting down the process, which is critical for plant availability.
Innovation Point 3: High-Density Design with Superior Noise Immunity. Packing 16 isolated channels into a compact module was a significant achievement. The design employs sophisticated filtering and 1500Vrms galvanic isolation to achieve a high common-mode rejection ratio (CMRR). This ensures accurate measurement even when sensors are located hundreds of meters away in areas saturated with electromagnetic interference from motors and switchgear, a common challenge in heavy industry.
Application Cases and Industry Value:
A major petrochemical complex in the Middle East was experiencing intermittent fluctuations in reactor temperature readings, leading to conservative (and less efficient) control and occasional false alarms. The issue was traced to older analog input cards that were susceptible to noise from newly installed variable frequency drives (VFDs). The plant standardized on the ABB Bailey SPASI23 module for a plant-wide DCS upgrade. The lead instrumentation engineer reported: “The SPASI23 modules were a game-changer. The software configuration let us standardize all temperature inputs across units, and the built-in isolation completely eliminated the noise issue. We’ve seen a 99.9% signal validity rate since installation. More importantly, the confidence in our measurement data allowed us to optimize reactor control loops, improving yield by approximately 2% and significantly reducing alarm floods.” This case underscores the module’s direct contribution to operational efficiency, product quality, and overall asset reliability.
Related Product Combination Solutions:
ABB SPASO23: Analog output module, used in conjunction with the SPASI23 to form complete control loops, sending commands to valves and actuators.
ABB SPDI23 / SPDO23: Digital input and output modules for handling discrete signals (e.g., pump run status, solenoid valve commands) alongside the analog signals processed by the SPASI23.
ABB SPCJ23: A communication interface module that can be used to network I/O racks containing SPASI23 modules or connect to higher-level systems.
ABB IMASI23: The predecessor module in the older Bailey Infi 90 system; the SPASI23 is its modern equivalent in the Symphony Plus line, offering enhanced performance.
ABB CI854: A PROFINET communication module that can be paired with a controller using SPASI23 modules to enable seamless integration into modern industrial Ethernet networks.
ABB Harmony/Advant Controller Rack: The physical hardware platform (e.g., an HPC800 rack) that houses and provides power and communication to the SPASI23 modules.
ABB Symphony Plus Engineering Studio: The software environment used to configure, scale, and integrate every channel of the SPASI23 into the overall plant control strategy.
Installation, Maintenance, and Full-Cycle Support:
Installation of the ABB Bailey SPASI23 module should be performed by qualified personnel following ABB’s guidelines and local electrical codes. The module is designed for easy insertion into its designated slot on the Symphony Plus I/O carrier. Prior to installation, ensure the carrier’s power is off. Key steps include verifying the module’s firmware compatibility with the system software, securely connecting the field wiring to the appropriate terminal base unit (often a TBS 23 series), and ensuring proper grounding to maximize noise immunity. During commissioning, each channel must be configured within the Symphony Plus Engineering Studio software, where the sensor type, engineering units, and alarm limits are defined.
Routine maintenance is minimal due to the module’s solid-state design. Primary tasks involve ensuring the control cabinet environment remains clean and within the specified temperature and humidity ranges. Periodically reviewing system diagnostics and event logs for any warnings related to the SPASI23 channels is a recommended best practice. The module’s front-panel LEDs provide immediate visual status. If a module fault is indicated, the hot-swap capability allows for replacement without a process shutdown in redundant configurations, following the documented procedure to ensure a smooth transition.
We provide comprehensive lifecycle support for the ABB Bailey SPASI23. Our service begins with technical consultation to confirm the exact module revision and compatibility with your specific DCS hardware and software versions. We supply 100% genuine, factory-fresh ABB components with full traceability and warranty. Our support extends to providing configuration file assistance, access to original technical manuals, and performance optimization advice. We understand this module is often a critical component in long-lifecycle process plants, and our commitment is to ensure you have reliable access to it and the expertise needed to maintain peak system performance.
Contact us today for a customized solution and to secure your genuine ABB Bailey SPASI23 modules for reliable process measurement and control.
