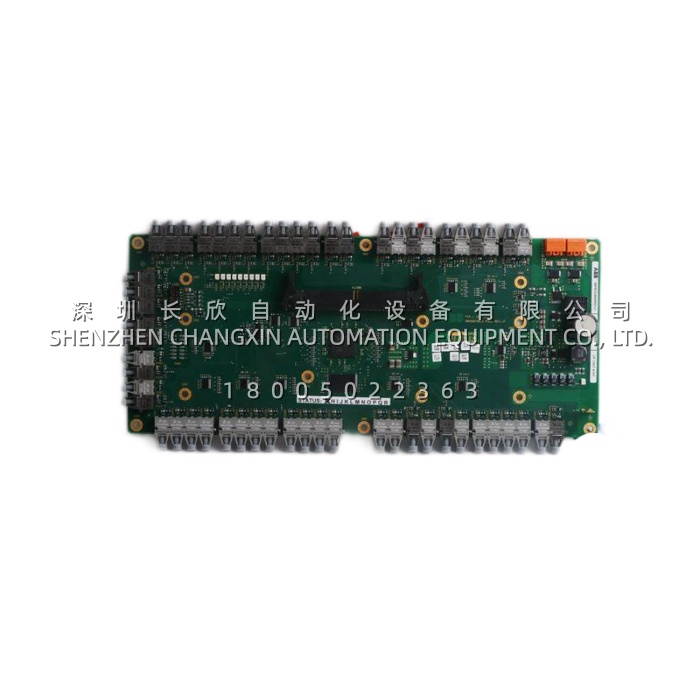

Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 83SR04D-E |
| Order Code | GJR2390200R1210 |
| Manufacturer | ABB |
| Product Type | Procontrol P14 Channel Control Card (Binary & Analog Unit Controller) |
| Series | Procontrol P14 / Symphony Harmony SR04 |
| Supply Voltage | 24 V DC (18–32 V DC operating range) |
| Current Consumption | ≈145 mA @ 24 V DC (excluding load outputs) |
| Power Dissipation | Typical 3.5 W, maximum 8 W |
| Function Units | 4 independent configurable units (binary drive/group control or 3-step analog control) |
| Output Type | Relay contact outputs with short-circuit protection |
| Relay Contact Life | ≥ 20,000,000 switching cycles |
| Output Load Capacity | Maximum 2 A per channel |
| Response Time | ≤ 5 ms (output status switching) |
| Processor | 32-bit microprocessor |
| Backplane Bus Interface | 48-pin DIN 41612 connector (X11) for station bus + power |
| Process Interface | 32-pin X21 connector for field I/O |
| Isolation | 500 V DC between channels and channel-to-system side |
| Operating Temperature | -20°C to +60°C (some references up to +70°C) |
| Storage Temperature | -40°C to +85°C |
| Safety Rating | SIL3 capable (IEC 61508) |
| Dimensions (H×W×D) | ≈261 mm × 20 mm × 198 mm |
| Weight | ≈0.55 kg |
| Certifications | CE, UL |
| Product Status | Discontinued by ABB; available as surplus/refurbished spare |
| Origin | Sweden |
Main Features and Advantages
Autonomous distributed control: The ABB 83SR04D-E integrates its own 32-bit microprocessor, enabling it to execute predefined function blocks and local control loops independently of the central CPU. This autonomy improves system reliability and response speed, ensuring that critical drive-level actions—such as motor starting, valve sequencing, and emergency interlocks—continue without latency introduced by higher-level controller polling.
Four independent configurable function units: Each of the four function units on the ABB 83SR04D-E can be individually configured for binary control, three-step analog positioning, or signal conditioning. This flexibility allows a single card to manage up to four separate actuators—be it motor starters, solenoid valves, or analog positioning drives—with mixed control strategies running concurrently.
High-reliability relay outputs: The ABB 83SR04D-E delivers relay contact outputs with built-in short-circuit and overload protection, rated for a contact life of ≥20,000,000 switching cycles at a maximum 2 A load per channel. The 500 V DC isolation between channels and between channels and the system side protects the module from ground faults and voltage transients common in aging power plant and chemical facility installations.
SIL3 safety capability: Designed to comply with IEC 61508 SIL3 standards, the ABB 83SR04D-E is suitable for safety-critical circuits including turbine emergency trip, fire-safe valve shutoff, and process shutdown interlocks. This makes the ABB 83SR04D-E a trusted component in applications where functional safety is non-negotiable.
Automatic slot addressing: When plugged into a Procontrol P14 MPPS rack, the ABB 83SR04D-E automatically recognizes its station address without manual DIP-switch configuration. This eliminates addressing errors during maintenance and allows rapid hot replacement with zero system restart.
Non-volatile program retention: The ABB 83SR04D-E stores firmware in EPROM and user programs, parameters, and limit values in EEPROM, ensuring that configuration survives power loss and is immediately active upon restoration. Runtime data is handled in RAM for high-speed access, with a 512 kB non-volatile EEPROM supporting online download and modification of application logic.
Onboard diagnostics and status visibility: The ABB 83SR04D-E features panel LEDs for operation (ST), internal fault (SG), and per-channel status indication. Combined with remote diagnostic registers that report short-circuit, open-circuit, blown-fuse, and redundant-synchronization faults, the module dramatically reduces mean time to repair.
Backward compatibility and upgrade path: As the hardware-revised successor to the 83SR04A-E, the ABB 83SR04D-E drops into existing Procontrol P14 racks without architectural changes, giving plant engineers a qualified upgrade route that preserves prior investment in wiring, cabinets, and engineering documentation.
