Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

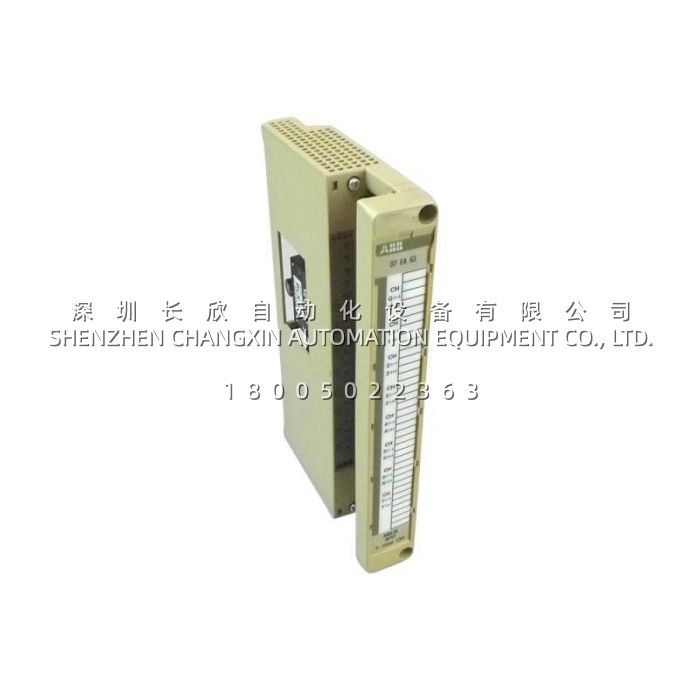

| Product Model | 07EA63R1 (GJV3074353R1) |
| Manufacturer | ABB |
| Product Type | Analog Input Module |
| System Compatibility | Procontic T200, Symphony DCI System Six |
| Input Channels | 8 or 16 (depending on configuration) |
| Signal Type | 4-20 mA, 0-10V, ±10V |
| Resolution | 12-bit |
| Accuracy | ±0.1% to ±0.01% (full range) |
| Transmitter Supply | Integrated (overload and short-circuit proof) |
| Electrical Isolation | Channel-wise to Symphony system |
| Communication | CS31 System Bus, Modbus RTU |
| Redundancy Support | Capable of redundant operation |
| Operating Voltage | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Mounting | DIN Rail |
Main Features and Advantages
The ABB 07EA63R1 offers a compelling combination of features that make it an ideal choice for demanding process control applications. Its most prominent advantage is the high-precision data acquisition capability. With a 12-bit resolution and exceptional accuracy of up to ±0.01%, the GJV3074353R1 ensures that even the most subtle changes in process variables are captured reliably, enabling precise control and reducing the risk of costly errors .
Another standout feature of the ABB 07EA63R1 is its integrated transmitter supply. The module provides an overload and short-circuit-proof power supply for 2-wire transmitters, simplifying field wiring and reducing the need for external power sources . This design, combined with the module’s support for both 4-20 mA current and voltage signals, offers significant flexibility in connecting to various sensors and instrumentation .
The ABB 07EA63R1 also incorporates robust diagnostic and protection mechanisms to ensure long-term reliability. It features channel-wise electrical isolation to the Symphony system, which protects against ground loops and signal interference, preserving measurement integrity . Comprehensive monitoring functions continuously check for wire breaks and short circuits in connected transmitters, allowing for quick fault identification and minimizing system downtime . The module’s support for redundant operation further enhances system availability, making the GJV3074353R1 a highly reliable choice for mission-critical applications where continuous operation is paramount .
