1C31132G01

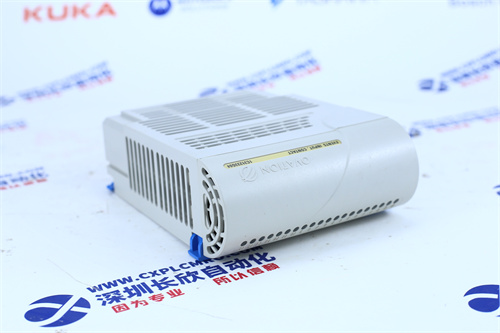

Westinghouse 1C31132G01 Analog Input Module
Product Description
The 1C31132G01 is a high-precision analog input module manufactured by Westinghouse, designed for use in industrial control systems such as the Ovation DCS and WDPF (Westinghouse Distributed Processing Family). Its primary function is to convert continuous analog signals from field sensors (e.g., temperature transmitters, pressure transducers, flow meters) into digital data that can be processed by the system controller. This module is widely applied in industries including power generation (steam turbine temperature monitoring), chemical processing (reactor pressure measurement), and water treatment (flow rate detection), where accurate and reliable signal acquisition is critical for process control and safety.
Featuring 8 independent input channels, the 1C31132G01 can simultaneously collect multiple analog signals, providing comprehensive real-time data on industrial processes. Each channel is individually configurable to support various signal types, allowing flexibility in connecting to different sensors without additional signal conditioning hardware. The module incorporates advanced signal filtering and isolation technologies to minimize the impact of electromagnetic interference (EMI) and noise common in industrial environments, ensuring measurement accuracy even in harsh conditions.
It integrates seamlessly with Westinghouse control systems via a backplane interface, enabling high-speed data transmission to the controller. The module includes built-in diagnostic functions to monitor channel health, detect faults such as sensor 断线 or overrange signals, and report anomalies to the controller for operator alerts. Its rugged design ensures stable performance across a wide temperature range and under mechanical vibration, making it suitable for long-term operation in demanding industrial settings. Additionally, it supports hot-swapping, allowing for replacement during system operation to reduce maintenance downtime.
Product Parameters
- Electrical Parameters:
- Input Signal Types: Configurable per channel: 4-20 mA DC, 0-10 V DC, 1-5 V DC, thermocouples (J, K, T, E), RTDs (Pt100)
- Input Range:
- 4-20 mA DC (nominal), 0-24 mA DC (maximum)
- 0-10 V DC (nominal), -10 to +10 V DC (maximum)
- Isolation: 1500 V AC (channel-to-channel and channel-to-backplane, 1 minute)
- Accuracy: ±0.1% of full scale (for 4-20 mA and voltage signals at 25°C)
- Resolution: 16-bit A/D conversion
- Performance Parameters:
- Number of Channels: 8 isolated analog inputs
- Sampling Rate: 10 samples per second per channel
- Response Time: ≤100 ms (90% settling time for step input)
- Common Mode Rejection Ratio (CMRR): ≥100 dB at 50/60 Hz
- Power Requirements:
- Operating Voltage: 5 V DC (from system backplane)
- Power Consumption: Typically 3 W
Product Specifications
- Dimensions: 160 mm × 100 mm × 30 mm (length × width × height)
- Weight: Approximately 250 grams
- Mounting: Installs in Westinghouse standard rack enclosures via backplane connectors and securing clips
- Environmental Ratings:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration Resistance: 10 Hz to 500 Hz, 5 g acceleration (per IEC 60068-2-6)
- Shock Resistance: 25 g acceleration for 11 ms (half-sine wave, per IEC 60068-2-27)
- Indicators:
- Power LED (Green): Illuminates when the module is properly powered
- Channel Status LEDs (Yellow): Light up for each active channel, indicating valid signal reception
