1746-HSCE AB

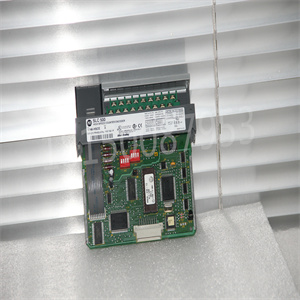

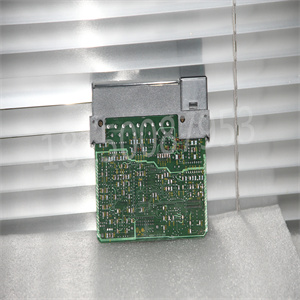

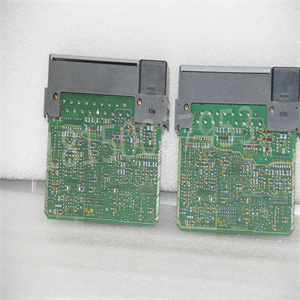

The AB 1746-HSCE is a digital High Speed Counter/Encoder module manufactured by Allen-Bradley. It is designed to monitor high-speed pulse signals and provides accurate counting and positional feedback in industrial applications.
The module supports various input types, including single-ended or differential quadrature signals, and provides a high level of noise immunity. It has four input channels that can be configured for different counting modes, such as frequency measurement, pulse counting, or position tracking.
The AB 1746-HSCE module offers a wide counting range and high-speed counting capabilities, making it suitable for applications that require rapid and precise measurement of pulse signals, such as speed monitoring, position control, or motion detection.
Ge Fanus Series Six PLC IC600LX605L
GE FANUC IC600CP620 NSFP IC600CP620
GE FANUC IC600YB804A IC600YB804
GE FANUC IC600YB811A IC600YB811 IC600YB811C B
GE FANUC IC600CB517 USPP IC600CB517
GE FANUC SERIES SIX IC600CB526N IC600CB526
GE Fanuc IC600YB942B IC600YB942
GE FANUC IC600FP500K USPP IC600FP500K
GE Fanuc IC600CB516A IC600CB516
The module has the following product information and parameters:
- Input type: Single-ended or differential inputs
- Input voltage range: 5V DC to 24V DC
- Input frequency range: 0 to 50 kHz
- Counting speed: Up to 50 kHz
- Counting modes: Up, down, up/down, pulse catch, and quadrature
- Counting range: 32-bit signed integer (-2,147,483,648 to 2,147,483,647)
- Output type: Solid-state relay (SSR) or transistor
- Output voltage range: 5V DC to 265V AC/DC
- Output current range: 0.5A to 5A
- Isolation voltage: 1500V AC between input, output, and power supply
- Operating temperature range: 0°C to 60°C
- Dimensions: 118mm x 35mm x 87mm (4.65in x 1.38in x 3.43in)
- Weight: 150g (0.33lb)
