Description

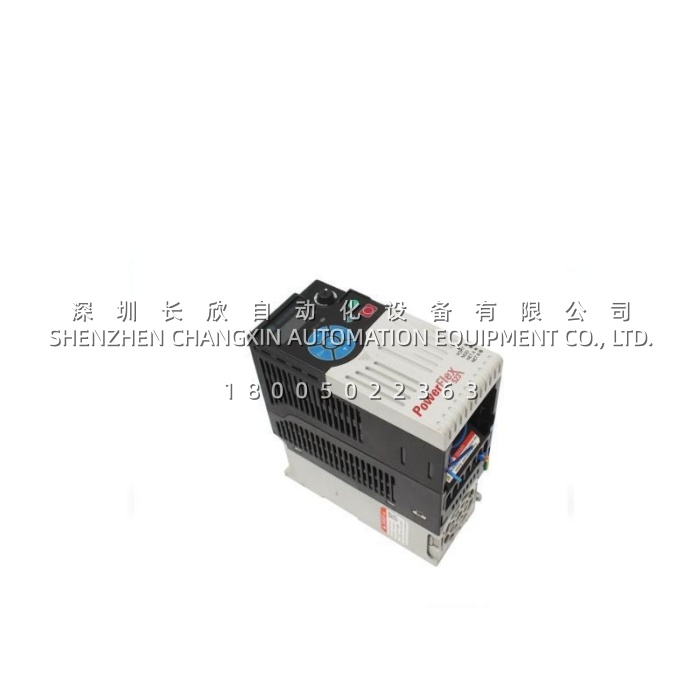

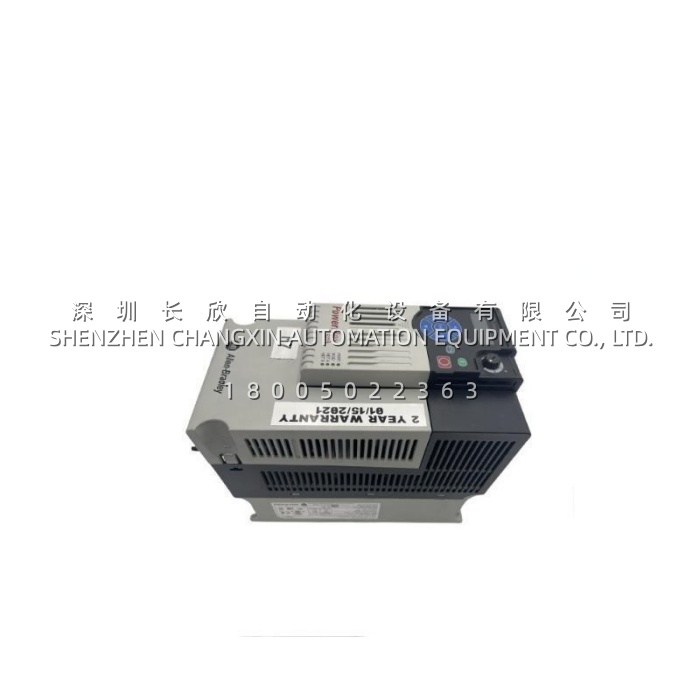

The Allen‑Bradley 25A‑D017N104 is a PowerFlex 523 series AC drive from Rockwell Automation, designed for cost‑effective, general‑purpose motor control in standalone machine applications. This 7.5 kW (10 HP) drive operates on a 380‑480V AC, three‑phase input and delivers 17 Amps of output current, featuring a compact Frame C, IP20 / NEMA Open Type enclosure with no built‑in EMC filter. With an innovative modular design and support for USB programming, the 25A‑D017N104 simplifies installation, configuration, and commissioning, making it an excellent choice for OEMs and machine builders seeking a balance of performance and affordability.
Application Scenarios
In a packaging machinery plant, an OEM was seeking a reliable and easy‑to‑configure drive for a new line of pallet wrappers. The Allen‑Bradley 25A‑D017N104 was selected for its integrated RS‑485/DSI port, allowing simple multi‑drop networking via Modbus, and its full numeric HIM that enabled operators to quickly adjust speed and torque parameters on the shop floor. With its ability to run in ambient temperatures up to 50°C (and up to 70°C with derating), the drive performed reliably even when installed in a non‑air‑conditioned panel. For engineers tasked with developing standalone machines where quick startup and minimal wiring are critical, the 25A‑D017N104 addresses the core pain points of configuration complexity and installation space constraints.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 25A‑D017N104 |
| Manufacturer | Allen‑Bradley / Rockwell Automation |
| Product Category | AC Drive / Variable Frequency Drive (VFD) |
| Input Voltage | 380‑480V AC, 3‑Phase (–15%, +10%) |
| Output Current | 17 Amps |
| Motor Power (Normal Duty) | 7.5 kW / 10 HP |
| Motor Power (Heavy Duty) | 7.5 kW / 10 HP (same rating for this model) |
| Output Frequency | 0‑500 Hz (max) |
| Control Modes | Volts per Hertz, Sensorless Vector Control, Sensorless Vector with Economizer |
| I/O | 1 Analog Input, 5 Digital Inputs, 1 Analog Output, 1 Relay Output |
| Communication | RS‑485/DSI (Modbus RTU support), USB programming port |
| Dimensions (H×W×D) | 220 × 109 × 184 mm |
| Enclosure | IP20 / NEMA Open Type, No EMC Filter |
Technical Principles and Innovative Values
Innovation Point 1: Removable Control Core for Streamlined Commissioning
The 25A‑D017N104 features a modular design where the control module can be detached from the power module. This allows engineers to pre‑configure the drive’s parameters—using the USB port and Connected Components Workbench software—at a workbench, while the power module is being installed in the cabinet. This parallel workflow significantly reduces machine startup time.
Innovation Point 2: Sensorless Vector Control with Economizer Mode
Beyond basic Volts per Hertz control, the supports Sensorless Vector Control, providing superior torque regulation even without an encoder. The Economizer mode automatically optimizes motor flux to reduce energy consumption under light loads, an innovation that helps meet IEC 61800‑9‑2 IE2 efficiency standards and reduces operating costs for continuous‑run applications.
Innovation Point 3: Integrated USB Programming and AppView Customization
The includes a standard USB port for direct connection to a laptop, eliminating the need for proprietary adapters. The AppView and CustomView tools offer application‑specific parameter groupings (e.g., for fans, pumps, conveyors) that simplify configuration for non‑expert users. These views allow users to hide unnecessary parameters, reducing setup time and minimizing commissioning errors.
Innovation Point 4: High Ambient Temperature Tolerance and Compact Mounting
The is engineered for flexible installation. It supports side‑by‑side mounting with only 50 mm airflow gap at the top and bottom—narrower than many competing drives. It operates at 50°C without derating and up to 70°C with a control module fan kit, making it suitable for harsh, space‑constrained panels.
