Application Scenarios
A chemical plant’s reactor temperature control system used an SLC 5/04 processor to monitor four critical process points. The existing analog input module’s insufficient resolution caused temperature reading fluctuations that disrupted PID loop stability. The engineering team replaced the module with an Allen-Bradley 1746-NI4, leveraging its 16-bit A/D converter to translate the 4-20 mA signals from the temperature transmitters into precise digital values.
During configuration, technicians set channels 0–3 to current input mode via the module’s onboard DIP switches. In RSLogix 500, words I:3.0 through I:3.3 corresponded to the four channels’ raw data words. For 4-20 mA mode, 4 mA corresponds to a raw count of 6241 and 20 mA to 31206 — a precise integer relationship critical for SCP scaling instructions. After the module replacement, the temperature control loop’s fluctuation range narrowed from ±2°C to within ±0.5°C, significantly improving product yield. This case demonstrates the Allen-Bradley 1746-NI4’s practical value in process control applications with elevated precision requirements.
Parameter

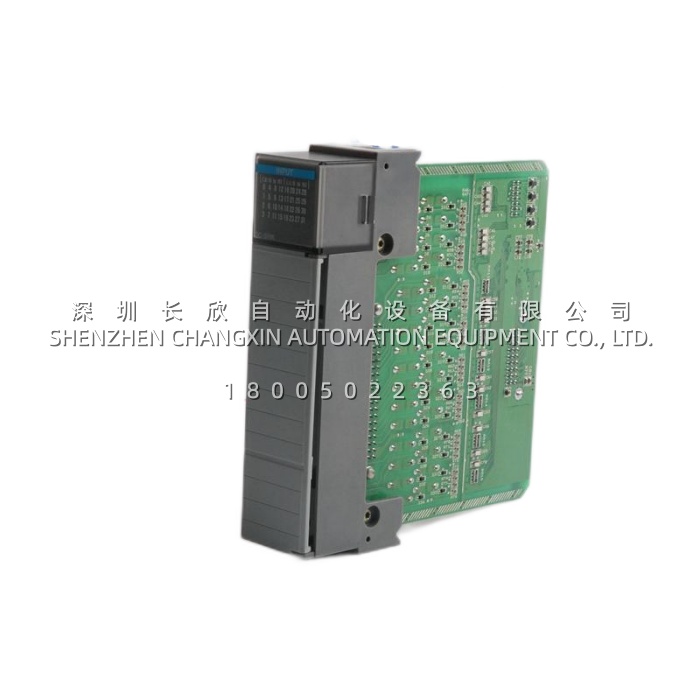

| Parameter | Value/Description |
|---|---|
| Product Model | Allen-Bradley 1746-NI4 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Category | Analog Input Module (4-Channel) |
| Number of Inputs | 4 channels |
| Input Type Selection | Per-channel DIP switch: voltage or current |
| Voltage Ranges | ±10V DC, 0-10V DC, 0-5V DC, 1-5V DC |
| Current Ranges | ±20 mA, 0-20 mA, 4-20 mA |
| A/D Resolution | 16-bit |
| Resolution (Voltage) | 305.176 µV/LSB |
| Resolution (Current) | 1.22070 µA/LSB |
| Step Response | 60 ms |
| Input Filter | 10 Hz (at 3 dB) |
| Backplane Current | 5V DC: 25 mA; 24V DC: 85 mA |
| Isolation | Channel-to-backplane DC-to-DC |
| Operating Temperature | 0°C to +60°C |
| Dimensions | Single-slot SLC 500 module |
| Lifecycle Status | Discontinued |
Technical Principles and Innovative Values
- Innovation Point 1: 16-bit high-resolution A/D conversion architecture. The Allen-Bradley 1746-NI4 employs a 16-bit analog-to-digital converter, achieving 305.176 µV/LSB resolution in ±10V range and 1.22 µA/LSB in current input mode. This resolution level significantly surpasses contemporaneous 12-bit analog modules, enabling the module to capture minute process signal variations for PID control loops requiring fine adjustment.
- Innovation Point 2: Per-channel independent voltage/current configurability. Each of the Allen-Bradley 1746-NI4’s four channels has an independent DIP switch, permitting mixed configuration of voltage input channels and current input channels on the same module. This flexibility eliminates the need to procure different module models for different sensor types, reducing inventory variety and system integration complexity. Each channel’s input range (such as ±10V, 0-10V, 4-20 mA, ±20 mA) can also be independently set in RSLogix 500 software.
- Innovation Point 3: Flexible scaling and data handling capability. The Allen-Bradley 1746-NI4 supports three data formats: Proportional Counts (default), Scaled-for-PID (0-16383), and 1746-NI4 Data Format. The Scaled-for-PID mode directly outputs data in a range compatible with the SLC PID instruction, eliminating additional scaling steps in programming. For applications requiring engineering unit display, the SCP (Scale with Parameters) instruction linearly maps raw counts to actual physical values.
