Application Scenarios
A natural gas pipeline compressor station uses a 1715 Redundant I/O System for its Emergency Shutdown (ESD) system. When pipeline pressure rises abnormally, the logic controller issues a shutdown command, and the 1715-OB8DE must de-energize the shutdown valve solenoid within milliseconds to cut fuel supply.
The fatal weakness of conventional I/O modules is this: if an output channel’s power switch fails shorted, the valve may fail to actuate when shutdown is required. The 1715-OB8DE’s dual safety design solves this pain point—each output channel uses a series-connected FET switch pair, and the module performs “stuck-on” and “stuck-off” self-tests every minute . During a real overpressure event, the ESD system triggered shutdown, and Channel 3 of the 1715-OB8DE de-energized the solenoid. The valve fully closed within 1.2 seconds. Post-event diagnostics showed that the channel’s eFuse absorbed a 4.8A inrush current (rated 1A) at the moment of switching, but the electronic fuse completed current limiting within 100μs, protecting the module while ensuring reliable valve actuation.
Parameter

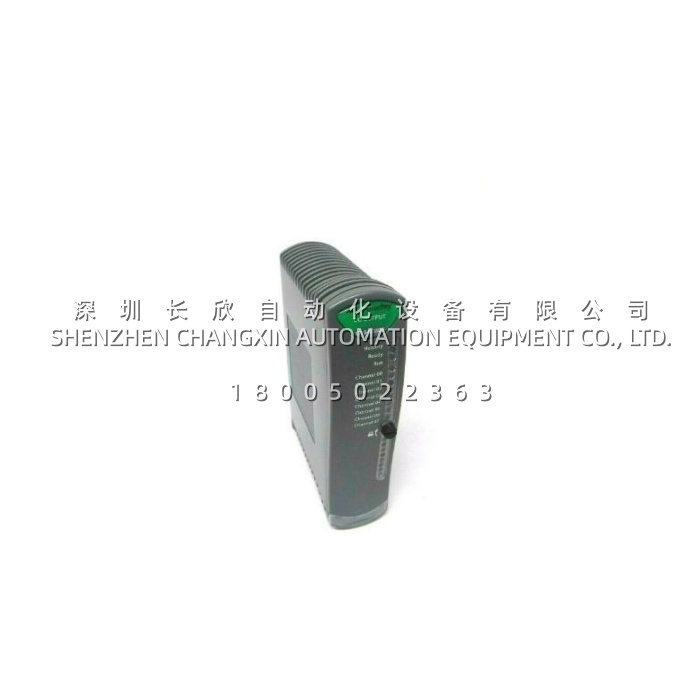

| Parameter | Value/Description |
|---|---|
| Product Model | 1715-OB8DE |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Category | Digital Output Module / Redundant I/O Component |
| Product Line | 1715 Redundant I/O System |
| Output Channels | 8 points, individually isolated |
| Output Type | 24V DC Sourcing (current-sourcing) |
| Output Signal | 1A @ 18–32V DC per output |
| Backplane Current | 165mA @ 24V DC |
| Power Dissipation | 3W maximum |
| Electronic Fusing (eFuse) | Integrated per channel, software-resettable |
| Diagnostic Features | Stuck-on/stuck-off testing, open-wire/short-circuit detection, output data echo |
| Operating Temperature | -25°C to +70°C |
| Dimensions (W×H×D) | 42 × 166 × 118 mm |
| Weight | Approx. 290g |
| Wire Size | 18–16 AWG shielded |
| Safety Certification | SIL 2 (IEC 61508) |
| Termination Assemblies | 1715-TASOB8DE (simplex) / 1715-TADOB8DE (duplex) |
| Country of Origin | Mexico |
Technical Principles and Innovative Values
- Innovation Point 1: Dual Series FET Switch Architecture with Real-Time Self-Testing. Each output channel is not a single power switch but a series-connected pair of independent FET switch groups. The module performs “stuck-on” and “stuck-off” tests approximately once per minute on each 1715-OB8DE module . This means a latent failure in one switch is masked by the other while simultaneously being captured by the self-test function—a dual safeguard of “fault tolerance” and “diagnostics” in functional safety design.
- Innovation Point 2: Programmable Electronic Fuse (eFuse) Replacing Physical Fuses. Each output of the 1715-OB8DE integrates an electronic fuse with a programmable fault current threshold. When an output shorts or overloads, the eFuse disconnects that channel within microseconds and reports the fault location . After the fault is cleared, engineers can remotely reset the channel via software—no need to visit the site to replace a physical fuse. For systems installed in remote compressor stations or offshore platforms, this capability reduces fault recovery time from hours to seconds.
- Innovation Point 3: Online Hot-Swap in Duplex Mode. In the 1715 redundant I/O system, two modules can be paired on a duplex termination assembly to form a fault-tolerant output configuration . The output switches of the two modules are paralleled and automatically share current. When one module fails and requires replacement, engineers can remove the faulty module and insert a new one during system operation, with the load continuing to be driven by the remaining module—the process is uninterrupted . This capability is essential for power plants, chemical plants, and other scenarios where downtime is not permitted.
