Product Overview

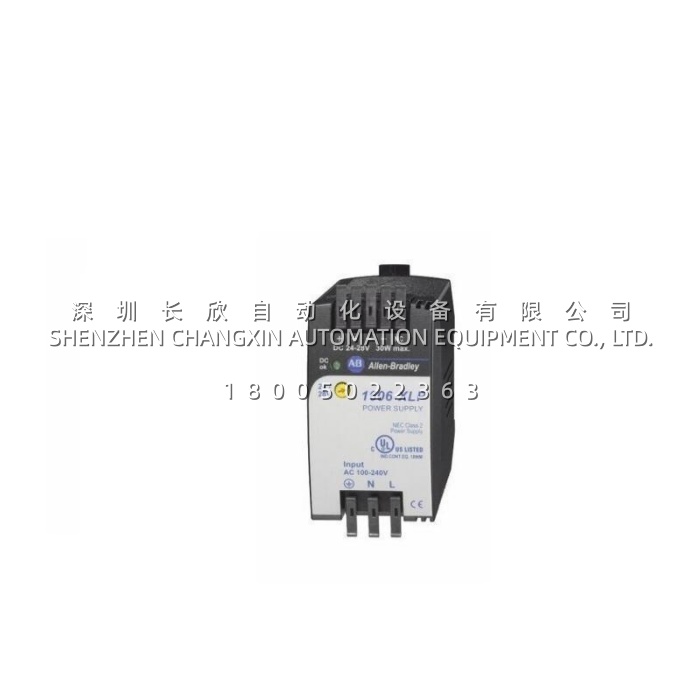

The Allen-Bradley 1606-XLP30E is a compact switched mode power supply from the Bulletin 1606-XLP series, engineered to deliver reliable 24V DC power in space-constrained industrial control panels. As part of Rockwell Automation‘s compact power supply family, the 1606-XLP30E provides 30 watts of output power at 24 to 28V DC with a maximum output current of 1.3 amps, making it ideal for low-power applications where panel space is at a premium . The 1606-XLP30E accepts a global input voltage range of 100 to 240V AC or 85 to 375V DC, enabling deployment across diverse electrical environments without configuration changes .
The 1606-XLP30E distinguishes itself through its compact form factor, measuring just 45mm wide by 75mm high by 91mm deep, and its DIN rail mounting capability that simplifies installation in standard control cabinets . The power supply features spring-clamp terminals for secure, tool-free wiring and includes a DC-OK signal for remote monitoring of output status . With an efficiency rating of 87.5% and a Mean Time Between Failures (MTBF) of 650,000 hours at 40°C, the 1606-XLP30E delivers dependable long-term performance with minimal heat generation and energy waste .
The 1606-XLP30E is certified for use in hazardous locations with Class I Division 2 rating, making it suitable for industrial environments where flammable gases or vapors may be present under abnormal conditions . This power supply is also used in redundant configurations within Allen-Bradley XM Electronic Overspeed Detection Systems (EODS), where two units provide backup power to ensure continuous operation even if one supply fails .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Switched Mode Power Supply (Compact Family) |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | 85–375V DC |
| Output Voltage | 24–28V DC (adjustable) |
| Output Power | 30W |
| Output Current | 1.3A maximum |
| Efficiency | 87.5% typical |
| Terminals | Screw / Spring Clamp |
| Mounting | DIN Rail (EN 60715 / EN 50022) |
| Operating Temperature | -10°C to +70°C |
| Protection Rating | IP20 |
| Special Certifications | Class I Division 2, NEC Class 2 |
Main Features and Advantages
Space-Saving Compact Design: The occupies minimal panel space with its 45mm width, making it an excellent choice for applications where saving critical space is a primary objective . This compact footprint allows engineers to maximize available cabinet space for other control components without compromising power delivery.
Global Input Voltage Compatibility: The accepts both AC and DC input voltages across a wide range—100 to 240V AC and 85 to 375V DC—meeting most worldwide single-phase requirements without the need for voltage selection jumpers or external transformers . This global compatibility simplifies inventory management and enables deployment across international installations.
High Reliability and Efficiency: With an MTBF rating of 650,000 hours and 87.5% efficiency, the delivers dependable operation with minimal energy loss and heat generation . The power supply includes output over-voltage protection and is short-circuit proof, safeguarding both the supply and connected equipment from fault conditions .
Parallel Operation for Redundancy: The supports parallel operation to achieve redundancy or higher output power . This capability is utilized in Allen-Bradley XM EODS systems, where dual power supplies provide independent, redundant power paths to ensure continuous operation .
