Product Overview

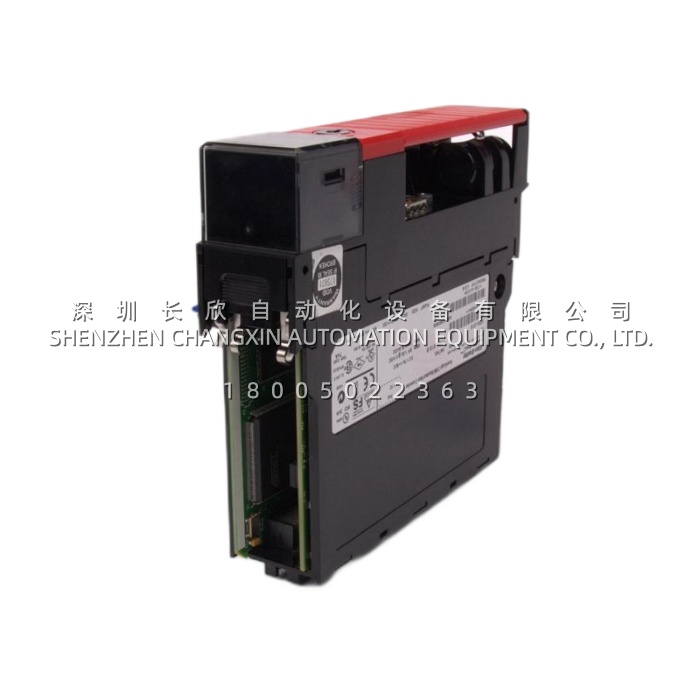

The 1407-CGCM is a Combination Generator Control Module (CGCM) manufactured by Allen-Bradley, a brand of Rockwell Automation. It is a microprocessor-based control and protection device designed to integrate excitation control, generator protection, synchronization, and full-featured metering into a single rugged, panel-mounted unit. The 1407-CGCM is engineered for direct integration with Rockwell’s Logix family of programmable controllers, particularly ControlLogix, where it appears on the network as a smart I/O module rather than a standalone relay.
The core value of the 1407-CGCM is consolidation. Traditionally, generator paralleling and protection required a separate automatic voltage regulator (AVR), a synchronizer, a protective relay, and a load-sharing controller, interconnected with extensive panel wiring. The 1407-CGCM replaces this collection with one module that performs high-speed voltage and frequency regulation locally while publishing all metering and diagnostic data to the Logix controller as native tags. This eliminates inter-panel wiring, removes latency from the control loop, and makes generator parameters available for data logging, remote monitoring, and complex load-sharing logic without gateways or custom drivers.
The module is intended for overvoltage Category II applications in industrial environments of pollution degree 2, per IEC 60664-1. It must be mounted vertically because of its internal heatsink; any other orientation reduces heat dissipation and risks premature failure. Designed and manufactured in the USA, the 1407-CGCM was officially discontinued on 31 December 2023, but Rockwell continues to classify it as repairable and replaceable — making tested surplus and refurbished units the practical supply channel for existing installations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1407-CGCM |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Type | Combination Generator Control Module (CGCM) |
| Compatible Platform | ControlLogix / Logix5000 family |
| Control Power Supply | 18–32 V DC (24 V DC nominal), max. burden 30 W |
| Generator Voltage Sensing | 57–208 V AC, ±0.2% accuracy (50/60 Hz) |
| Generator Current Sensing | 0–5 A AC, ±0.2%; 1 A or 5 A CT input, 3-phase + cross-current compensation |
| Bus Voltage Sensing | 57–208 V AC, <0.2% |
| Frequency Range | 10–90 Hz, ±0.05 Hz accuracy |
| Phase Angle Measurement | ±180°, ±1.0° |
| Field Voltage / Current | 0–200 V DC; 0–30 A, ±0.15 A or ±1.0% |
| Excitation Modes | AVR, FCR (manual / field current), PF, VAR |
| Synchronization | 1–2 breaker sync check (25) |
| Protection Functions | 27/59, 81O/U, 32, 40, 51V, OEL/UEL, V/Hz, loss-of-sensing |
| Communication | Redundant ControlNet (dual tap), RS-232 (peer redundancy), DB15 factory port |
| Physical Dimensions (W×H×D) | 247.7 × 355.6 × 209.6 mm (9.75 × 14 × 8.25 in) |
| Weight | Approx. 7.7 kg (17 lb) |
| Mounting | Vertical panel mount; 63.5 mm clearance both sides, 101.6 mm above and below |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock / Vibration | 30 g operating, 50 g non-operating; 10–500 Hz, 5.0 g |
| Protection Rating | IP20 (open type; requires suitable enclosure) |
| Certifications | CE; Class I Zone 2 / Div 2, AEx[ic] nA IIC; ATEX II 3G (DEMKO 14 ATEX 1230U) |
| Product Status | Discontinued 31 Dec 2023 (repairable / replaceable) |
