Product Overview

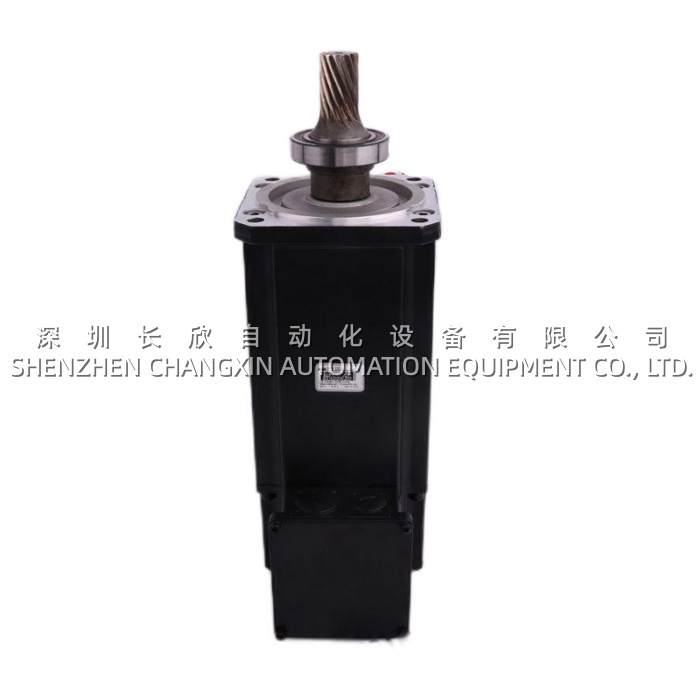

The ABB 3HAC3403-1/2 is a high-performance AC permanent magnet synchronous servo motor engineered by ABB Robotics specifically for precision motion control in industrial robot joints and demanding automation applications . This servo motor serves as the critical “muscle engine” within ABB’s industrial robot family, providing the dynamic torque and positional accuracy required for high-speed, high-repeatability operations in automotive assembly, material handling, and machine tending applications. The ABB 3HAC3403-1/2 is commonly deployed as an axis drive motor in IRB 2400, IRB 6600, and IRB 7600 series robots, typically serving as the shoulder, elbow, or wrist drive unit depending on configuration .
The ABB 3HAC3403-1/2 features a compact, high-power-density design with a low-inertia rotor that enables rapid acceleration and deceleration while maintaining precise positioning without overshoot . The motor integrates a resolver feedback device—rather than an optical encoder—providing robust, EMI-immune position and speed feedback that is particularly valuable in electrically harsh welding environments where high-frequency noise would disrupt optical sensors . The ABB 3HAC3403-1/2 is available in variants with or without a spring-applied, 24V DC electromagnetic release brake, with the braked version (Axis 1-3 subtypes) providing gravity-hold capability for shoulder and elbow joints . The motor’s mechanical interface—including flange PCD, shaft diameter, keyway dimensions, and brake connector orientation—is manufactured to ABB’s original specifications, ensuring “clone-correct” compatibility that preserves the robot’s kinematic calibration during replacement .
With an IP65-rated housing and robust shaft sealing, the ABB 3HAC3403-1/2 withstands exposure to dust, coolant splash, and oil mist, making it suitable for harsh industrial environments ranging from automotive welding cells to metal foundries . The motor seamlessly integrates with ABB’s IRC5 and OmniCore robot controllers, with the resolver signal processed by DSQC 364 or 377 drive modules on the controller rack . As a genuine ABB Robotics component, the ABB 3HAC3403-1/2 delivers the reliability, performance, and long-term lifecycle support required to keep critical robotic cells operating at peak productivity.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3HAC3403-1/2 (also referenced as 3HAC03403-1 or 3HAC4789-1) |
| Manufacturer | ABB Robotics (Sweden) |
| Product Type | AC Permanent Magnet Synchronous Servo Motor |
| Applicable Robots | IRB 2400 series, IRB 6600 series, IRB 7600 series |
| Rated Power | 2.5 kW (continuous) |
| Rated Torque | 8.0 N·m |
| Peak Torque | 24.0 N·m (short-term) |
| Rated Speed | 3000 rpm |
| Maximum Speed | 4500 rpm |
| Feedback Element | Resolver (2-pole or multi-speed, mates with DSQC 364/377) |
| Brake Option | Spring-applied, 24 V DC electromagnetic release (6-pin circular connector, Axis 1-3 variants) |
| Operating Voltage | 200/230/400 V AC (per DSQC drive output) |
| Protection Class | IP65 (flange side, Axis 1-3) / IP54 (body) |
| Cooling Method | Natural convection (IC 0041) |
| Mounting | Flange mount with keyed shaft, elastic coupling to reduction gear |
| Shaft Diameter | 22 mm with keyway |
| Weight | Approx. 12 kg |
| Operating Temperature | 0°C to +40°C (ambient) |
| Insulation Class | Class F |
| Standards Compliance | CE, UL, CSA |
Main Features and Advantages
Resolver feedback for EMI immunity:
The ABB 3HAC3403-1/2 utilizes a resolver rather than an optical encoder for position and speed feedback. In welding applications where 50 kA weld currents and 400 V three-phase cabling generate significant electromagnetic interference, optical encoders are vulnerable to count drift and signal corruption . The resolver’s transformer-coupled design provides inherent immunity to stray fields, enabling the ABB 3HAC3403-1/2 to deliver reliable feedback for over 40,000 hours in automotive welding cells without failure . This EMI resilience makes the ABB 3HAC3403-1/2 the preferred choice for electrically harsh production environments.
Mechanical clone compatibility:
The ABB 3HAC3403-1/2 is manufactured to ABB’s original flange PCD, shaft diameter, keyway depth, and brake connector orientation specifications . When replacing a failed motor, the ABB 3HAC3403-1/2 preserves the robot’s kinematic identity—the SMB (Serial Measurement Board) calibration offsets remain valid, and no zero-point re-teach or TCP recalculation is required . Field experience demonstrates that a ABB 3HAC3403-1/2 swap can be completed in under 60 minutes, compared to half-day re-teach procedures for non-compatible replacements . This compatibility represents significant downtime savings in high-throughput production environments.
Spring-applied brake with zero-backlash seating:
On Axis 1-3 variants of the ABB 3HAC3403-1/2, a spring-applied, 24V DC release disc brake provides gravity-hold capability for shoulder and elbow joints . The brake rotor is splined to the motor shaft with zero-backlash preload, ensuring that when the robot powers down and the brake engages, the joint does not “settle” by even 0.02° overnight . This stability enables the SMB to retain calibration across extended power-off periods; non-compatible aftermarket motors with sloppy brake splines would require Monday-morning zero re-teach .
Robust construction for harsh environments:
The ABB 3HAC3403-1/2 features an IP65-rated housing with robust shaft sealing and vibration-resistant construction, making it suitable for deployment in automotive welding cells, foundry applications, and metal fabrication facilities . The motor’s natural convection cooling eliminates the reliability risks associated with fan-assisted cooling systems, while the Class F insulation withstands high temperatures without degradation . The ABB 3HAC3403-1/2 delivers reliable performance even in environments with coolant splas
