Application Scenarios
In a large-scale power plant using TELEPERM M process control systems, engineers needed to integrate modern operator workstations with the legacy CS275 fieldbus network. The existing infrastructure comprised multiple S5-155U automation racks connected via the 20-meter local bus. By deploying the Siemens 6DS1222-8BA as a termination module on each expansion rack, the engineering team successfully eliminated signal reflections that were causing intermittent communication errors. The module’s built-in termination resistors ensured proper bus impedance matching across the entire network, resulting in stable and reliable data exchange between the control systems and the OS 525 visualization platform .
A chemical processing facility faced a critical maintenance challenge: repeated Nahbus communication faults on their SIMATIC S5-135U system were causing production halts. The troubleshooting process revealed that a missing bus terminator on an extension rack was the root cause of the intermittent errors. After installing the 6DS1222-8BA on the affected rack, the plant restored stable communication and eliminated the periodic downtime. Plant maintenance teams reported that the module’s standardized LED indicators—identical to those found on N-8 or N-S5 interface modules—allowed them to verify proper bus termination status at a glance, significantly reducing diagnostic time .
Technical Specifications
| Main Parameters | Value/Description |
|---|---|

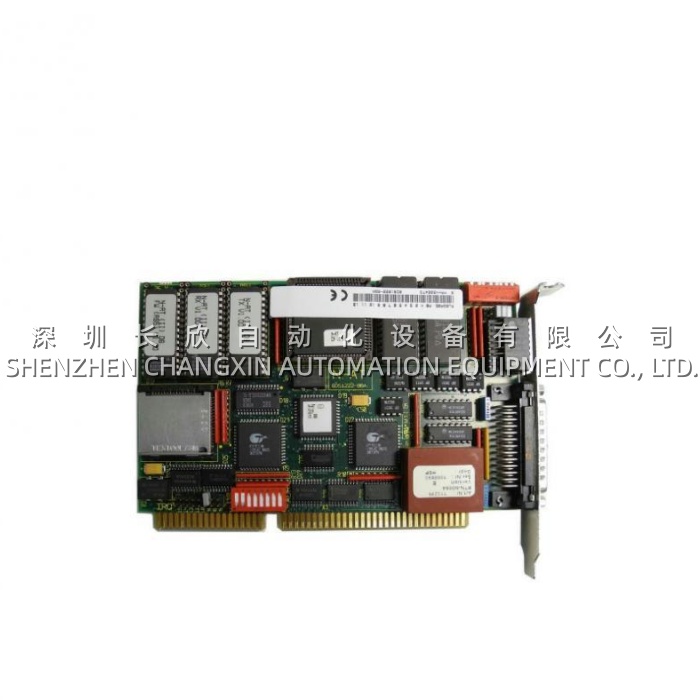

| Product Model | 6DS1222-8BA |
| Manufacturer | Siemens (SIMATIC S5 / TELEPERM M) |
| Product Category | N-AT Interface Module / Bus Termination Module |
| System Compatibility | SIMATIC S5 (S5-115U/135U/155U), TELEPERM M, CS275 Bus System |
| Core Function | 20-meter local bus termination and interface for OS 525 connection |
| Form Factor | Plug-in module for S5 expansion rack end slot |
| Front Panel | 6 control LEDs (standardized with N-8/N-S5 modules) |
| Dimensions (W×H×D) | 12.7 cm × 17.8 cm × 2.5 cm |
| Weight | Approx. 0.2 kg |
| Product Status | Discontinued (spare parts market only) |
Technical Principles and Innovative Values
Innovation Point 1: Integrated Bus Termination for Signal Integrity
The Siemens 6DS1222-8BA addresses a fundamental challenge in parallel bus systems: signal reflections caused by impedance mismatches at the end of transmission lines. When placed in the end slot of an expansion rack, the module provides the necessary termination resistance that matches the characteristic impedance of the Nahbus. This critical function prevents signal echoes that can corrupt data frames, ensuring reliable communication between the central processing unit and remote I/O racks. Without proper termination, the CS275 bus can experience frame errors, retransmissions, and eventual communication failures .
Innovation Point 2: OS 525 System Integration Capability
The 6DS1222-8BA serves as a bridge between the TELEPERM M process control environment and the OS 525 operator system. By interfacing with the 20-meter local bus, the module enables the operator system to access process data, send control commands, and provide visualization capabilities that leverage the computing power of the OS 525 platform. The executing user software on the OS 525 actively controls the interface, managing the reception and transmission of message frames during system operation, creating a seamless integration between control and visualization layers .
Innovation Point 3: Standardized Diagnostic Interface
The front panel of the 6DS1222-8BA features six control LEDs with meanings, layout, and colors identical to other CS275 bus interface modules such as the N-8 or N-S5 . This standardization allows maintenance engineers familiar with other modules in the CS275 family to immediately interpret status information without requiring special training. The consistency in diagnostic presentation across the product family significantly reduces troubleshooting time and simplifies training requirements for plant maintenance staff.
Innovation Point 4: Legacy System Support for TELEPERM M and SIMADYN D
The 6DS1222-8BA is part of the broader Siemens automation ecosystem, compatible with TELEPERM M, SIMATIC S5, and SIMADYN D platforms. While the module itself is a discrete I/O component, it integrates with the high-performance SIMADYN D series, which employs 128 MHz, 64-bit RISC processors and supports cycle times as low as 0.1 ms for time-critical tasks . This cross-platform compatibility allows facilities with mixed automation architectures to maintain a unified spare parts strategy across different system generations.
