Description

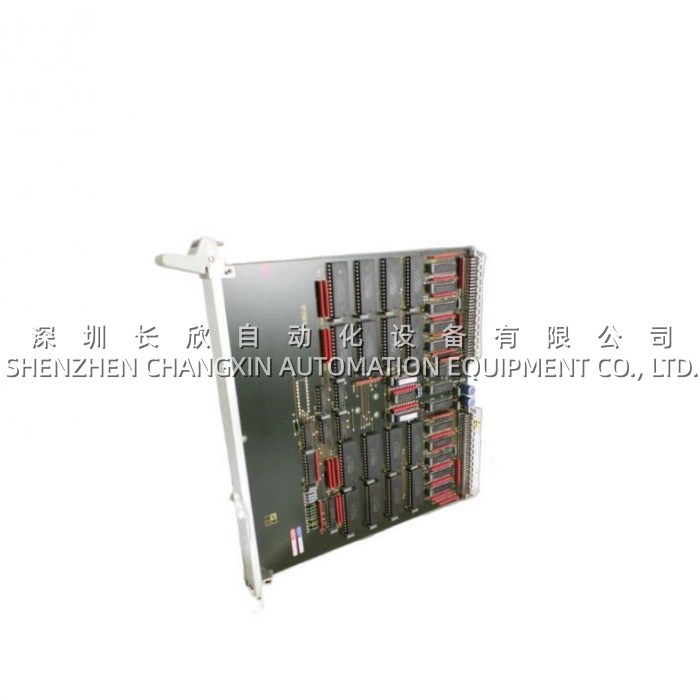

The Siemens 6DD1640-0AC0, designated as the EM11 I/O Module, is a versatile mixed-signal input/output board engineered for the SIMADYN D high-performance digital control system. This module serves as the primary interface between the controller and field devices, providing comprehensive signal processing capabilities essential for demanding drive and process control applications .
Equipped with a sophisticated 16-bit architecture, the 6DD1640-0AC0 integrates multiple signal types including digital outputs, analog inputs with A/D conversion, and analog outputs with D/A conversion. It also features dedicated channels for actual speed value and position encoding via incremental encoder inputs, making it an ideal solution for motion control and drive regulation tasks .
Application Scenarios
In a large steel rolling mill, the Siemens 6DD1640-0AC0 was deployed to coordinate the complex interplay between hydraulic actuators, speed feedback encoders, and process sensors across multiple rolling stands. The module’s ability to simultaneously handle analog signals from pressure transducers, digital outputs to hydraulic servo valves, and high-frequency pulse inputs from shaft encoders enabled precise gauge control that reduced product thickness variation by 35%. The 16 front-panel LEDs provided immediate visual confirmation of binary I/O states, allowing maintenance teams to troubleshoot signal issues in seconds without requiring diagnostic software .
Similarly, in a high-speed printing press application, the 6DD1640-0AC0 proved essential for synchronized web tension control. The module’s pulse sensing capability, handling up to 100 kHz input frequencies, accurately tracked the position and speed of multiple driven rollers. This precision eliminated print registration errors and reduced waste during production changeovers. Plant engineers particularly valued the module’s compatibility with SE7.1 interface modules, which simplified field wiring and allowed for easy signal conditioning using standard 20-pin ribbon cables .
Technical Specifications
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6DD1640-0AC0 |
| Manufacturer | Siemens |
| Product Category | Mixed I/O Module / SIMADYN D EM11 |
| Bit Depth | 16-bit |
| Digital Outputs (BO) | 8 channels for discrete control signals |
| Analog Inputs (AI) | 4 channels for continuous process measurement (A/D conversion) |
| Analog Inputs (AI INT.) | 4 additional integrated channels for high-precision measurement |
| Analog Outputs (AO) | 2 channels for precise control output (D/A conversion) |
| Speed Input | 1 channel for actual speed value and position encoding (two tracks + zero pulse), max 100 kHz |
| Binary Inputs | 16 channels |
| Front Panel Indicators | 16 LEDs for binary status display |
| Mounting | Single slot in SIMADYN D subrack |
| Weight | 0.564 kg |
| Product Status | Discontinued since October 1, 2017 |
| Country of Origin | Germany |
Technical Principles and Innovative Values
Innovation Point 1: Multi-Mode Signal Conversion Architecture
The Siemens 6DD1640-0AC0 integrates three distinct conversion technologies on a single board: A/D conversion for standard analog inputs, V/F (Voltage-to-Frequency) and F/D (Frequency-to-Digital) conversion for specialized analog channels, and D/A conversion for analog outputs. This hybrid architecture allows the module to process signals from a wide variety of field devices, including thermocouples, pressure transducers, and variable-frequency drives, without requiring external signal conditioning modules. The V/F/D conversion path provides exceptional noise immunity for signals transmitted over long distances in electrically noisy industrial environments .
Innovation Point 2: Integrated Speed and Position Encoding
Unlike conventional I/O modules that require separate high-speed counter cards for motion feedback, the 6DD1640-0AC0 features a dedicated channel for incremental encoder inputs, supporting two tracks plus a zero marking pulse at frequencies up to 100 kHz. This integration enables precise shaft position and speed measurement for motor feedback, electronic gearing, and cam synchronization applications. The module’s ability to process encoder signals directly reduces system complexity and eliminates the latency introduced by external pulse counters, ensuring deterministic control response in high-speed motion applications .
Innovation Point 3: Comprehensive Visual Diagnostics
The 6DD1640-0AC0 incorporates 16 front-panel LEDs that directly indicate the state of all binary inputs and outputs. This visual feedback mechanism enables maintenance personnel to verify signal states without opening control cabinets or connecting diagnostic equipment, significantly reducing troubleshooting time. In critical applications where every second of downtime carries a high cost, this feature provides immediate visibility into I/O status, a
