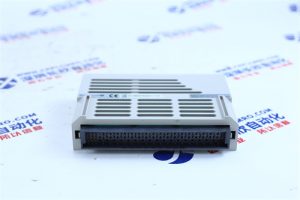

TRICONEX 3607E
Product Description:
The TRICONEX 3607E is a high-integrity triple modular redundancy (TMR) digital output module designed for critical safety and process control applications. It features 16 isolated high-side digital outputs, each channel independently monitored and protected, suitable for use in emergency shutdown, fire & gas systems, and other safety instrumented systems (SIS). It supports direct control of field devices such as solenoids, relays, and indicators, delivering robust operation and fault tolerance for demanding industrial environments.
Product Parameters and Specifications:
-
-
Output Channels: 16, non-commoned digital outputs
-
Output Type: High-side, TMR digital output
-
Nominal Output Voltage: 48 VDC (operates over voltage range 44–80 VDC)
-
Output Current: Up to 1A per channel (continuous); up to 2A (continuous) and 3A (peak) per point (some sources)
-
Voltage Drop: <3V typical
-
Load Leakage Current: 2 mA maximum
-
Fuses: 1 per output channel, replaceable on terminal board
-
Input Voltage/Current (for module power): 24 VDC, 150mA typical
-
Isolation: Each channel isolated, high-voltage blocking
-
Operating Temperature: –40°C to +70°C
