Description

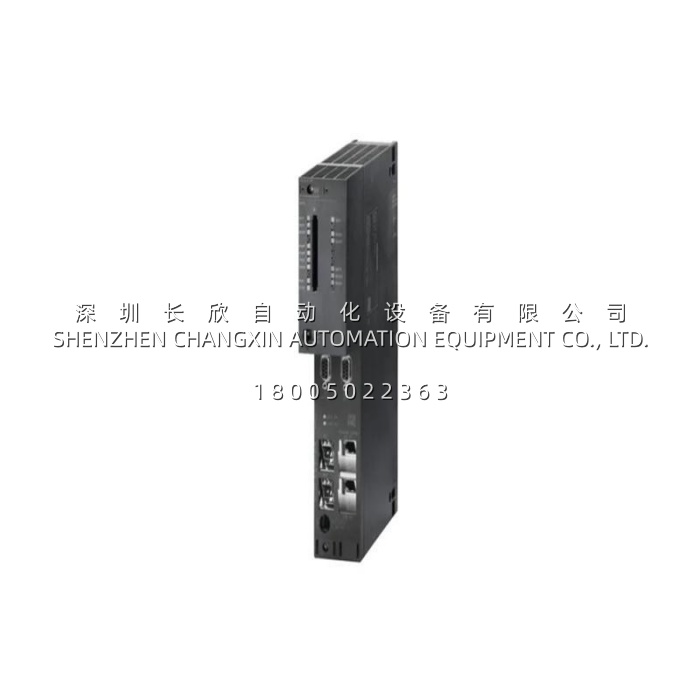

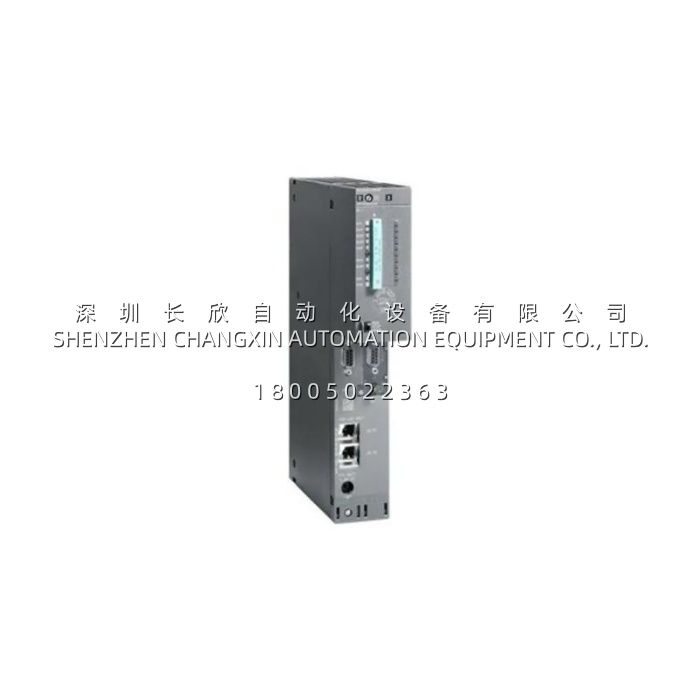

The Siemens 6ES7416-3ES06-0AB0 is a high-performance central processing unit (CPU) from the SIMATIC S7-400 series, engineered for the most demanding process and factory automation applications. This CPU 416-3 PN/DP model delivers exceptional processing power with 16 MB of integrated work memory, divided equally between 8 MB for code and 8 MB for data, making it ideal for complex, large-scale control tasks.
The 6ES7416-3ES06-0AB0 features three versatile communication interfaces: an MPI/DP interface (X1) supporting up to 12 Mbit/s for operator panel and programming device connections, an integrated Ethernet/PROFINET interface (X5) with a 2-port switch for real-time industrial networking, and a slot for a plug-in IF module (IF1) such as the IF 964-DP for additional PROFIBUS connectivity. This comprehensive connectivity, combined with 30 ns bit-processing speed and support for up to 131,072 digital and 8,192 analog I/O points, positions the 6ES7416-3ES06-0AB0 as the backbone of advanced automation architectures.
Application Scenarios
Consider a large automotive assembly plant with multiple robotic work cells, conveyor systems, and quality inspection stations. The existing control infrastructure relied on multiple smaller PLCs communicating over a fragmented network, leading to synchronization delays and complex programming overhead. By deploying the Siemens 6ES7416-3ES06-0AB0 as the central controller, the engineering team consolidated all logic into a single high-performance platform. The 6ES7416-3ES06-0AB0 now handles over 10,000 I/O points, executes complex motion control sequences with its 30 ns bit-processing capability, and synchronizes the entire production line via PROFINET IRT with isochronous mode—achieving cycle times under 1 ms. The result was a 35% increase in production throughput and a 60% reduction in troubleshooting time, as all diagnostics are now centralized within the 6ES7416-3ES06-0AB0’s comprehensive diagnostic buffer.
In a large-scale chemical processing facility, a plant upgrade required a controller capable of managing multiple continuous process units with thousands of analog loops and complex batch sequencing. The 6ES7416-3ES06-0AB0 was selected for its 16 MB work memory, which comfortably accommodates the extensive code and data requirements of CFC-based process control applications. The CPU’s support for redundant system configurations and its ability to handle up to 95 operator panels make it the perfect fit for the plant’s 24/7 operations. After commissioning, the 6ES7416-3ES06-0AB0 delivered 99.99% availability, with the CiR (Configuration in RUN) feature enabling online hardware changes without process interruption—a critical advantage that saved the facility an estimated $500,000 in avoided downtime during the first year of operation.
Technical Specifications
| Parameter | Value/Description |
|---|---|
| Product Model | 6ES7416-3ES06-0AB0 |
| Manufacturer | Siemens AG |
| Product Family | SIMATIC S7-400 |
| CPU Type | CPU 416-3 PN/DP |
| Work Memory | 16 MB (8 MB code / 8 MB data) |
| Load Memory | Expandable up to 64 MB via Flash/RAM Memory Card |
| Bit Processing Speed | 30 ns (typ.) |
| Floating Point Speed | 90 ns (typ.) |
| Interfaces | 1x MPI/DP (12 Mbit/s, X1) + 1x PROFINET (X5, 2-port switch) + 1x IF slot (IF1) |
| Digital I/O Address Range | 131,072 inputs / 131,072 outputs |
| Analog I/O Address Range | 8,192 inputs / 8,192 outputs |
| Process Image Size | 16 KB inputs / 16 KB outputs (adjustable) |
| Communication Connections | Up to 96 simultaneous connections |
| Power Supply | Via S7-400 system power supply (backplane) |
| Backup Battery | Yes (5-15V DC external backup, all data retentive) |
| Operating Temperature | 0°C to +60°C |
| Dimensions (W×H×D) | 50 × 290 × 219 mm |
| Required Slots | 2 |
| Firmware Version | V6.0 |
| Programming Software | STEP 7 V5.5 or higher / iMap V3.0 |
