Description

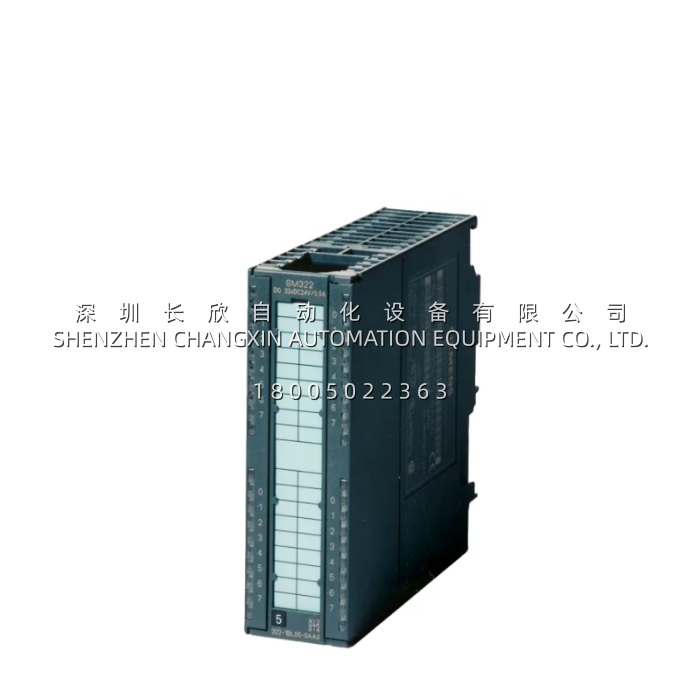

The Siemens 6ES7322-1BL00-0AA0 is a high-density digital output module from the SIMATIC S7-300 series, designed as the SM 322 signal module for expanding control capabilities . This module provides 32 optically isolated digital outputs, enabling reliable communication between the PLC and actuators, solenoids, indicator lights, and other field devices .
Engineered for industrial robustness with electronic short-circuit protection and 500V DC isolation testing, the Siemens 6ES7322-1BL00-0AA0 delivers dependable performance in demanding automation environments while maintaining compact dimensions (40 mm width) suitable for space-constrained control cabinets .
Application Scenarios
In an automotive body shop with hundreds of pneumatic cylinders controlling welding clamps and part transfer systems, the Siemens 6ES7322-1BL00-0AA0 provides the dense, high-speed output capability essential for synchronized production sequences. Previously, the facility struggled with relay failures and wiring complexities when using discrete output cards with lower channel counts. By deploying the Siemens 6ES7322-1BL00-0AA0, each module drives up to 32 solenoid valves directly, reducing wiring by 75% and cutting panel space requirements. The electronic short-circuit protection prevents catastrophic failure when a solenoid coil shorts, and the green status LEDs per channel allow maintenance teams to instantly identify active outputs without a programming terminal—a feature that reduced troubleshooting time by over 60% in the first month of operation.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6ES7322-1BL00-0AA0 |
| Manufacturer | Siemens |
| Product Category | SM 322 Digital Output Module / PLC I/O Module |
| Number of Outputs | 32 digital outputs (isolated in groups of 8) |
| Rated Load Voltage | 24 V DC (permissible range: 20.4 – 28.8 V DC) |
| Output Current per Channel | 0.5 A rated; 0.6 A max (0-40°C) |
| Total Current per Group | 4 A max (horizontal, ≤40°C); 3 A max (horizontal, ≤60°C) |
| Short-Circuit Protection | Yes, electronic (tripping threshold ~1 A) |
| Switching Frequency | 100 Hz (resistive load); 10 Hz (lamp load); 0.5 Hz (inductive load) |
| Power Loss | 6.6 W typical |
| Potential Isolation | Yes, between channels (groups of 8) and backplane bus via optocoupler |
| Dimensions (W x H x D) | 40 mm × 125 mm × 120 mm |
| Weight | Approx. 260 g |
| Required Front Connector | 40-pin |
| Operating Temperature | 0°C to +60°C (with derating above 40°C) |
Technical Principles and Innovative Values
Innovation Point 1: High-Density Output Architecture with Group Isolation
The Siemens 6ES7322-1BL00-0AA0 packs 32 outputs into a single 40 mm wide module—a density that was industry-leading for its era. Each output channel is isolated in groups of 8, with optocoupler separation between the outputs and the S7-300 backplane bus tested at 500 V DC . This group isolation allows field wiring faults on one group (e.g., short to ground) to remain contained, preventing a single wiring error from taking down all 32 outputs .
Innovation Point 2: Intelligent Thermal Derating for Reliability
The module’s design accounts for real-world cabinet conditions through built-in derating specifications. At 40°C ambient, all 32 outputs can simultaneously deliver the rated 0.5 A (total 4 A per group) . At 60°C, the permissible group current automatically derates to 3 A—effectively limiting the system to 24 active outputs at full load to prevent thermal damage . This intelligent derating ensures long-term reliability without requiring external heatsinks or forced cooling, a significant advantage over modules lacking clear thermal guidance .
Innovation Point 3: Electronic Short-Circuit Protection with Fast Recovery
Unlike fuse-based modules that require physical replacement after a fault, the Siemens 6ES7322-1BL00-0AA0 integrates electronic short-circuit protection with a tripping threshold of approximately 1 A per channel . When a short circuit occurs, the affected channel is disabled, protecting the module and wiring. Once the fault is cleared and the load voltage is cycled, the channel automatically recovers—eliminating the downtime and spare part costs associated with blown fuses.
Innovation Point 4: Comprehensive Status Visibility
Each of the 32 outputs features an individual green LED status indicator on the front panel . This allows operators to verify output states at a glance—whether a valve should be open, a motor running, or a light on—without requiring a programming device. For maintenance teams, this visual feedback transforms troubleshooting from a software-based detective exercise into a quick walk-by inspection.
