Product Overview

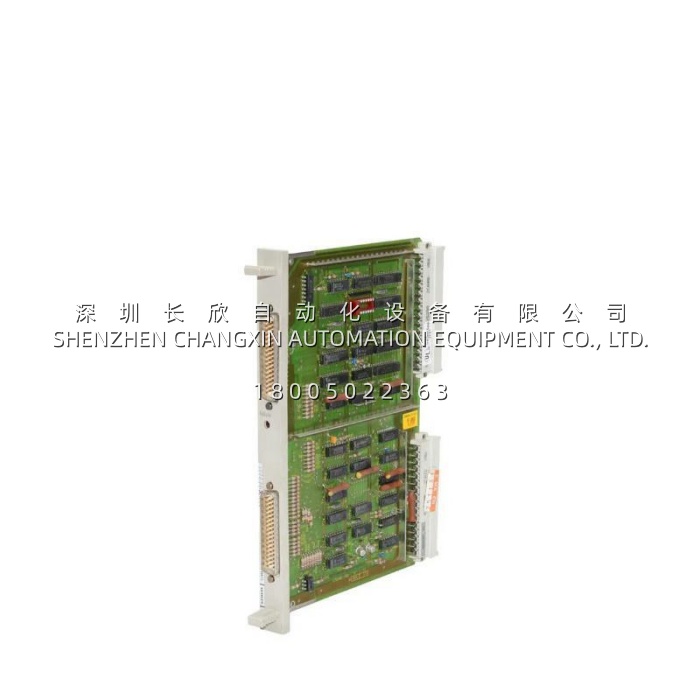

The 6ES5301-5CA12 is a SIMATIC S5 IM 301 interface module manufactured by Siemens, engineered as the central-controller-side communication bridge that enables distributed expansion of legacy S5 automation systems up to 200 meters away. According to Siemens’ original S5 catalog designation, the 6ES5301-5CA12 is defined as “Anschluss IM 301 (im Zentralgerät) für dezentr. Anschluss bis 200 m von EG oder EKL 484 an ZG” — meaning it resides in the central controller and provides a decentralized connection of expansion units (EG/EU) or 484 electronic terminals to the central device, with a maximum distance of 200 meters. The 6ES5301-5CA12 is deliberately supplied without an integrated power supply, making it a compact, lightweight coupling module that draws its operating energy from the central controller’s backplane while relying on the expansion device being adequately powered by the central device or an appropriately rated external source.
As a member of the SIMATIC S5 IM 301 family, the 6ES5301-5CA12 plays a pivotal role in distributed automation topologies where the physical separation between the S5 central controller and remote I/O stations exceeds the limits of direct rack adjacency. By plugging the 6ES5301-5CA12 into the dedicated IM slot of an S5 central controller, system architects can relocate expansion units, remote I/O cabinets, and EKL 484 electronic terminals up to 200 meters away — dramatically simplifying cable routing, reducing electromagnetic interference exposure, and enabling flexible plant-floor layouts that were never possible with centralized-only configurations. The module’s compact S5 form factor occupies a single rack slot, integrates seamlessly with the S5 proprietary expansion bus, and communicates using Siemens’ proven decentralized connection protocol.
Because SIMATIC S5 has been fully discontinued for years, the 6ES5301-5CA12 has become a strategically critical MRO spare part for utilities, steel mills, chemical plants, and manufacturing facilities that have deliberately chosen to preserve their validated S5 control architectures rather than fund a risky platform migration. Professional automation suppliers now offer the 6ES5301-5CA12 as tested surplus or new-old-stock (NOS), with each unit undergoing functional verification of its decentralized bus transceiver, 200-meter link integrity, and backplane power draw prior to shipment. For the thousands of S5 systems still governing critical processes worldwide, the 6ES5301-5CA12 remains the authentic, drop-in solution for maintaining and extending distributed I/O connectivity — a genuine Siemens original that delivers the same reliability today as it did when first installed decades ago.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 6ES5301-5CA12 |
| Manufacturer | Siemens AG |
| Product Type | SIMATIC S5 IM 301 Interface Module (Central Controller Side) |
| Product Family | SIMATIC S5 (EU Interface Module) |
| Primary Function | Distributed connection of expansion units (EG/EU) or EKL 484 electronic terminal to the central controller (ZG) |
| Maximum Distance | 200 meters (decentralized configuration) |
| Integrated Power Supply | None (without PSU) |
| Power Source | 5 V DC from S5 rack backplane; expansion device powered by central device or external source |
| Bus Type | S5 proprietary expansion bus (decentralized) |
| Configuration Mode | Centralized connection for distributed topology |
| Mounting Method | Single dedicated IM slot in S5 central controller |
| Form Factor | Compact S5 module, single-slot width |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Protection Rating | IP20 (indoor control cabinet) |
| Compatible Devices | SIMATIC S5 Central Controllers, Expansion Devices (EG/EU), EKL 484 Electronic Terminal |
| Diagnostics | LED indicators for monitoring power and communication status |
| Configuration Tool | STEP 5 (bus address assignment, diagnostics) |
| Lifecycle Status | Discontinued (SIMATIC S5 fully obsolete) |
| Commodity Code | 85381000 |
| Country of Origin | Germany |
