Product Description

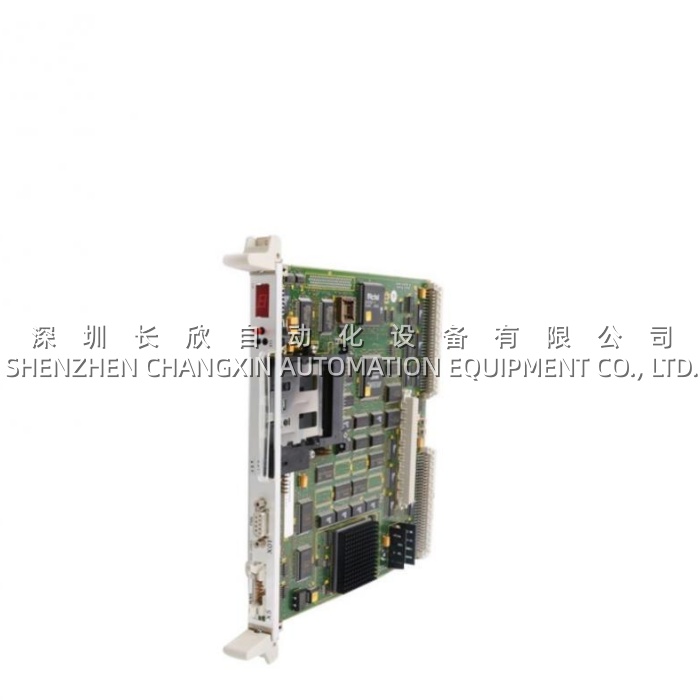

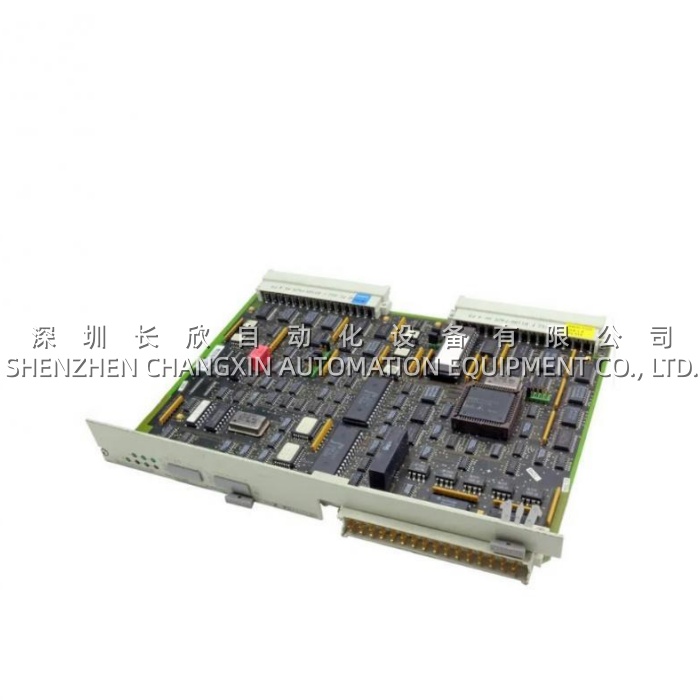

The Siemens 6DS1220-8AA is an N8-H local bus interface module from the Siemens Teleperm M/ME distributed control system (DCS) family, designed as a critical communication bridge within the CS 275 bus system. This module enables reliable 8-bit data transfer between automation stations (AS) and operator stations (OS) or other functional racks over a 20-meter local bus distance.
The 6DS1220-8AA serves as the “neural pathway” of legacy Teleperm M installations, ensuring deterministic data exchange between system components in power plants, chemical facilities, and large-scale process industries where communication continuity is paramount.
Application Scenarios
In an aging coal-fired power plant running a Teleperm M DCS, the facility experienced intermittent communication faults between the automation station and operator consoles, causing process data dropouts and operator uncertainty. After replacing the faulty local bus module with the Siemens 6DS1220-8AA, the plant restored stable, error-free communication across the entire control network. The module’s robust design and redundant bus capability ensured uninterrupted data flow even in the high-EMI environment near turbine generators. The plant reported elimination of communication-related alarms and commended the module’s plug-and-play compatibility with the existing infrastructure.
The 6DS1220-8AA addresses critical industrial pain points:
- Need for reliable AS-OS communication in legacy Teleperm M DCS systems
- Requirement for deterministic 8-bit data transfer in process control applications
- Demand for robust noise immunity in power plant and industrial environments
- Integration of automation stations within the CS 275 bus architecture
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6DS1220-8AA |
| Manufacturer | Siemens |
| Product Category | Teleperm M/ME Local Bus Interface Module (N8-H type) |
| Bus System | CS 275 Local Bus (20-meter distance) |
| Data Width | 8-bit parallel data transfer |
| Supply Voltage | 24V DC (20.4V – 28.8V) |
| Typical Power Consumption | ~4.5W |
| Typical Data Transfer Rate | Up to 1.5 Mbps |
| Supported Nodes | Up to 31 slave stations (configuration dependent) |
| Transmission Medium | Shielded twisted pair |
| Redundancy Support | Local bus redundant in standard configuration |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Protection Class | IP20 (standard cabinet mounting) |
| Approx. Weight | 0.34 kg – 0.8 kg (varies by source) |
| Product Status | Obsolete / End of Lifecycle |
Technical Principles and Innovative Values
Innovation Point 1: CS 275 Bus System Integration
The Siemens 6DS1220-8AA operates within the CS 275 bus architecture, a proprietary Siemens fieldbus system designed specifically for Teleperm M DCS installations. This bus system enables information exchange between devices over a 20-meter local bus (or 4 km remote bus with appropriate modules), providing a dedicated, deterministic communication backbone for process control.
Innovation Point 2: Redundant Bus Architecture
The local bus is redundant in its standard configuration, and the 6DS1220-8AA supports this redundancy to ensure high system availability. If one communication path fails, the module automatically switches to the redundant path, preventing process disruptions—a critical feature for power generation and chemical applications where unplanned downtime is unacceptable.
Innovation Point 3: Deterministic 8-Bit Data Transfer
Using a master-slave polling mechanism, the 6DS1220-8AA ensures deterministic, real-time data transfer between automation stations and operator consoles. This 8-bit parallel data architecture guarantees that critical process variables reach the operator station with predictable latency, essential for time-sensitive control loops.
Innovation Point 4: Robust Electrical Isolation and Noise Immunity
The 6DS1220-8AA incorporates opto-isolation technology and differential signal transmission to block ground loops and suppress electromagnetic interference. In environments with high-voltage equipment and variable frequency drives, this robust design maintains data integrity where standard communication modules would fail.
Innovation Point 5: Legacy System Compatibility
As the N8-H local bus interface for Teleperm M systems, the 6DS1220-8AA provides seamless backward compatibility with existing installations. This allows plant operators to perform targeted component replacements without migrating the entire DCS, protecting capital investments and minimizing engineering effort.
