Application Scenarios
In a large petrochemical refinery, a critical flow control valve on a distillation column experienced persistent oscillation and position drift, leading to product quality variations and increased operator intervention. The existing analog positioner could not compensate for valve friction and seat wear. After replacing it with the Siemens 6DR5120-0NN00-0AA0, the plant achieved stable valve positioning within seconds of initialization. The 6DR5120-0NN00-0AA0 automated the calibration process, eliminating manual tuning errors, and its online adaptive control continuously compensated for dynamic changes in the valve’s behavior, reducing process variability by over 40%.
The Siemens 6DR5120-0NN00-0AA0 addresses the core pain points of conventional positioners: complex setup, susceptibility to vibration, and inability to adapt to valve wear over time. With features like one-button automatic initialization, tight-close functionality, and comprehensive diagnostic capabilities, the 6DR5120-0NN00-0AA0 ensures reliable valve performance across diverse process conditions while reducing maintenance workload.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6DR5120-0NN00-0AA0 |
| Manufacturer | Siemens AG |

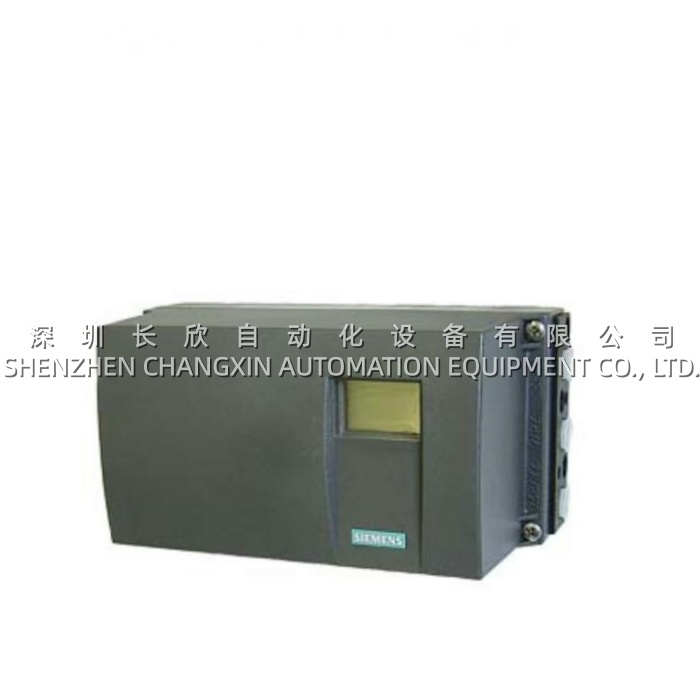

| Product Category | SIPART PS2 Smart Electropneumatic Positioner |
| Actuator Type | Double-acting (linear and part-turn) |
| Control Signal | 4-20 mA (2-wire) with HART communication |
| Housing Material | Polycarbonate (塑铝外壳) |
| Protection Class | IP65 (front/IP20 rear) |
| Explosion Protection | Non-explosion protected (standard) |
| Position Sensing | Non-contacting (wear-free) or potentiometer |
| Pneumatic Connections | 1/4″ NPT |
| Electrical Connections | M20 x 1.5 (with cable glands) |
| Operating Temperature | -25°C to +70°C |
| Certification | SIL 2 |
| Weight | Approx. 0.9 kg (polycarbonate housing) |
Technical Principles and Innovative Values
Innovation Point 1: One-Button Automatic Initialization
The Siemens 6DR5120-0NN00-0AA0 revolutionizes commissioning with its automatic initialization routine. With a single button press, the device automatically detects the actuator’s direction of action, stroke length, angle of rotation, and travel time, then self-calibrates its control parameters. This eliminates the need for time-consuming manual configuration and reduces setup errors, allowing field engineers to commission valves in minutes rather than hours. For specialized applications (e.g., PTFE-lined valves), manual initialization remains available as an alternative.
Innovation Point 2: Online Adaptive Control Algorithm
The 6DR5120-0NN00-0AA0 incorporates a sophisticated online adaptive control program that continuously monitors valve performance and adjusts control parameters in real-time. This feature compensates for dynamic changes such as increasing friction from seat wear, packing degradation, or temperature effects, ensuring consistent control quality throughout the valve’s service life. The result is stable process control with minimal drift and oscillation.
Innovation Point 3: Negligible Steady-State Air Consumption
Through advanced piezo-valve technology, the Siemens 6DR5120-0NN00-0AA0 achieves steady-state air consumption of less than 0.036 Nm³/h. This near-zero consumption dramatically reduces energy costs compared to conventional nozzle-flapper positioners, which continuously bleed air. For large valve fleets, the cumulative savings on instrument air can be substantial.
Innovation Point 4: Non-Contacting Position Detection
The 6DR5120-0NN00-0AA0 supports non-contacting, wear-free position sensing technology (NCS) . This eliminates mechanical wear from the position feedback system, a common failure point in traditional positioners with wiper potentiometers. The NCS sensor is particularly valuable in high-cycle applications where conventional potentiometers would rapidly degrade, significantly extending maintenance intervals.
Innovation Point 5: Tight-Close and Partial Stroke Test Functions
