Description

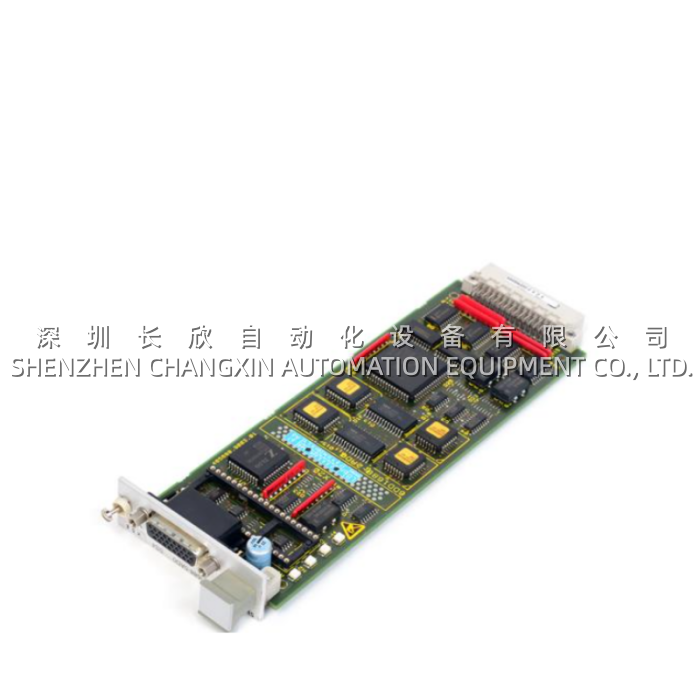

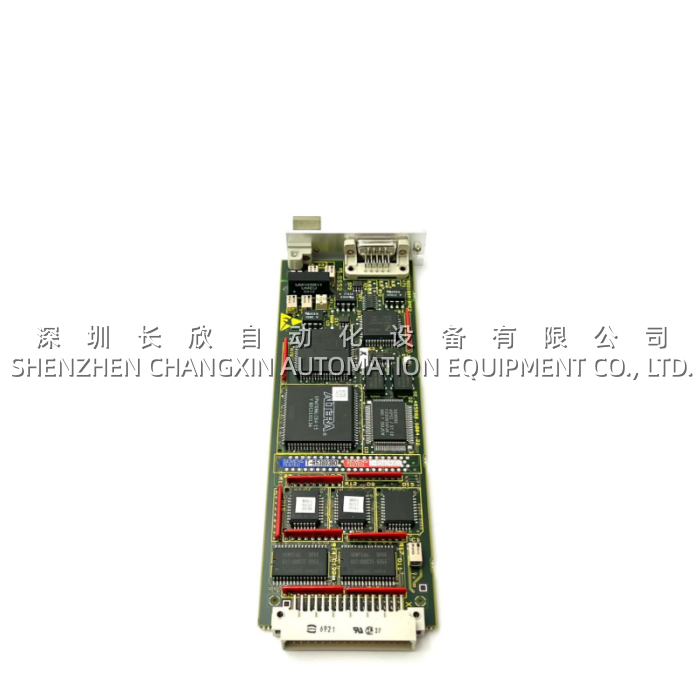

The Siemens 6DD1688-0AE2, designated as the SS52 Communication Submodule, is a specialized master interface module engineered for the SIMADYN D and SIMATIC TDC high-performance digital control systems . This module serves as the critical communication bridge within the CS7 carrier assembly, enabling high-speed data exchange between control modules and external field devices .
Equipped with a PROFIBUS interface in RS485 format with electrical isolation and a separate MPI/RS232 parameterization port, the 6DD1688-0AE2 supports data transfer rates up to 12 Mbit/s and can manage up to 244 bytes of useful data per node . Its robust design, characterized by a compact plug-in form factor and industrial-grade environmental tolerance, makes it an indispensable component for high-availability drive and process control applications.
Application Scenarios
In the demanding environment of a hot rolling mill, engineers relied on the Siemens 6DD1688-0AE2 to coordinate communication between multiple SIMADYN D controllers managing the main drive, finisher, and downcoiler sections. The module’s ability to function as a PROFIBUS DP Class 1 master allowed it to actively manage I/O data exchange with ET200 remote stations located in harsh conditions near the mill stands, ensuring deterministic control cycles and preventing synchronization errors that could cause product defects .
Similarly, in a large-scale mining hoist control system, the 6DD1688-0AE2 proved vital for integrating a legacy SIMADYN D installation with a modern plant-wide DCS. The MPI interface provided a dedicated PG/PC port for commissioning and online diagnostics via CFC, while the PROFIBUS DP link served as the high-speed backbone for safety interlocks and speed feedback from the drive converters. The module’s robust RS485 interface and potential separation ensured reliable communication even with cable runs exceeding 1000 meters in the electrically noisy mine shaft environment .
Technical Specifications
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6DD1688-0AE2 |
| Manufacturer | Siemens |
| Product Category | Communication Submodule / Interface Module |
| Type Designation | SS52 (CP52M) |
| System Compatibility | SIMADYN D, SIMATIC TDC |
| Carrier Module Requirement | CS7 (plug-in module) |
| Communication Interfaces | 1× PROFIBUS DP (RS485, 9-pin D-sub), 1× MPI/RS232 (PG/PC) |
| Data Transfer Rate | Up to 12 Mbit/s (PROFIBUS DP) |
| PROFIBUS Capability | DP-V0/V1 Master or Slave, 244 bytes usable data per node |
| Isolation | Electrical isolation for PROFIBUS interface |
| Supply Voltage | 24 V DC (via backplane) |
| Dimensions (H×W×D) | Approx. 160 × 40 × 120 mm |
| Weight | 0.183 kg |
| Operating Temperature | 0°C to +60°C |
Technical Principles and Innovative Values
Innovation Point 1: Dedicated Dual-Interface Architecture for Master Control
The Siemens 6DD1688-0AE2 distinguishes itself from standard communication modules through its integrated dual-port design optimized for master functionality. It features one PROFIBUS DP interface for high-speed fieldbus communication and one MPI/RS232 interface exclusively for PG/PC access and parameterization . This architecture allows engineers to commission and monitor the system online via CFC without interrupting the real-time process data exchange on the PROFIBUS network. The module interfaces with the CPU via a 16-KByte dual-port RAM located on the CS7 carrier, ensuring rapid and predictable data throughput between the communication processor and the control algorithms .
Innovation Point 2: Enhanced EMI Resilience and Signal Integrity
Operating in environments dominated by large motor drives and high-power switching equipment, the 6DD1688-0AE2 includes electrical isolation (potential separation) for the PROFIBUS interface . This critical feature physically decouples the communication circuitry from the power circuitry of the drives, providing superior resistance to electromagnetic interference and ground loops. While many generic modules support only 1.5 or 3 Mbit/s, the 6DD1688-0AE2 supports up to 12 Mbit/s. This provides the necessary bandwidth for fast control loops common in multi-axis synchronization, where even microsecond delays can lead to quality issues .
Innovation Point 3: Flexible Master/Slave and Redundancy Configuration
The module supports flexible network roles, able to function as a PROFIBUS DP master, slave, or both simultaneously . This versatility simplifies complex network topologies, enabling the 6DD1688-0AE2 to aggregate I/O data from remote ET200 stations and then communicate that data to a higher-level DCS via a second network. In high-availability applications, it can also be used in redundant configurations, ensuring that a backup path is automatically available in the event of a primary module failure, which is crucial for maintaining uptime in continuous process industries .
Innovation Point 4: Optimized for Legacy Integration and Performance
As a dedicated component for the SIMADYN D and TDC platforms, the 6DD1688-0AE2 provides the specific protocol handling required for applications using the SINEC L2 DP bus system . It supports advanced PROFIBUS features such as SYNC and FREEZE for synchronous I/O updates, as well as shared input capabilities. This ensures that it can handle both standard process data and the time-critical control instructions required for automatic gauge control (AGC) in rolling mills or electronic shaft synchronization .
