Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

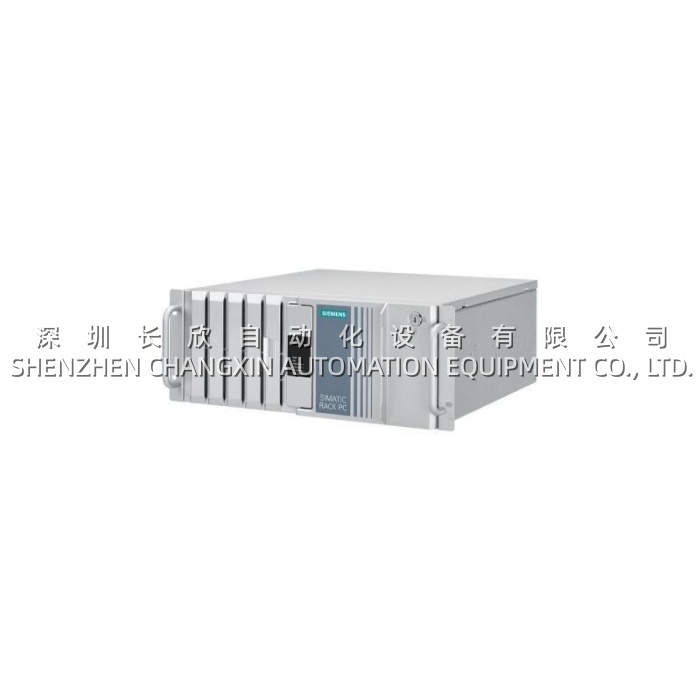

| Product Model | 6AG4104-1AA02-1BX0 |
| Manufacturer | Siemens |
| Product Type | 19″ 4U Rack Industrial PC |
| Series | SIMATIC Rack PC 547B |
| Processor (Typical) | Intel Core 2 Duo E6600 (2.4GHz, 1066MHz FSB, 4MB L2) |
| Chipset | Intel 945G Express |
| Main Memory | Up to 4GB DDR2-667 SDRAM, dual-channel |
| Hard Drive | 250GB SATA HDD (3.5″) |
| Optical Drive | DVD-ROM or DVD-R/RW (5.25″) |
| Expansion Slots | 4x PCI, 1x PCIe x16, 2x PCIe x1 |
| Graphics | Intel GMA950 (integrated), up to 2048×1536 at 75Hz |
| Ethernet | 1x 10/100/1000 Mbps GbE (Broadcom BCM5751) |
| USB Ports | 6x USB 2.0 (2 front, 4 rear) |
| Serial Ports | COM1 (standard), COM2 (optional) |
| Operating Temperature | 5°C to 40°C (operation, no condensation) |
| Protection Class | IP30 (front closed), IP20 (rear) |
| Mounting Dimensions (WxHxD) | 434mm x 177mm x 446mm |
| Weight | Approx. 19kg |
Main Features and Advantages
Exceptional Processing Power for Industrial Applications: The SIEMENS 6AG4104-1AA02-1BX0 harnesses the power of Intel Core 2 Duo 64-bit processors to handle the most demanding industrial computing tasks. Whether used for process visualization, industrial image processing, or running complex WinCC and PCS 7 applications, the SIEMENS 6AG4104-1AA02-1BX0 delivers the computational muscle required for smooth, responsive operation even under full load .
Robust Industrial Design for 24/7 Reliability: The SIEMENS 6AG4104-1AA02-1BX0 is engineered for the harsh realities of factory and process environments. Its all-metal housing provides high electromagnetic compatibility (EMC) shielding, while the active cooling concept with temperature-controlled fans and positive pressure ventilation protects internal components from dust ingress . The SIEMENS 6AG4104-1AA02-1BX0 maintains full performance without thermal throttling at ambient temperatures up to 40°C, ensuring uninterrupted operation in control cabinets, and features specialized hard disk suspension brackets, card retainers, and power plug locks to resist vibration and shock .
Extensive Expansion and Connectivity Options: The SIEMENS 6AG4104-1AA02-1BX0 offers remarkable flexibility with seven expansion slots, including four PCI slots, one PCIe x16 slot, and two PCIe x1 slots, supporting both modern and legacy interface cards . This makes the SIEMENS 6AG4104-1AA02-1BX0 ideal for integrating legacy CP5611/CP5621 Profibus DP communication cards or other specialized industrial interface boards. Multiple serial COM ports, six USB 2.0 ports, PS/2 connectors, and a parallel port provide compatibility with a wide range of industrial peripherals, enhancing adaptability in diverse automation environments .
Advanced Data Security and System Availability: The SIEMENS 6AG4104-1AA02-1BX0 incorporates an onboard RAID1 controller that supports mirror disk configurations, providing high data security with optional hot-swap removable frames for hard disk replacement during operation without system downtime . The SIEMENS 6AG4104-1AA02-1BX0 also includes SIMATIC PC DiagMonitor software for proactive system monitoring, capable of diagnosing internal temperature, fan status, and watchdog events, accessible via LAN or Web server to minimize unplanned downtime .
