Description

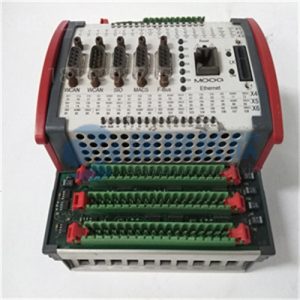

The MOOG D136-001-007​ is a high-performance servovalve driver module (also known as an electrohydraulic amplifier) from Moog Inc., a world leader in motion control technology. This module is designed to power and precisely control electrohydraulic servo valves (EHSVs) in applications requiring extremely fast response, high accuracy, and long-term stability. It is commonly used in gas turbine fuel control, steam turbine governing, and other high-stakes industrial actuation systems.

Application Scenarios

In a natural gas-fired power plant, the fuel control system of a gas turbine is a classic example of a high-risk, high-reward control loop. A delay of a few milliseconds in adjusting the fuel flow can lead to dangerous overspeed or inefficient combustion. The MOOG D136-001-007​ sits at the heart of this loop, taking a low-power ±10V or 4–20mA command from a digital controller and amplifying it into a high-current, high-dynamic output to drive the torque motor of a Moog servo valve.

During a recent retrofit of a 200 MW turbine, the original driver module was obsolete and causing unstable fuel valve positioning. Replacing it with a genuine MOOG D136-001-007​ restored crisp, jitter-free valve movement. Operators noted smoother load transitions and tighter emissions control, confirming that the driver module is not just a component—it’s the linchpin of precision hydraulic actuation.

Technical Principles and Innovative Values

Innovation Point 1: Ultra-Fast Signal Conversion – The MOOG D136-001-007​ converts low-level control signals into high-power drive currents with sub-millisecond latency. This enables servo valves to respond instantly to setpoint changes, critical for controlling combustion dynamics in turbines.

Innovation Point 2: Precision Current Regulation – Unlike generic amplifiers, this module maintains extremely linear current output over the full range, reducing hysteresis and improving repeatability of valve positioning. This is essential for stable, low-emission combustion.

Innovation Point 3: Built-In Protection & Diagnostics – The module includes safeguards against overcurrent, thermal overload, and open-circuit conditions. Status LEDs and optional analog/digital monitoring points make troubleshooting straightforward, reducing mean time to repair.

Innovation Point 4: Seamless Integration with Moog EHSVs – Because it is designed specifically for Moog servo valves, the D136-001-007​ optimizes spool force, damping, and dynamic response, delivering better overall system performance than third-party drivers.

Application Cases and Industry Value

A North Sea offshore platform upgraded its gas compression train’s anti-surge control system. The existing hydraulic actuators used outdated drivers that introduced lag during emergency valve opening, risking compressor damage. The engineering team selected the MOOG D136-001-007​ to drive new Moog servo valves installed on the recycle lines.

Post-installation tests showed valve opening times reduced by 40%, with much tighter control of surge margins. Over the next two years, there were zero incidents of surge-induced trips. The reliability of the D136-001-007​ contributed directly to uninterrupted gas export and avoided costly downtime penalties.

Related Product Combination Solutions

To build a complete electrohydraulic actuation system around the MOOG D136-001-007. consider these complementary products:

MOOG D661 / D662 Series Servo Valves: High-performance EHSVs that the D136-001-007​ is designed to drive, offering different spool types and flow ratings.

MOOG G761 / G631 Series Servo Valves: Alternative EHSV options for lower-flow or less dynamic applications, still compatible with the D136-001-007.

MOOG LVDT Position Sensors: Provide accurate, high-resolution feedback to the driver for closed-loop control of valve position.

MOOG D138-002-001: A higher-power driver variant for larger valves or higher flow requirements, used alongside the D136-001-007​ in multi-valve systems.

MOOG MSP691 / MSP692 Power Supplies: Dedicated, regulated power sources for servovalve driver modules, ensuring clean voltage and reducing electrical noise.

Turbine Controllers (e.g., Woodward 505. GE Mark VI): Generate the ±10V or 4–20mA command signals that the D136-001-007​ amplifies.

Control Panels with DIN Rail & EMI Filtering: Properly shield and mount the D136-001-007​ to prevent electrical interference in noisy industrial environments.

Installation, Maintenance, and Full-Cycle Support

Installation and Commissioning: The MOOG D136-001-007​ is designed for straightforward panel or DIN rail mounting. Before installation, verify the supply voltage matches the module’s rating and that the input signal type (voltage or current) is correctly jumper-selected. Wiring to the servo valve must use shielded cable, with the shield properly grounded at one end to avoid EMI. Calibration involves setting the zero and span of the output current to match the valve’s null and full-stroke positions, typically done with a signal generator and a multimeter or oscilloscope.

Routine Maintenance and Lifecycle Support: The module is largely maintenance-free, but periodic inspection of connectors, wiring, and cooling airflow is recommended. In the event of a fault, the status LEDs will indicate the nature of the problem (e.g., overcurrent, undervoltage). Replacement is simple: power down, disconnect wiring, remove the module, and install a new or repaired unit. Recalibration is usually not required if the replacement is from the same part number.

We provide full lifecycle support, from sourcing genuine MOOG D136-001-007​ modules to assisting with system integration, calibration, and troubleshooting. Our team can also help you plan for obsolescence, ensuring that your critical actuation systems remain supported for decades.
