Application Scenarios
At a mid-sized automotive parts manufacturer in Germany, production line operators faced a critical bottleneck when a legacy S7-200-based conveyor control system suffered I/O module failure. The plant had 48 discrete sensors and actuators connected through failing expansion modules, threatening a complete line stoppage. Replacement with the Siemens 6ES7223-1BL22-0XA0 restored full functionality immediately, as the module is a drop-in replacement for earlier versions like the 6ES7223-1BL21-0XA0, requiring zero changes to the CPU program or hardware configuration . The 6ES7223-1BL22-0XA0 now supports 16 input channels for photo-eye sensors and 16 output channels for solenoid valves, maintaining the 4.5 ms input response time essential for high-speed pallet routing. Plant engineers reported a 100% uptime restoration within 30 minutes of installation, with the module’s opto-isolation eliminating previous ground-loop issues that had caused intermittent false triggers.
Parameters

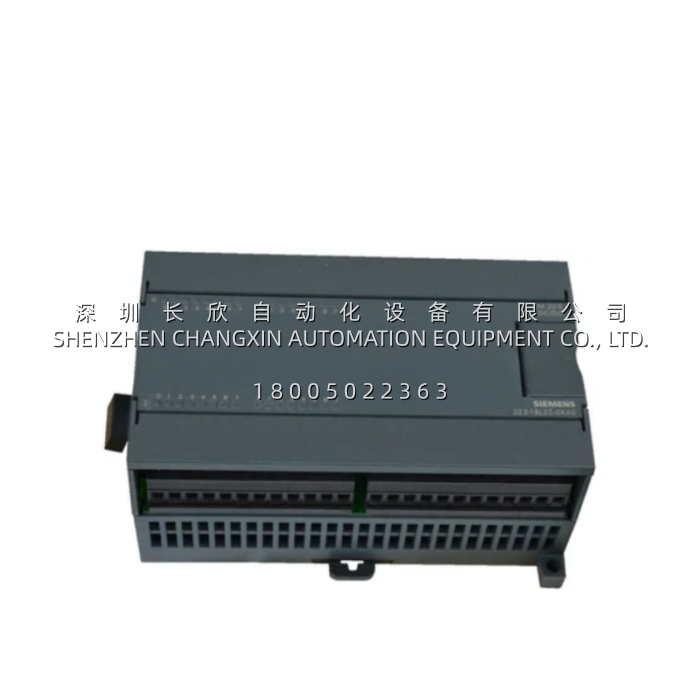

| Main Parameters | Value/Description |
|---|---|
| Product Model | 6ES7223-1BL22-0XA0 |
| Manufacturer | Siemens |
| Product Category | Digital Mixed I/O Expansion Module (EM 223) |
| Digital Inputs | 16 x 24 V DC, sink/source configurable |
| Input Voltage Range | 20.4 V to 28.8 V DC (rated 24 V) |
| Input Signal Thresholds | “0”: 0-5 V; “1”: 15-30 V DC |
| Input Current (Signal “1”) | 4 mA typical |
| Input Delay (0→1) | 4.5 ms max |
| Digital Outputs | 16 x 24 V DC transistor, source (PNP) |
| Output Current per Channel | 0.75 A (resistive/inductive load) |
| Output Group Current Limits | 3 A / 3 A / 6 A (per group) |
| Short-Circuit Protection | Not built-in; external fusing recommended |
| Galvanic Isolation | Optocoupler, groups of 4 channels |
| Backplane Current Draw | 160 mA max (5 V DC) |
| Power Loss | 6 W typical |
| Cable Length (shielded/unshielded) | 500 m / 150 m max |
| Dimensions (W×H×D) | 137.5 × 80 × 62 mm |
| Weight | Approx. 360 g |
| Mounting | DIN rail, S7-200 expansion bus connection |
Technical Principles and Innovative Values
Innovation Point 1: Flexible Input Configuration with Sink/Source Capability
The Siemens 6ES7223-1BL22-0XA0 supports both sink and source wiring for its 16 digital inputs, accommodating a wide range of field sensors including 2-wire proximity switches with permissible quiescent current up to 1 mA . This flexibility eliminates the need for separate input modules for different sensor types, reducing cabinet complexity and inventory requirements. In field applications, this feature allows the 6ES7223-1BL22-0XA0 to interface simultaneously with PNP and NPN sensors without additional signal conditioning.
Innovation Point 2: High-Density Output with Group Current Management
The module’s 16 transistor outputs deliver 0.75 A per channel, with intelligent group current distribution: groups are configured as 3 A / 3 A / 6 A across the output channels . This design allows the 6ES7223-1BL22-0XA0 to drive both small solenoid valves (requiring <0.75 A) and larger contactors by summing currents within a group. While short-circuit protection is not integrated—a deliberate design choice to maintain low cost and fast switching speed—the output transistors include inductive kickback suppression limiting shutdown voltage to L+ (-48 V) .
Innovation Point 3: Drop-In Compatibility with Zero Configuration
The 6ES7223-1BL22-0XA0 serves as a direct replacement for earlier revision modules such as the 6ES7223-1BL21-0XA0, with the S7-200’s automatic I/O addressing scheme eliminating the need for hardware configuration changes . This seamless upgrade path is critical for maintaining legacy systems where original modules are no longer available. The Siemens 6ES7223-1BL22-0XA0 automatically maps its 32 I/O points into the CPU’s address space without user intervention, reducing system downtime during module replacement from hours to minutes .
