Application Scenarios
A precision tooling OEM servicing legacy milling and drilling machines faced a familiar challenge: their installed base of SIMATIC S5-100U-controlled axes was beginning to show signs of IP267 module fatigue, causing intermittent step-loss and positioning drift. Downtime on a single machining center was costing upwards of several thousand dollars per hour. By sourcing genuine tested Siemens 6ES5267-8MA11 modules as strategic spares, the OEM was able to swap failing units in under 15 minutes per axis—the 204 kHz pulse output and 9V BUS backplane compatibility meant zero reprogramming, zero re-wiring, and immediate restoration of original accuracy.
In another instance, a textile machinery rebuilder standardized on the Siemens 6ES5267-8MA11 for pattern-driven fabric feed systems. The module’s capability to deliver up to 1,048,575 steps per job, combined with its 50-meter twisted-pair cable reach at 50 kHz, allowed distributed placement of stepper power stages across large loom frames without signal degradation. The front-panel sliding switch selecting between 5V and Vs (5-30V) output levels gave the builder plug-and-play flexibility across multiple driver brands, significantly simplifying bill-of-material management.
Parameter
| Main Parameters | Value/Description |
|---|---|

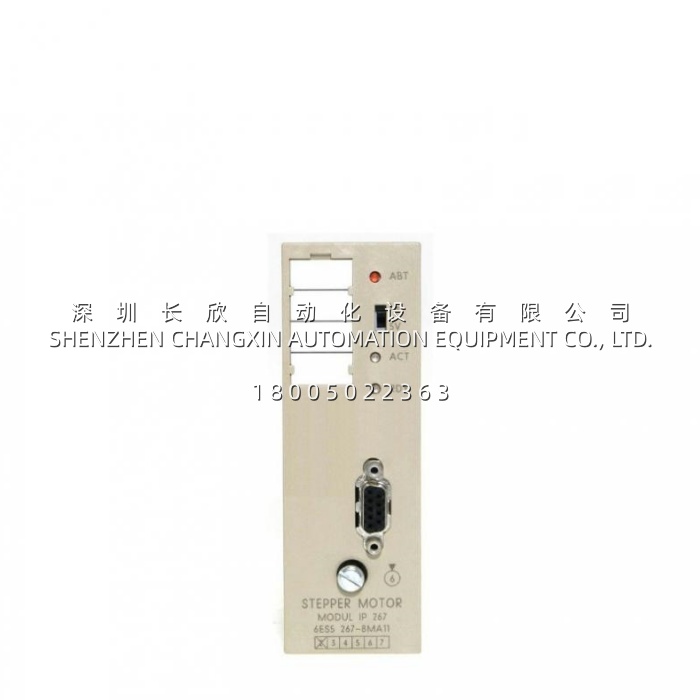

| Product Model | Siemens 6ES5267-8MA11 (also referenced as 6ES5 267-8MA11) |
| Manufacturer | Siemens AG |
| Product Category | Intelligent Peripheral (IP) – Single-Axis Stepper Motor Controller |
| PLC Compatibility | SIMATIC S5-90U / 95U / 100U / ET100U (analog address area); electrically compatible with S5-135U/155U slots subject to STEP 5 address verification |
| Controlled Axes | 1 axis (open-loop stepper control) |
| Backplane Supply | 9V BUS, approx. 150 mA current consumption |
| Special Voltage (Vs) | 5 to 30 V DC, front-panel sliding switch selects 5V or Vs signal level for power stage |
| Digital Inputs | 24V rated, non-isolated; “0” signal: -33V to 5V, “1” signal: 13V to 33V; typical 8.5 mA; two-wire BERO supply 22-30V |
| Pulse Output | 9-pin Subminiature D female connector: Clock (TN/TN_N) + Direction (RP/RP_N), 20mA short-circuit protected |
| Output Level (5V mode) | “0” ≤ 0.4V / “1” ≥ 4.5V |
| Output Level (Vs mode) | “0” ≤ 0.4V / “1” ≥ Vs – 0.4V |
| Maximum Output Frequency | 204 kHz (independent of output voltage) |
| Max Steps per Job | 2²⁰ – 1 = 1,048,575 pulses |
| Permissible Cable Length | 50 m at 50 kHz (twisted pair cable) |
| Slot Occupancy | S5 rack slots 0-7; 8 bytes reserved per slot, first 4 bytes exchanged with CPU (PIQ/PPI) |
| Status LEDs | RDY (configuration ready) / ACT (pulse output active) / ABT (interrupt, e.g., emergency limit PD triggered) |
| Operating Temperature | 0°C to +55°C (typical S5 rack environment) |
| Weight | Approx. 0.65 kg |
| Mounting | Direct insertion into S5 rack backplane slot 0-7 |
Technical Principles and Innovative Values
- Innovation Point 1 – Dedicated Pulse ASIC for Deterministic Motion: The Siemens 6ES5267-8MA11 integrates a specialized ASIC that generates jitter-free clock and direction signals at up to 204 kHz. Offloading pulse generation from the CPU ensures deterministic timing regardless of main program scan load, a critical advantage over bit-banging pulse output from general-purpose I/O.
- Innovation Point 2 – Configurable Signal Level via Front-Panel Switch: With a simple sliding switch, the Siemens 6ES5267-8MA11 adapts its output to either 5V TTL differential or 5-30V special voltage (Vs) levels, enabling direct connection to virtually any brand of external stepper power stage without additional level-shifting circuitry.
- Innovation Point 3 – Built-in Safety Interlock Logic: The module supports limit switches (I+, I-) and a dedicated emergency limit input (PD) that immediately disables pulse output upon activation. The PD input is “0”-active, circuit-monitored, and must be wired with NC contacts in series—ensuring fail-safe operation compliant with machinery safety expectations.
- Innovation Point 4 – Massive Step Count per Job: Supporting up to 1,048,575 steps in a single job at 204 kHz, the Siemens 6ES5267-8MA11 can command long, high-resolution moves without CPU intervention, freeing the central processor for higher-level sequencing, HMI communication, and process logic.
- Innovation Point 5 – Analog Address Area Architecture: By residing in S5-100U analog address slots 0-7 and exchanging data through the first 4 bytes of an 8-byte window (PIQ/PPI), the Siemens 6ES5267-8MA11 achieves deterministic, low-latency communication with the CPU while leaving the remaining 4 bytes available for future expansion—an elegant design that has kept these modules relevant for decades.
