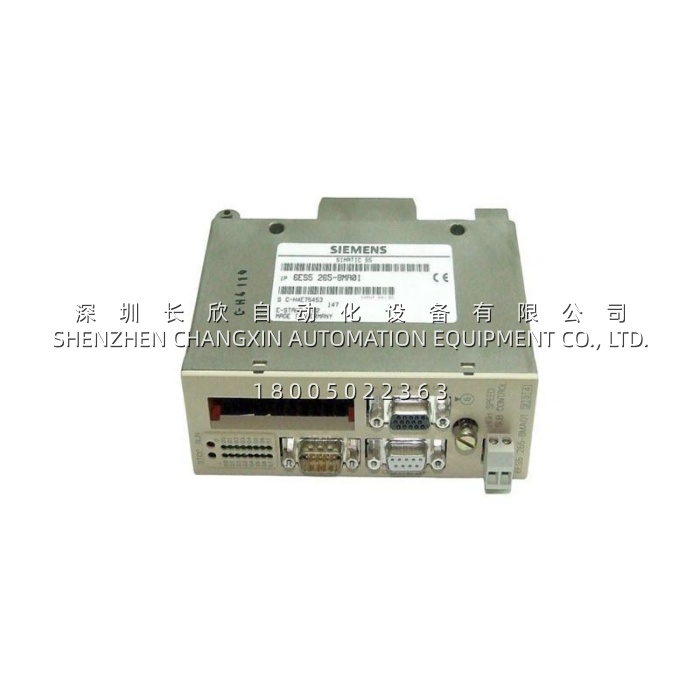

SIEMENS 6ES5265-8MA01 – The Essential S5 Spare for High-Speed Position Detection Systems

Description

The SIEMENS 6ES5265-8MA01, known as the IP265 High-Speed Sub-Control Module, is a specialized intelligent module from the SIMATIC S5 family designed to execute time-critical control tasks independently of the main CPU scan cycle. Unlike standard I/O modules, it functions as an autonomous co-processor that handles high-frequency pulse signals and executes user-defined logic at hardware speed.

Built around FPGA (Field-Programmable Gate Array) technology, the SIEMENS 6ES5265-8MA01 processes incremental encoder signals up to 500 kHz, performs 32-bit up/down counting, executes comparison functions, and triggers CPU interrupts—all while the S5 CPU continues its normal scan cycle uninterrupted. This parallel-processing architecture makes it indispensable for applications requiring microsecond-level response times that traditional PLC scan cycles cannot achieve.

Application Scenarios

In a coal-fired power plant, the SIEMENS 6ES5265-8MA01 is deployed within the TelepermXP system to perform online fast-closing time tests for steam turbine control valves. The test requires precise measurement of valve stroke time—from the moment a trip command is issued to the valve reaching its closed position—with accuracy down to milliseconds. The S5 CPU alone could not achieve this measurement resolution due to its cyclic scan delays. With the 6ES5265-8MA01 processing the high-speed position feedback at hardware speeds, the plant can now verify valve response times with the precision demanded by grid code requirements, ensuring turbine safety and dispatch compliance.

Parameters

Main Parameters	Value / Description
Product Model	SIEMENS 6ES5265-8MA01 (Order No. 6ES5 265-8MA01)
Manufacturer	Siemens (SIEMENS AG)
Product Category	IP265 High-Speed Sub-Control / Counter & Position Module
Core Processor	FPGA (Field-Programmable Gate Array), enabling true parallel processing at hardware speed
Maximum Count Frequency	≤ 500 kHz (with quadrature encoder evaluation)
Counting Range	32-bit up/down reversible counter
Digital Inputs (24V)	8 channels, 24V DC, typical 6.5mA, 10 kHz max, 24V “1” signal threshold
Digital Outputs (24V)	8 channels, 24V DC, 0.5A per channel, 2A total current, short-circuit protected
5V Differential Inputs	3 channels (A/B/Z), RS-422 compatible for incremental encoders
Expansion Interface	8 configurable I/O points for linking two IP265 modules together
Programming	COM265 software (MS-DOS based, runs on PG or PC), STEP 5 FC/FB calls, CSF format
Memory Requirement	EPROM/EEPROM submodule required for program storage (e.g., 6ES5 375-8LA11)
Compatible Systems	S5-90U, S5-95U, S5-100U, S5-115U, S5-135U, ET 200U (Slow mode)
Operating Temperature	0°C to +60°C

Technical Principles and Innovative Values

Innovation Point 1: FPGA-Based Parallel Processing Architecture
The SIEMENS 6ES5265-8MA01 is not a conventional PLC module—it is built around an FPGA that implements logic operations, counters, and comparisons in hardware rather than software loops. This parallel-processing architecture allows the module to execute its user program independently of the S5 CPU’s scan cycle, delivering response times that are unachievable by any PLC or DCS. Each signal path is processed simultaneously, eliminating the sequential bottleneck of CPU-based logic execution.

Innovation Point 2: True Hardware Interrupt Generation
When the 6ES5265-8MA01 reaches a preset comparison value or detects a specific input condition, it can trigger a hardware interrupt directly to the S5 CPU. This eliminates the polling delays inherent in CPU-based monitoring, enabling the main system to respond to critical events within microseconds rather than waiting for the next scan cycle. In valve testing applications, this feature ensures that the measured response time includes only mechanical delays—not system latency.

Innovation Point 3: Independent Sub-Process Control
The SIEMENS 6ES5265-8MA01 executes its own user program—stored on a separate EPROM/EEPROM submodule—completely autonomously from the CPU user program. The CPU can exchange parameters and status data via the I/O bus, but the module handles its assigned high-speed sub-processes independently, reducing the CPU interrupt load and enabling seamless parallel processing of both fast and slow control tasks.

Innovation Point 4: Configurable 32-Bit Counting with Multiple Signal Formats
Supporting both 24V PNP/NPN sensors and 5V RS-422 differential encoder signals, the 6ES5265-8MA01 offers exceptional interface flexibility. Its 32-bit up/down counter can be configured for single-channel pulse counting or dual-channel quadrature encoder evaluation with 4x interpolation, adapting to diverse application requirements from simple production counting to precision position control.

Innovation Point 5: Programmable in Control System Flowchart (CSF) Format
Programmed using COM265 software, the SIEMENS 6ES5265-8MA01 supports a CSF format similar to STEP 5, allowing engineers to build logic from familiar elements like AND/OR operations, counters, comparators, and time delays. This graphical approach reduces the learning curve for S5 programmers and enables rapid development of complex high-speed logic without specialized hardware description languages.
