Application Scenarios
In a high-output plastic injection molding facility, a bank of 12 machines relied on a fleet of Siemens 6ES5244-3AB31 modules to manage barrel zone temperatures with ±1°C accuracy. When one module began exhibiting erratic PID response due to aging electronics, the entire production cell faced scrap rates exceeding 15% from inconsistent melt temperatures. Maintenance engineers replaced the failing unit with a tested 6ES5244-3AB31 spare, which restored precision thermal control immediately. The module’s autotune function recalibrated the PID parameters for the specific barrel geometry within minutes, eliminating scrap and preventing a line stoppage that would have cost over $30,000 per hour .
Parameters

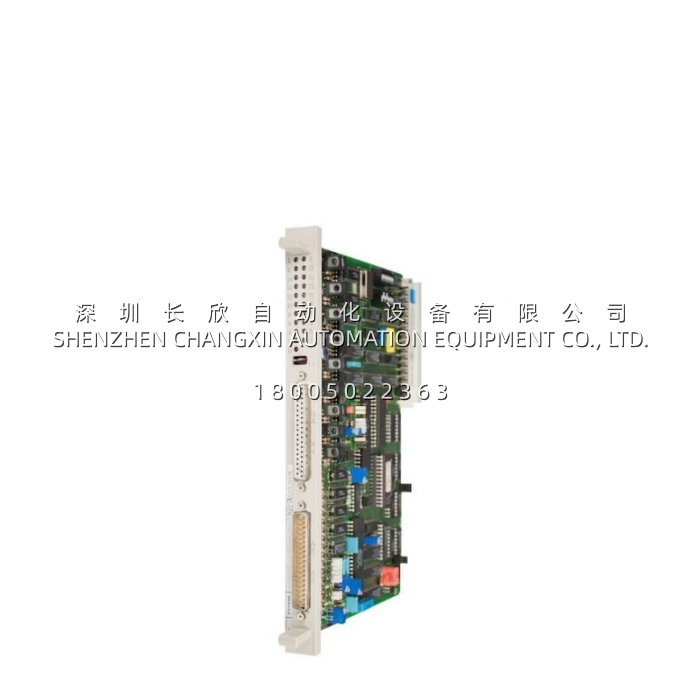

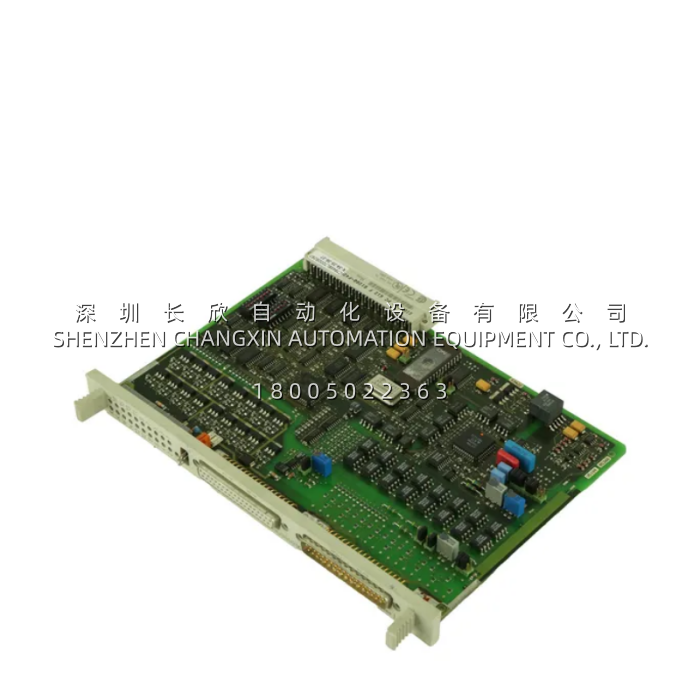

| Main Parameters | Value / Description |
|---|---|
| Product Model | Siemens 6ES5244-3AB31 (IP244B) |
| Manufacturer | Siemens AG (SIMATIC S5 Series) |
| Product Category | Intelligent Temperature / Closed-Loop Control Module |
| Temperature Input Channels | Up to 4, individually configurable |
| Input Signal Types | Thermocouples (J, K, S, R) and Pt100 RTD (2/3/4-wire) |
| Control Algorithm | PID with autotune, hand/auto bumpless transfer, limit monitoring |
| Control Output | PWM (SSR trigger) or analog per channel configuration |
| Measurement Resolution | 0.1°C / 12-bit+ (depends on sensor type) |
| Sampling/Cycle Time | 100–500 ms per channel (firmware dependent) |
| Diagnostics | Sensor wire-break detection, over-range alarm, module fault LED |
| Operating Temperature | 0°C to +60°C |
| Mounting Type | S5 Standard Rack Slot (DIN 41612 connector) |
| Protection Class | IP20 (for indoor cabinet installation) |
Technical Principles and Innovative Values
Innovation Point 1: Distributed Intelligence for CPU Workload Reduction
The Siemens 6ES5244-3AB31 houses its own microprocessor to handle real-time PID calculations, measured value acquisition via multiplexer and ADC, and limit value monitoring . This architecture offloads these intensive tasks from the S5 CPU, preserving processing bandwidth for higher-level logic and communication. Data exchange between the module and CPU occurs via 64 messages (each 32 bytes long), ensuring efficient and deterministic communication .
Innovation Point 2: Comprehensive Sensor Compatibility and Autotune
Unlike generic temperature controllers, the 6ES5244-3AB31 supports direct connection to multiple thermocouple types (Fe-CuNi, NiCr-Ni, PtRh-Pt) and Pt100 resistance thermometers without external transmitters . Its integrated autotune function automatically identifies the thermal characteristics of the controlled system and calculates optimal PID parameters—a feature that significantly shortens commissioning time and improves control stability in dynamic processes like injection molding cycle transitions .
Innovation Point 3: Flexible Control Output Strategies
The module operates as a switching two-step or three-step controller with percentage output based on the control algorithm stored in EPROM . Users can select from P, PI, PD, or PID control strategies by inputting appropriate parameters, making the 6ES5244-3AB31 adaptable for both simple on/off heating applications and sophisticated continuous modulation of electric heaters or steam valves.
