Application Scenarios
In a large-scale chemical processing plant, a critical batch reactor relied on outdated mechanical temperature control systems that frequently caused overshoot during heating phases, leading to costly off-spec product and safety shutdowns. By integrating the Siemens 6ES5244-3AA13 into the existing S5-135U distributed control system (DCS), the engineering team achieved granular control over the heating jackets. The module’s ability to process inputs from multiple RTD sensors and execute sophisticated PID algorithms allowed for dynamic adjustment of steam valves. Consequently, the plant experienced a 30% reduction in batch cycle time, eliminated thermal runaway incidents, and ensured consistent product quality, safeguarding their operational license. This real-world application highlights how the Siemens 6ES5244-3AA13 acts as the nerve center for thermal stability in heavy industry.

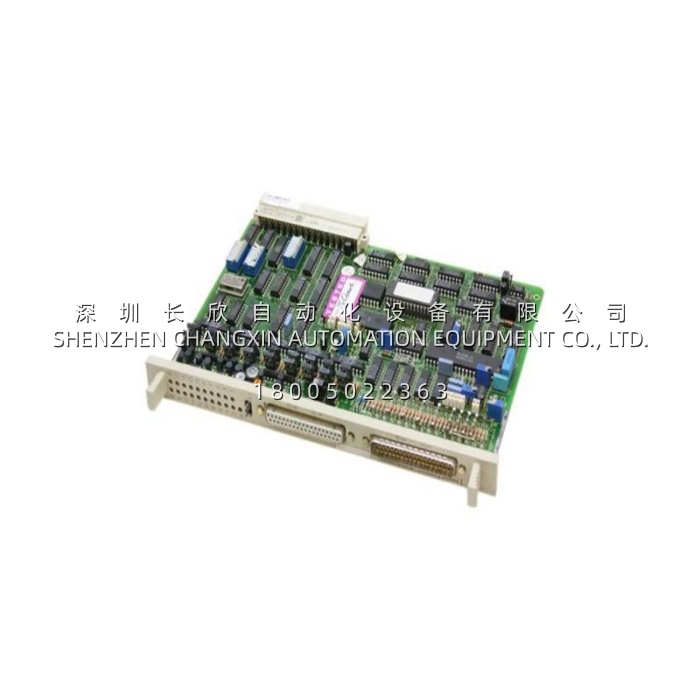

Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6ES5244-3AA13 |
| Manufacturer | Siemens |
| Product Category | Compact Temperature Control Module / Analog I/O Card |
| Series | SIMATIC S5 / IP244 Series |
| Primary Function | Temperature regulation, analog signal processing, and data acquisition . |
| Operating Voltage | 24V DC |
| Current Consumption | Approx. 200mA (Output current capacity) |
| Input Configuration | Multi-channel thermocouple (TC) and RTD (PT100) compatible inputs for flexible sensor interfacing. |
| Output Configuration | Analog outputs for controlling actuators such as control valves, solid-state relays, or variable frequency drives. |
| Operating Temperature | -25°C to +60°C |
| Physical Dimensions | Approx. 80mm (W) x 100mm (H) x 60mm (D) |
| Installation Standard | Eurocard format with front-side D-sub connectors for easy DIN rail or panel mounting. |
Technical Principles and Innovative Values
- Advanced PID Algorithm Integration: Unlike standard digital I/O modules, the Siemens 6ES5244-3AA13 houses a dedicated microprocessor that runs high-precision PID control loops directly on the card. This eliminates the need to overload the central CPU with complex mathematical calculations, thereby increasing the overall scan time efficiency of the PLC.
- Multi-Sensor Signal Conditioning: The module features built-in linearization and cold-junction compensation for thermocouples, as well as 3-wire connection support for RTDs. This innovation ensures high-accuracy temperature readings even over long cable runs in electrically noisy industrial environments.
- Plug-and-Play Modular Design: Designed for the S5 backplane system, the 6ES5244-3AA13 utilizes standardized D-sub connectors for field wiring. This design significantly reduces installation errors and commissioning time compared to hardwired proprietary systems.
- Decentralized Control Capability: Acting as a local control unit, it can execute autonomous control actions based on predefined setpoints. This allows for distributed automation architectures where critical temperature zones maintain control even during brief communication disruptions with the main CPU.
Application Cases and Industry Value
Case Study 1: Food & Beverage Sterilization Line
A major beverage manufacturer faced production bottlenecks due to slow temperature response in their tunnel sterilizers. The existing control system lacked the granularity needed for pasteurization. Engineers installed the Siemens 6ES5244-3AA13 to manage the flow of hot water and steam. The module’s fast response time allowed for tighter temperature tolerances (+/- 0.5°C), which helped the company achieve higher sterilization ratings without overcooking the product, resulting in a significant increase in yield.
Case Study 2: Pharmaceutical Reactor Cooling
In a pharmaceutical R&D facility, a pilot reactor required extremely stable cooling for a sensitive exothermic reaction. The engineering team leveraged the Siemens 6ES5244-3AA13 to interface with a high-precision chiller. The module’s robust analog outputs provided smooth control signals to modulate the coolant flow, preventing thermal shock to the biological cultures. This precision was crucial for meeting stringent FDA validation requirements.
