Application Scenarios
A high-speed flexible packaging line in the food and beverage industry was experiencing missed counts and inconsistent cut-to-length accuracy whenever the film web speed exceeded certain thresholds. The S5-135U CPU could not sample the encoder pulses fast enough within its standard scan cycle, resulting in product waste and frequent re-calibration. By installing the 6ES5242-1AA41 into the central rack, the engineering team offloaded all pulse-counting tasks to the dedicated module. The 6ES5242-1AA41 captured quadrature encoder signals at full line speed, performed 32-bit up/down counting, and triggered compare outputs at exact preset positions—all without consuming CPU scan time. Cut-to-length accuracy improved dramatically, and material waste dropped by double digits within the first month of operation. For plants running legacy S5 systems, the 6ES5242-1AA41 is the difference between retiring a perfectly good control architecture and unlocking new levels of precision from existing assets.
Parameter
| Main Parameter | Value / Description |
|---|---|
| Product Model | 6ES5242-1AA41 |
| Manufacturer | Siemens AG |

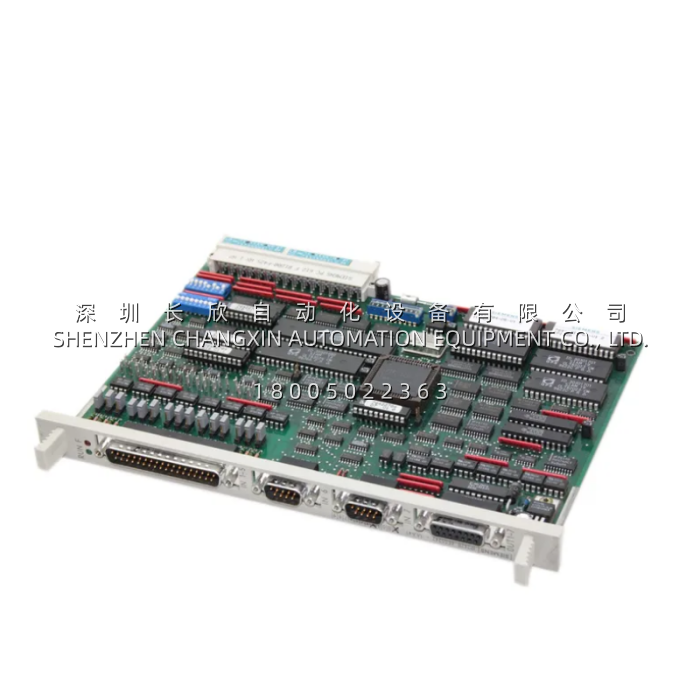

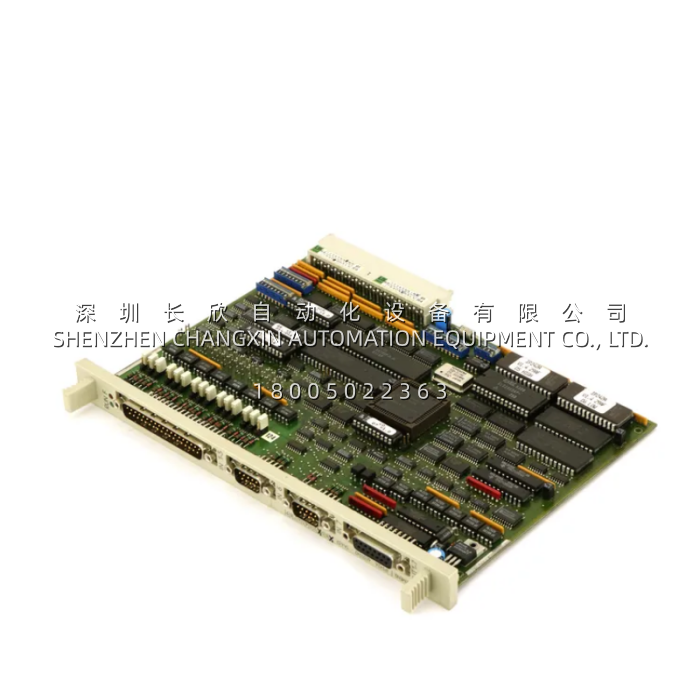

| Product Category | IP 242B High-Speed Counter Module (Intelligent Process Module) |
| Compatible Host Systems | SIMATIC S5-115U, S5-135U, S5-155U central racks and expansion units |
| Counter Channels | 7 independent channels (5 × 16-bit + 2 × 32-bit up/down) |
| Counting Width | 16 bits (channels 1–5), 32 bits (channels 6–7) for IP 242B |
| Counting Modes | 19 operation modes including up, down, up/down, pulse-direction, quadrature (A/B) |
| Maximum Input Frequency | Up to 500 kHz for 5 V (RS422) signals on gate inputs; typical 10 kHz per channel for 24 V conditioned signals |
| Input Signal Types | 24 V DC sink/source (via plug-in jumper conditioning); 5 V RS422 for encoder channels 6–7 |
| On-Board Processor | 16-bit microprocessor 80C186 with AM9513A programmable counter ICs |
| Data Exchange | Dual-port RAM with S5 bus interface (page frame addressing) |
| Parameter Storage | On-board EEPROM for persistent configuration |
| Interface | 1 × 48-pin male backplane connector + 1 × 32-pin removable screw terminal block |
| Power Supply | 5 V DC from S5 backplane (typical 0.8 A, ~4 W consumption) |
| Status Indicators | 1 green “RUN” LED, 1 red “FAULT” LED, plus channel activity LEDs |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Configuration Software | STEP 5 with dedicated function blocks (FB 183/184 for IP 242B) |
| Mounting | Single-slot S5 rack module |
| Approximate Dimensions | 200 mm × 250 mm × 30 mm (8″ × 10″ × 1″) |
| Approximate Weight | 0.5 kg (1.1 lbs) |
Technical Principles and Innovative Values
- Innovation Point 1: Distributed Counting Intelligence. The 6ES5242-1AA41 integrates a 16-bit 80C186 microprocessor and seven dedicated AM9513A counter ICs directly on the module. This architecture means high-speed pulse trains are captured and processed locally, communicating only summarized data and events to the CPU via dual-port RAM. The result: CPU scan time is preserved even in applications with multiple high-frequency encoders running simultaneously.
- Innovation Point 2: 32-Bit Counting Depth for Channels 6 & 7. While the IP 242A offered 24-bit depth, the 6ES5242-1AA41 extends channels 6 and 7 to 32-bit up/down counters capable of acquiring 90°-displaced quadrature signals from incremental encoders. This allows position tracking over extremely long travel distances without overflow concerns—critical for applications like gantry positioning, spindle rotation counting, and continuous web processing.
- Innovation Point 3: 19 Configurable Operation Modes. Through STEP 5 function blocks FB 183/184, the 6ES5242-1AA41 can be parameterized into 19 distinct operating modes. Users can implement hardware gating, start/stop control, prescalers, frequency generation, and trace functions (recording measured value sequences) without writing custom assembly code. This flexibility makes a single module suitable for counting, measuring, positioning, and monitoring tasks alike.
- Innovation Point 4: Field-Signal Conditioning via Plug-in Jumpers. The 6ES5242-1AA41 front panel includes configurable solder bridges and resistor jumpers that adapt the input circuitry to 5 V or 24 V signal levels. This on-board conditioning eliminates the need for external signal converters in most applications, though proper configuration is essential—incorrect jumper settings can damage the module and connected sensors.
