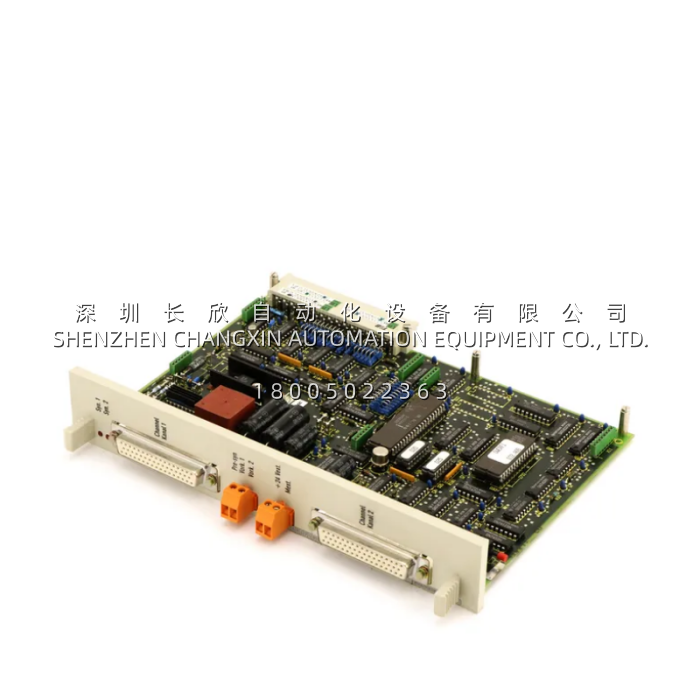

SIEMENS 6ES5241-1AA12 SIMATIC S5 IP 241 Basic Module – Engineered for Precise Incremental Encoder Signal Decoding

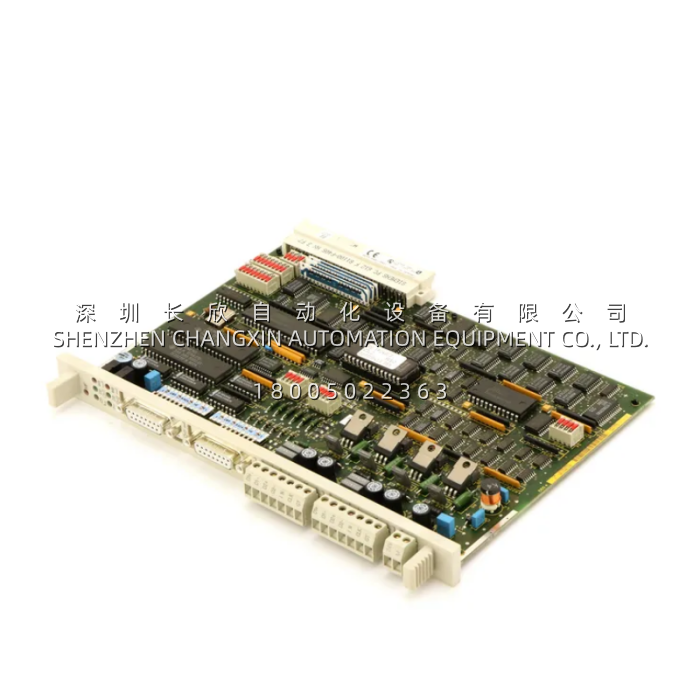

SIEMENS 6ES5241-1AA12 SIMATIC S5 IP 241 Basic Module – Engineered for Precise Incremental Encoder Signal Decoding - Image 2

SIEMENS 6ES5241-1AA12 SIMATIC S5 IP 241 Basic Module – Engineered for Precise Incremental Encoder Signal Decoding

Product Overview

The SIEMENS 6ES5241-1AA12 is a digital position decoder basic module belonging to the renowned SIMATIC S5 IP 241 family, engineered by Siemens to provide high-speed, high-precision position decoding for incremental encoders within classic S5 programmable controller architectures. As the compact 2-channel version of the IP 241 platform, the SIEMENS 6ES5241-1AA12 is designed to occupy a single slot in SIMATIC S5-115U, S5-135U, and S5-155U central racks, serving as the critical interface between rotary or linear incremental encoders and the S5 CPU. Through dedicated function blocks FB156 (PER:WPA) and FB157 (PER:WST), the SIEMENS 6ES5241-1AA12 enables sophisticated position acquisition, zero-mark synchronization, average value calculation, and interrupt-driven position monitoring—capabilities essential for winding control, length cutting, robotics joint positioning, and CNC coordinate detection.

Positioned as a basic module within the modular IP 241 system, the SIEMENS 6ES5241-1AA12 handles the core decoding logic and communicates with the programmable controller via the rack I/O bus, while encoder-specific signal conditioning is delegated to plug-on matching modules (such as 6ES5241-1AB12 for incremental, 1AC12 for Gray-code Excess-3 BCD, and 1AD12 for binary/BCD absolute encoders). Each of the two independent channels processes A/B phase signals (with 90-degree phase shift for direction detection) and optional Z-phase zero reference, supporting a maximum input frequency of 50kHz per channel. With 32-bit signed counting range from -2,147,483,648 to +2,147,483,647, the SIEMENS 6ES5241-1AA12 delivers exceptional resolution and dynamic range for demanding motion control loops.

Although Siemens officially declared the SIEMENS 6ES5241-1AA12 obsolete effective April 1, 2012, it remains an absolutely critical spare part for thousands of industrial facilities worldwide that continue to rely on SIMATIC S5 technology for mission-critical automation. The module’s proven reliability, UL and CSA approvals (valid for IP 241 basic and matching modules), and extensive installed base make the SIEMENS 6ES5241-1AA12 the definitive choice for maintaining operational continuity in legacy motion control applications across manufacturing, process industry, and material handling sectors.

Description

Technical Specifications

Parameter	Value
Product Model	SIEMENS 6ES5241-1AA12
Manufacturer	Siemens AG
Product Type	SIMATIC S5 IP 241 Digital Position Decoder Basic Module
Module Version	2-Channel Compact Version
Compatible PLC Platform	SIMATIC S5-115U, S5-135U, S5-155U
Number of Channels	2 (independent dual-channel operation)
Encoder Compatibility	Incremental encoders (A/B/Z signals)
Input Signal Level	10-30V symmetric (TTL/HTL compatible)
Maximum Input Frequency	50kHz per channel
Counting Resolution	32-bit signed integer
Count Range	-2,147,483,648 to +2,147,483,647
Basic Module Supply	5V DC / 1A (via S5 rack backplane)
Encoder Supply	24V DC / 0.18A (external connection at power supply connector)
Function Blocks Supported	FB156 (PER:WPA), FB157 (PER:WST)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to +70°C
Protection Rating	IP20 (for installation in module rack)
Isolation Class	Class “C” according to VDE 0110
Approvals	UL and CSA approved (with matching modules)
Module Weight	0.53 kg
Commodity Code	85389091
Mounting	Standard S5 rack slot
Lifecycle Status	Discontinued by manufacturer since April 1, 2012; available as new surplus / refurbished spare part

Main Features and Advantages

Dual-Channel Independent Decoding Architecture:

The SIEMENS 6ES5241-1AA12 provides two fully independent decoding channels, each capable of processing quadrature A/B signals with Z-phase zero reference from separate incremental encoders. This dual-channel architecture enables the SIEMENS 6ES5241-1AA12 to simultaneously monitor two motion axes—such as master/slave winding pairs, X/Y coordinate axes, or dual-conveyor synchronization—without additional hardware. Each channel operates with a maximum input frequency of 50kHz, supporting high-resolution encoders and fast linear/rotary motion profiles.

Deep Integration with SIMATIC S5 Function Blocks:

The SIEMENS 6ES5241-1AA12 is natively supported by Siemens standard function blocks FB156 (PER:WPA) for actual value reading and FB157 (PER:WST) for setpoint writing. These function blocks abstract the complexity of interrupt handling, scratchpad flag management, and average value calculation, allowing control engineers to rapidly implement sophisticated position control strategies. The SIEMENS 6ES5241-1AA12 supports a full range of operating modes including continuous counting, periodic counting, zero-synchronized counting, preset value loading, and hardware/software synchronization—delivering the flexibility required for diverse motion control scenarios.

Robust Signal Conditioning and Diagnostics:

The SIEMENS 6ES5241-1AA12 incorporates configurable input amplifiers with selectable hysteresis, ensuring reliable decoding even in electrically noisy industrial environments. The module provides comprehensive diagnostic capabilities including wire-break monitoring, overflow alarms, and zero-mark loss detection. A red SF (group fault) LED indicates anomalies such as signal loss or internal errors, while a green 24V LED confirms proper external power supply. These built-in diagnostics dramatically simplify troubleshooting and reduce mean-time-to-repair for the SIEMENS 6ES5241-1AA12 in field deployments.

Modular Matching Module Ecosystem:

While the SIEMENS 6ES5241-1AA12 serves as the basic decoding engine, its true versatility emerges through the IP 241 matching module ecosystem. By pairing the SIEMENS 6ES5241-1AA12 with 6ES5241-1AB12 (incremental), 6ES5241-1AC12 (Gray-code Excess-3 BCD absolute), or 6ES5241-1AD12 (binary/BCD absolute), system designers can accommodate any encoder topology—from simple TTL incremental to complex absolute multi-turn encoders with serial SSI interfaces. This modular approach protects the investment in the SIEMENS 6ES5241-1AA12 across evolving application requirements.

Exceptional Reliability and Longevity:

Built to Siemens’ legendary SIMATIC quality standards, the SIEMENS 6ES5241-1AA12 delivers decades of dependable service in demanding industrial environments. Its IP20-rated construction, VDE 0110 Class “C” isolation, and operating temperature range of 0 to 55°C ensure stable performance in control cabinet installations worldwide. The module’s discontinuation by Siemens in 2012 is a testament to its mature, refined design—having reached such reliability that further development was deemed unnecessary. Today, the SIEMENS 6ES5241-1AA12 continues to prove its worth as a long-life spare part, with refurbished units routinely operating flawlessly for years post-restoration.
