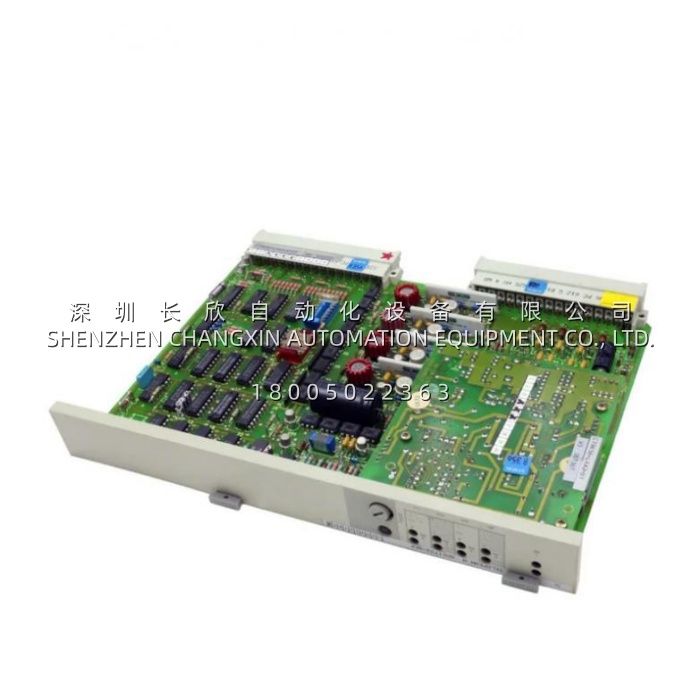

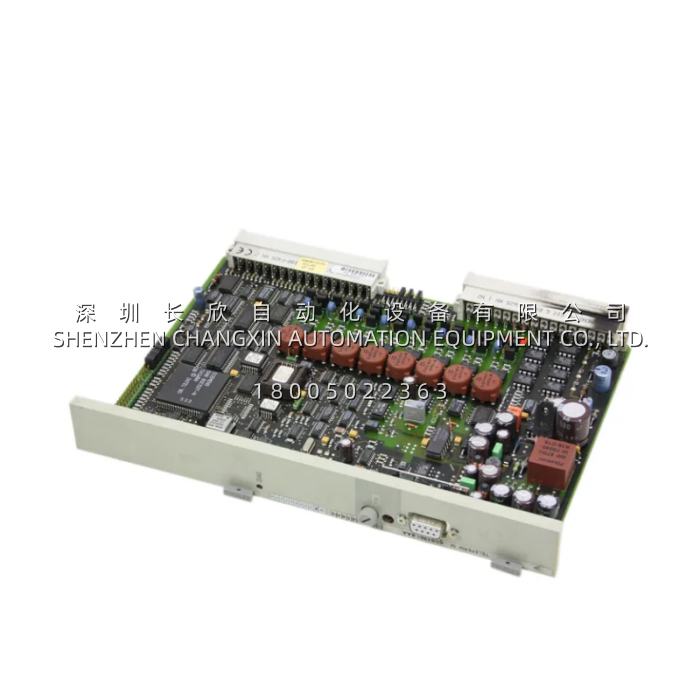

SIEMENS 6DS1701-8AA Analog I/O Module for TELEPERM M Systems

Product Overview

The SIEMENS 6DS1701-8AA is a high-performance analog module meticulously engineered for the TELEPERM M distributed control system (DCS), a platform renowned for its reliability in power generation and heavy industrial process automation. While extensively documented as a precise analog input module, the SIEMENS 6DS1701-8AA also serves a critical function as an 8-channel analog output module in many configurations. Its core purpose is to act as the vital interface between the AS 220/260 automation station’s digital control core and the physical field devices, translating complex control algorithms into stable, actionable current signals .

The SIEMENS 6DS1701-8AA is specifically designed to convert digital setpoints into 4-20 mA industrial standard signals to drive final control elements such as modulating valves, pneumatic actuators, and variable speed drives . It is a key component for maintaining the operational integrity of legacy TELEPERM M systems, which continue to be the backbone of many power plants and chemical facilities. Each of its eight channels is independently isolated and features electronic short-circuit protection and NAMUR-compliant open-circuit detection. This ensures that a single-channel fault does not compromise the safety or availability of the entire module, a critical feature for preventing unnecessary plant trips. The board integrates seamlessly into the TELEPERM M subrack, receiving power and communicating with the central processing unit via the dedicated system bus, making it an essential “drop-in” replacement or spare part for aging infrastructure.

Technical Specifications

Parameter Name	Value
Product Model	6DS1701-8AA
Manufacturer	Siemens (西门子)
Product Type	Analog I/O Module (AI / AO)
Series/Platform	TELEPERM M (AS 220 / AS 260)
Number of Channels	8 (Isolated)
Signal Type	4-20 mA (Configurable for 0-20 mA)
Resolution	12-bit + Sign Bit
Load Capacity (AO Mode)	Max. 600 Ω (at 24 V DC)
Electrical Isolation	2.5 kV test voltage (Channel-to-Channel & Channel-to-Ground)
Operating Temperature	0 °C to +60 °C
Storage Temperature	-25 °C to +70 °C
Communication Interface	TELEPERM M System Bus
Protection Features	Short-circuit protection, Open-circuit detection (NAMUR)
Mounting Type	Subrack / Backplane Plug-in
Weight	Approx. 0.35 kg

Main Features and Advantages

Exceptional Signal Integrity and Noise Immunity:
The SIEMENS 6DS1701-8AA excels in harsh industrial environments where electrical noise is prevalent. The fully isolated architecture, tested at 2.5 kV, effectively eliminates ground loops and prevents common-mode interference from corrupting the control signal. This ensures that the output current remains precise and stable, unaffected by the heavy electrical loads and switching transients common in power plants. The module provides true “galvanic isolation,” ensuring that if a field device or cable develops a fault, the damage is contained to that single channel, preventing a system-wide failure and maintaining the safety of the plant .

Robust Actuator Driving Capability:
Thanks to its robust design, the SIEMENS 6DS1701-8AA can drive loads up to 600 Ω. This high drive capability is particularly advantageous for older installations where valve actuators are located far from the control room, or where the existing field cabling has high inherent resistance. The module ensures the signal reaches the end device with enough power to move the valve effectively, eliminating the need for expensive signal repeaters or cable replacements. This feature extends the service life of the TELEPERM M system and leverages existing plant infrastructure .

Comprehensive Self-Diagnostics and Hot-Swap Ready:
The SIEMENS 6DS1701-8AA features a sophisticated onboard diagnostics system. LED indicators provide immediate visual feedback on the status of each channel, enabling rapid troubleshooting. The module supports open-circuit monitoring (NAMUR NE43) and short-circuit current limiting, automatically detecting and reporting faults to the CPU. This allows maintenance teams to identify issues before they escalate, minimizing downtime. The ability to replace the SIEMENS 6DS1701-8AA online without interrupting power to the subrack—a common feature of the TELEPERM M architecture—further enhances system uptime, making it a low-risk, high-reliability component.

Proven Longevity and “New Surplus” Availability:
As TELEPERM M has been declared End-of-Life (EOL) by Siemens, new modules are no longer in production. However, the SIEMENS 6DS1701-8AA remains highly available through the “New Surplus” and thoroughly “Tested Used” markets . This availability ensures that operators can continue to sustain their legacy DCS systems for years to come, avoiding the massive capital expenditure of a full system migration while maintaining the same time-tested reliability.
