Application Scenarios
A pharmaceutical packaging facility operating multiple SIMATIC MP377 panels faced recurring data corruption issues when using third-party SD cards for recipe storage and firmware updates. After switching to the Siemens 6AV6671-8XB10-0AX1, the facility eliminated data integrity problems and achieved reliable backup and restoration of HMI projects. The 6AV6671-8XB10-0AX1 enabled operators to quickly transfer updated screen configurations and alarm logs between panels, significantly reducing system downtime during changeovers and maintenance activities.
The Siemens 6AV6671-8XB10-0AX1 addresses the critical pain point of storage reliability in HMI-dependent automation systems. In production environments where recipe integrity and alarm traceability are essential for regulatory compliance, using a Siemens-certified memory card ensures data is written and retrieved without errors . The card’s write protection switch provides an additional layer of security, preventing accidental overwrites of critical system files .
Parameters
| Main Parameters | Value/Description |
|---|---|

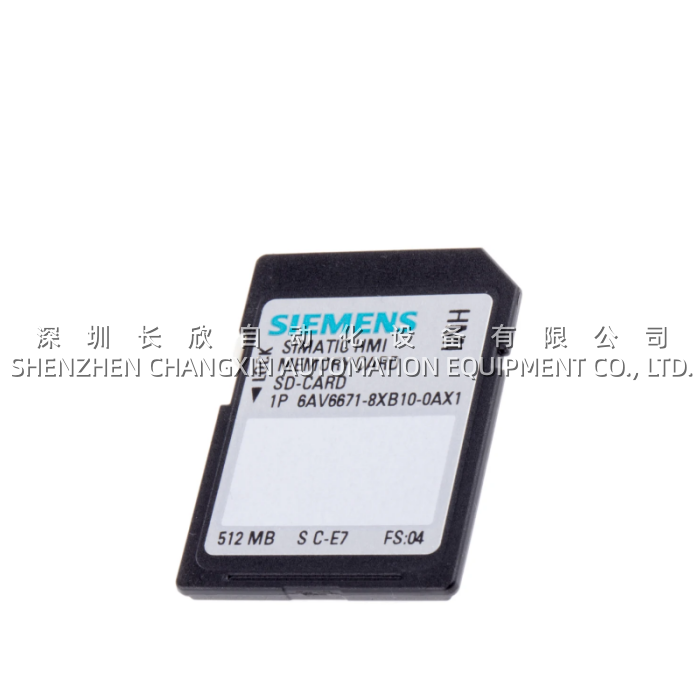

| Product Model | 6AV6671-8XB10-0AX1 |
| Manufacturer | Siemens AG |
| Product Category | SIMATIC SD Memory Card (Secure Digital) |
| Memory Capacity | 512 MB |
| Card Format | SD (Secure Digital) |
| Supply Voltage | 3.3 V DC (max. 3.6 V) |
| Current Consumption | 100 mA (typical, max.) |
| Data Transfer Rate (Read/Write) | Min. 1.6 Mbit/s (newly formatted, typical) |
| Write/Read Cycles | > 100,000 per cell; > 3,000,000 per card |
| Insertion Cycles | Typ. 10,000 |
| Write Protection | Yes (switch on card; effectiveness device-dependent) |
| Operating Temperature | 0 °C to +50 °C |
| Storage/Transport Temperature | -20 °C to +60 °C |
| Dimensions (W x H x Thickness) | 24 mm x 32 mm x 2.1 mm |
| Weight | Approx. 3 g (without packaging) |
| Certifications | CE, UL, cULus, KC, EAC, RoHS, ATEX Zone 2/22, Marine approvals (GL, ABS, BV, DNV, LRS, Class NK, PRS, CCS) |
Technical Principles and Innovative Values
Innovation Point 1: Industrial-Grade Wear Leveling and Endurance
The Siemens 6AV6671-8XB10-0AX1 implements advanced wear leveling technology that distributes write operations evenly across memory cells. This extends the card’s lifespan to over 100,000 write/read cycles per cell and more than 3,000,000 cycles per card . Standard consumer SD cards lack this technology and can fail prematurely under the frequent write operations typical of industrial HMI logging and recipe updates.
Innovation Point 2: Factory-Preloaded System Files
Unlike off-the-shelf SD cards, the 6AV6671-8XB10-0AX1 ships with pre-installed Siemens system files specific to SIMATIC HMI operation . This ensures instant compatibility with target devices and eliminates the risk of formatting errors that could render a card unusable. The card is explicitly designed not to be formatted by the user, preserving its functional integrity .
Innovation Point 3: Comprehensive ATEX and Marine Certifications
The Siemens 6AV6671-8XB10-0AX1 is certified for use in hazardous areas (ATEX Zone 2 and Zone 22, IECEx, FM Class I Division 2) and holds approvals from major maritime classification societies including GL, ABS, BV, DNV, LRS, Class NK, PRS, and CCS . This makes the 6AV6671-8XB10-0AX1 suitable for deployment in explosive atmospheres and offshore environments, where standard memory cards would not be permitted.
Innovation Point 4: Write Protection and Data Integrity
The physical write protection switch on the Siemens 6AV6671-8XB10-0AX1 provides a hardware-level safeguard against accidental data modification or deletion . In critical applications where HMI configuration and alarm logs must remain tamper-proof, this feature ensures data integrity without relying on software-based protections.
