Application Scenarios
In a recent packaging line upgrade at a food processing facility, engineers needed a reliable and cost-effective operator interface for a S7-200 SMART-based conveyor control system. The Siemens 6AV6648-0CE11-3AX0 was selected for its direct Ethernet connectivity to the PLC, eliminating the need for additional communication converters. The 10.1-inch widescreen display allowed operators to monitor line speed, product counts, and fault conditions simultaneously, while the USB host port enabled quick firmware updates and recipe backups using a standard USB drive . Operators appreciated the improved touch sensitivity of the V3 panel, which reduced input errors and accelerated production changeovers.
At a water treatment plant, the 6AV6648-0CE11-3AX0 was deployed as the primary HMI for a LOGO!-based pump control system. The panel’s ability to connect to up to four controllers via Ethernet enabled centralized monitoring of multiple pumping stations from a single interface . The hardware real-time clock proved essential for logging operating hours and scheduling preventive maintenance, while the data logging capability allowed operators to export CSV files directly via USB for compliance reporting. The plant achieved a 30% reduction in troubleshooting time and significantly improved operational visibility across the entire facility.
Technical Specifications

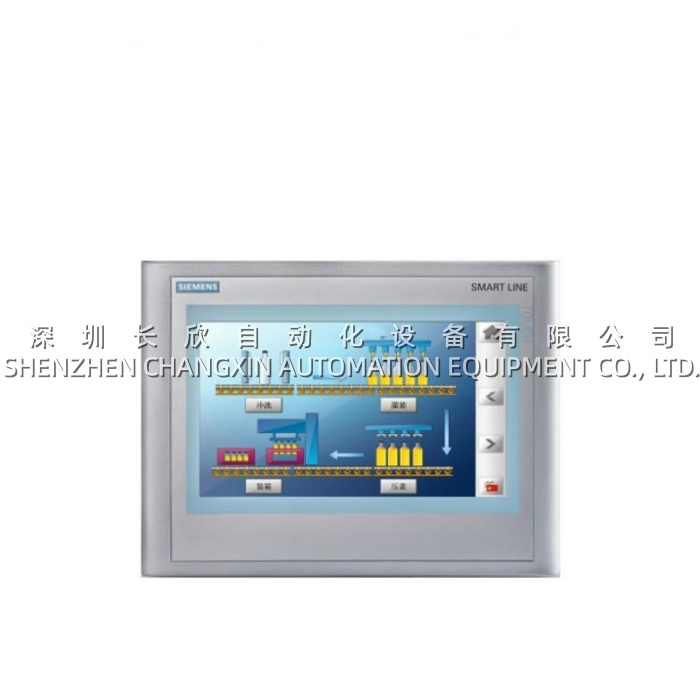

| Main Parameters | Value/Description |
|---|---|
| Product Model | 6AV6648-0CE11-3AX0 |
| Manufacturer | Siemens (SIMATIC) |
| Product Category | Smart Panel / HMI Touch Panel |
| Product Type | Smart 1000 IE V3 (Third Generation) |
| Display | 10.1″ Widescreen TFT, 65,536 colors |
| Resolution | 1024 × 600 pixels (wide format) |
| Touch Technology | Analog resistive touchscreen |
| Processor | ARM, 600 MHz |
| User Memory | Flash and RAM onboard |
| Supply Voltage | 24 V DC (19.2–28.8 V range), 230 mA typical, 370 mA max |
| Communication Interfaces | 1× Ethernet (RJ45, 10/100 Mbit), 1× RS-422/485 (auto-sensing) |
| USB Port | 1× USB 2.0 host (for mouse, hub, memory stick) |
| Hardware Clock (RTC) | Yes, with 6-week buffering |
| Protection Rating | Front IP65, rear IP20 |
| Dimensions (W×H×D) | Display area: 222.7 × 125.3 mm |
| Backlight MTBF | 15,000 hours at 25°C |
| Operating Temperature | 0°C to +50°C (vertical mounting), 0°C to +40°C (max tilt 35°) |
| Configuration Software | WinCC flexible SMART V3 (or higher) |
| Certifications | CE |
Technical Principles and Innovative Values
Innovation Point 1: Third-Generation Design Optimization
The Siemens 6AV6648-0CE11-3AX0 represents a significant leap forward from previous Smart Panel generations. Compared to the V2 Smart 1000 IE (800×480 resolution), the V3 model offers 1024×600 widescreen resolution and dramatically improved touch sensitivity . The black-gray housing distinguishes it visually from its predecessors, while the panel now supports both horizontal and vertical mounting orientations, providing greater flexibility for space-constrained applications .
Innovation Point 2: Enhanced Connectivity and Multi-Controller Support
Unlike earlier generations limited to serial communication, the 6AV6648-0CE11-3AX0 leverages its integrated Ethernet interface to communicate with up to four controllers simultaneously, including S7-200, S7-200 SMART, and LOGO! devices . The RS-422/485 interface now features auto-sensing capability, eliminating the need for manual DIP switch configuration present in older models . This streamlined connectivity significantly reduces commissioning time and simplifies system integration.
Innovation Point 3: Integrated USB and Data Logging Capabilities
The USB 2.0 host port on the 6AV6648-0CE11-3AX0 adds unprecedented flexibility to the Smart Line. Operators can connect USB memory sticks for archiving data and alarms, backing up and restoring projects, and storing recipes directly at the panel . The data logging feature supports CSV file generation for easy analysis with MS Excel, bridging the gap between plant-floor operations and enterprise-level quality management systems.
Innovation Point 4: Hardware Real-Time Clock for Time-Stamped Events
The 6AV6648-0CE11-3AX0 includes a hardware real-time clock with 6-week buffering, enabling accurate time-stamping of alarms, events, and logged data even during power outages . This capability is essential for regulatory compliance, shift reporting, and root-cause analysis in pharmaceutical, food processing, and water treatment applications where traceability is critical.
