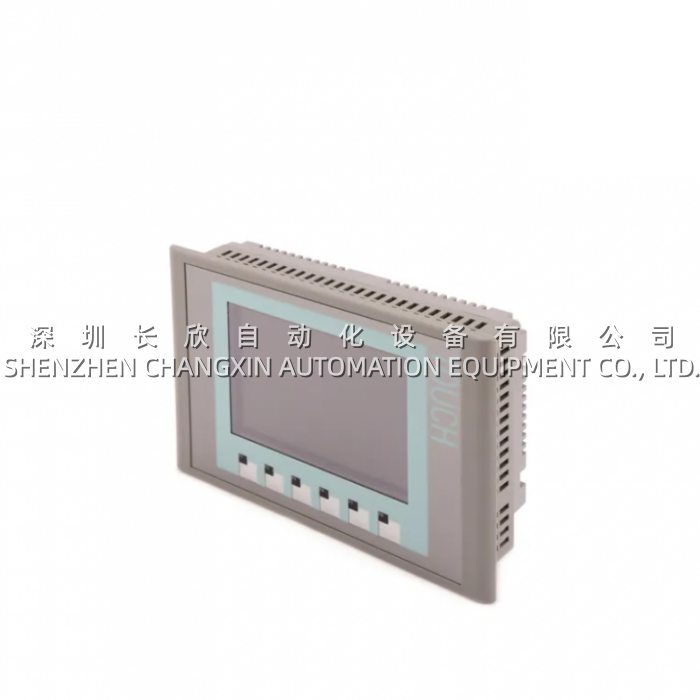

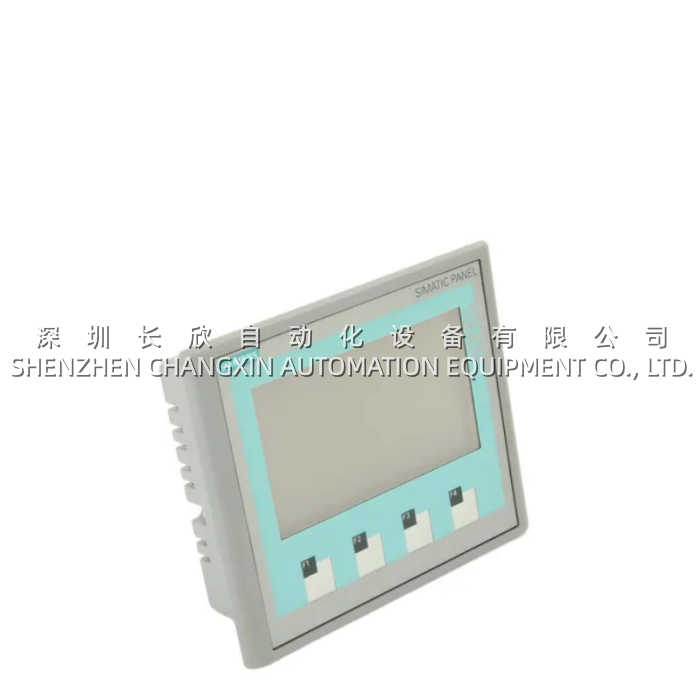

Siemens 6AV6647-0AK11-3AX0 SIMATIC KTP400 Basic Color PN

Product Description

The Siemens 6AV6647-0AK11-3AX0 is a SIMATIC KTP400 Basic Color PN panel from Siemens’ highly regarded Basic Panel series, offering a cost-effective entry point into high-quality human-machine interaction . This compact operator panel combines a 4.3-inch widescreen TFT color display with both touch operation and four tactile function keys, providing a versatile solution for simple visualization tasks on compact machines and small-scale automation systems .

The 6AV6647-0AK11-3AX0 seamlessly integrates into the TIA Portal engineering framework, making it the ideal choice for operators looking to maximize efficiency and minimize startup time on their production lines .

Application Scenarios

In a medium-sized packaging equipment factory, engineers faced a challenge with a new generation of wrapping machines that required a user-friendly interface capable of quick parameter adjustments and status monitoring. By selecting the Siemens 6AV6647-0AK11-3AX0, they gained a powerful yet affordable HMI that perfectly matched the machine’s compact control cabinet. The intuitive touchscreen and physical function keys allowed operators to easily switch between product recipes and start/stop the line, reducing setup time by 15% and virtually eliminating training requirements for new staff .

The 6AV6647-0AK11-3AX0 addresses critical industrial pain points:

Need for a cost-effective visualization solution for basic machines and single-station automation
Requirement for flexible operator input through both touch and hard keys
Demand for quick commissioning and seamless integration with modern S7-1200 and S7-1500 controllers via PROFINET
Requirement for a durable HMI that withstands harsh industrial environments with IP65 front protection

Parameters

Main Parameters	Value/Description
Product Model	6AV6647-0AK11-3AX0
Manufacturer	Siemens
Product Category	SIMATIC HMI Basic Panel
Product Type	KTP400 Basic Color PN
Display Type	4.3″ TFT Widescreen, 480 x 272 pixels
Display Colors	256
Backlight MTBF (at 25°C)	50,000 hours
Control Elements	4x programmable function keys + analog-resistive touchscreen
Configuration Memory	1 MB (user data)
Communication Interface	1x PROFINET (Ethernet, 2-port switch functionality)
Supported Protocols	PROFINET, EtherNet/IP, Modbus TCP/IP, TCP/IP
Supply Voltage	24 V DC (19.2 – 28.8 V)
Typical Power Consumption	2 W
Front Protection	IP65
Rear Protection	IP20
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +60°C
Dimensions (W×H×D)	140 × 116 × 33 mm
Weight	Approx. 0.34 kg
Mounting Cutout	123 × 99 mm
Configuration Software	WinCC Basic V11 SP2+ (TIA Portal) or WinCC flexible 2008 SP2 Compact
