Application Scenarios
In a recent pharmaceutical process control upgrade, engineers faced the challenge of needing a highly reliable operator interface that allowed rapid access to critical batch parameters without relying solely on touchscreens. The Siemens 6AV6542-0DA10-0AX0 was selected for its robust key-based interface, allowing operators to quickly execute control functions and input setpoints via the alphanumeric keyboard during critical production phases. This improved operational efficiency by 20%, as physical keys provided tactile feedback that reduced input errors in a high-stress environment .
Similarly, in a heavy machinery manufacturing plant, the 6AV6542-0DA10-0AX0 proved invaluable. Operators were able to monitor complex production lines using the high-resolution 12.1-inch display while using the integrated function keys to initiate safety protocols and machine cycles directly, bypassing multiple menu layers. The panel’s integration with WinCC flexible ensured seamless data exchange with the plant’s S7-400 controllers, reducing the need for extensive operator training and accelerating commissioning timelines .
Technical Specifications
| Main Parameters | Value/Description |
|---|---|
| Product Model | 6AV6542-0DA10-0AX0 |
| Manufacturer | Siemens (SIMATIC) |

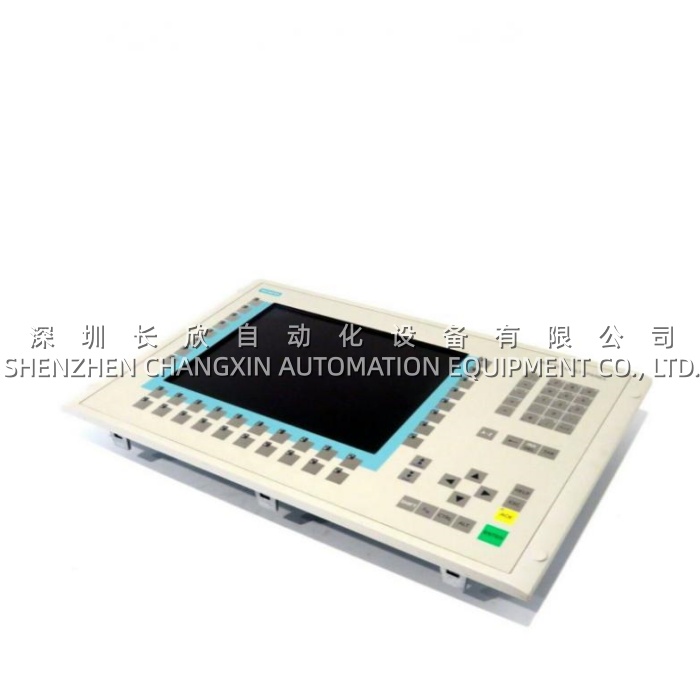

| Product Category | HMI Multi Panel (Key Version) |
| Display Type | 12.1-inch TFT, 256 colors |
| Resolution (W×H) | 800 × 600 pixels (SVGA) |
| Control Elements | 36 function keys with LEDs + 38 system keys + alphanumeric input |
| Processor | 64-bit RISC (MIPS architecture) |
| Operating System | Windows CE 3.0 |
| User Memory | 7,168 KB available for user data |
| Supply Voltage | 24 VDC, 1.15 A rated current, 28 W typical power |
| Communication Interfaces | 1× Ethernet (RJ45), 1× RS485 (PROFIBUS DP max 12 Mbit/s), 2× RS232, 1× RS422, 1× TTY, USB port |
| Expansion | 1× CF card slot, 1× PC card slot for memory expansion |
| Protection Rating | Front panel IP65, rear panel IP20 |
| Dimensions (W×H×D) | 483 × 310 × 59 mm (front panel) |
| Backlight MTBF | 50,000 hours at 25°C |
| Certifications | CE, FM Class I Div. 2, cULus, EX Zone 2/22 |
Technical Principles and Innovative Values
Innovation Point 1: Hybrid Operator Concept
The Siemens 6AV6542-0DA10-0AX0 innovatively combines the reliability of physical keys with the flexibility of a graphical interface. Unlike pure touchscreen panels, this design ensures that critical functions remain accessible even in dusty or high-vibration environments where touchscreens may be unreliable. The 36 function keys with integrated LEDs provide immediate visual feedback on control status, reducing operator cognitive load .
Innovation Point 2: Open Platform Versatility
Built on Windows CE 3.0, the 6AV6542-0DA10-0AX0 goes beyond standard HMI functionality. It supports additional applications such as process diagnostics (SIMATIC ProAgent), UPS integration, Terminal Client for touch variants, and even Soft-PLC functionality (SIMATIC WinAC MP), effectively transforming the panel into a compact control and visualization station .
Innovation Point 3: High-Density Function Key Configuration
With 36 freely configurable function keys, each capable of executing up to 16 simultaneous functions, the 6AV6542-0DA10-0AX0 significantly reduces the need for complex menu navigation. Operators can directly initialize safety sequences, switch control modes, or call up critical process screens. The keys can also serve as direct PROFIBUS DP input peripherals, enabling hardware-level interaction with the PLC for deterministic response times .
Innovation Point 4: Advanced Data Management
The panel supports comprehensive recipe management, archiving, and logging. It can store up to 500 recipes with 1,000 data records each, enabling fast changeovers in batch production environments. All data can be stored on CF/PC cards or transmitted over Ethernet in CSV format for integration with MS Excel and Access, providing a bridge between plant-floor operations and enterprise-level data analysis .
