Technical Specifications
| Parameter Name | Value |
|---|---|

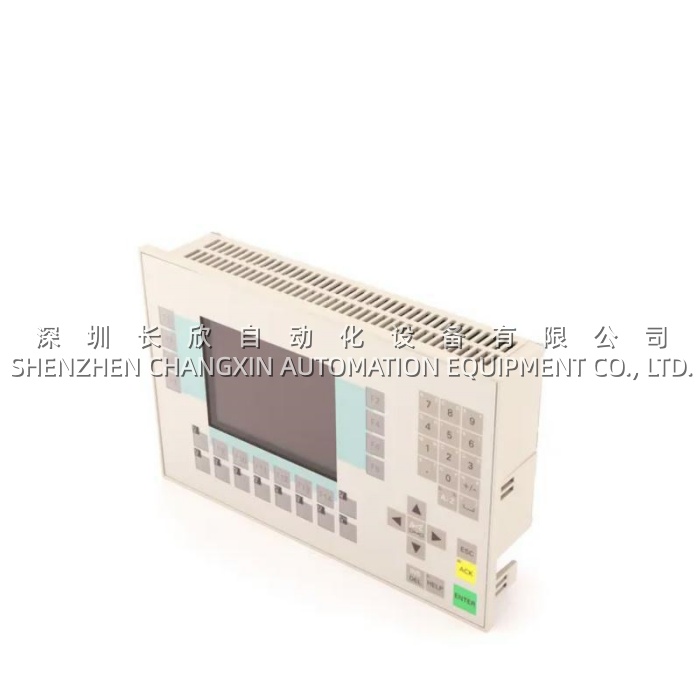

| Product Model | 6AV3627-1JK00-0AX0 (OP27) |
| Manufacturer | Siemens |
| Product Type | Operator Panel (HMI) |
| Display Type | STN, monochrome (8 gray scales) |
| Screen Diagonal | 5.7 inches |
| Display Resolution | 240 x 320 pixels |
| Backlight MTBF (at 25°C) | 50,000 hours |
| Operating Elements | Keys and membrane keyboard |
| Function Keys | 24, with 18 equipped with LEDs |
| Processor | x86, 33 MHz |
| User Memory | 1,024 kbyte |
| Communication Interfaces | 1 x TTY, 2 x RS232, 1 x RS422, 1 x RS485 |
| Transmission Rate (max.) | 12 Mbit/s (RS485) |
| Supply Voltage | 18 V DC |
| Rated Current | 0.3 A |
| Power Consumption | 8 W |
| Housing Front Dimensions | 296 mm (W) x 192 mm (H) |
| Device Depth | 59 mm |
| Installation Cutout | 282 x 178 x 59 mm (W x H x D) |
| Weight (without packaging) | 1.85 kg |
| Protection Rating (Front) | IP65 |
| Protection Rating (Rear) | IP20 |
| Operating Temperature | 0°C to +50°C (typical, ambient) |
| Storage/Transport Temperature | -20°C to +60°C |
| Operating System | Rmos |
| Configuration Tool | ProTool (Version 3.1 or higher) |
| Lifecycle Status | PM500 (Discontinued in 2013) |
Main Features and Advantages
Classic key-based operation for demanding environments: The Siemens 6AV3627-1JK00-0AX0 is designed for operators who require tactile feedback and durability. It features 24 programmable function keys, 18 of which are backlit with LEDs for clear status indication even in low-light conditions. This key-based design is highly resistant to spills, dirt, and glove use, making the Siemens 6AV3627-1JK00-0AX0 a more rugged and reliable choice than capacitive touchscreens in many industrial settings.
High-contrast, low-power monochrome display: Equipped with a 5.7-inch STN display with 8 gray scales and a resolution of 240 x 320 pixels, the Siemens 6AV3627-1JK00-0AX0 ensures excellent readability in both bright and dimly lit environments. The LED backlighting boasts a long MTBF of 50,000 hours, minimizing maintenance requirements and ensuring a long service life. The low power consumption of just 8 W makes it an energy-efficient component for any control cabinet.
Versatile communication and integration: To facilitate connectivity, the Siemens 6AV3627-1JK00-0AX0 is equipped with a wide array of interfaces, including TTY, RS232, RS422, and RS485. This flexibility allows the panel to be easily integrated with a vast range of Siemens controllers and legacy systems. The RS485 interface supports a high transmission rate of up to 12 Mbit/s, ensuring fast and reliable data exchange. As an OP27 series panel, it is fully supported by the ProTool configuration software, simplifying the creation of clear and efficient operator screens.
Robust and durable construction for long-term reliability: Built with a sturdy plastic housing and a membrane front that meets IP65 protection standards, the Siemens 6AV3627-1JK00-0AX0 is well-protected against dust and water jets. This robust construction ensures consistent performance in harsh factory floor conditions, contributing to its reputation as a dependable workhorse for machine-level control and monitoring.
