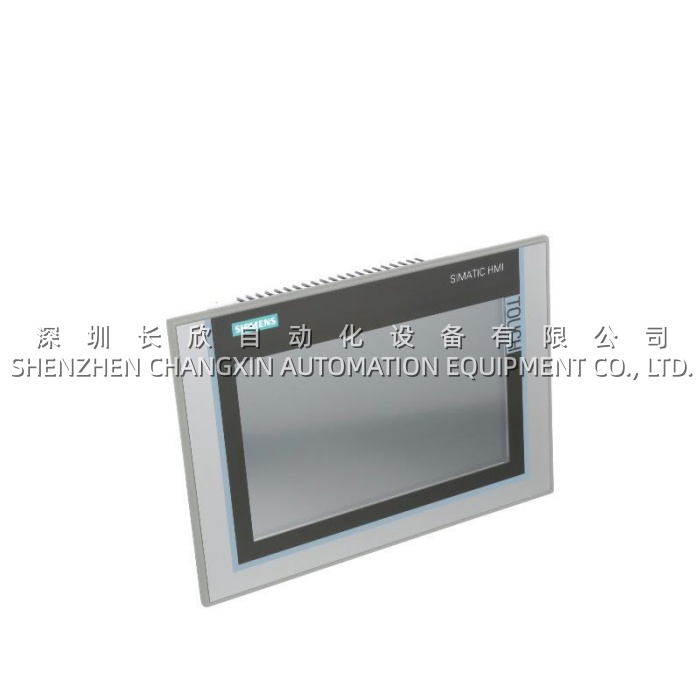

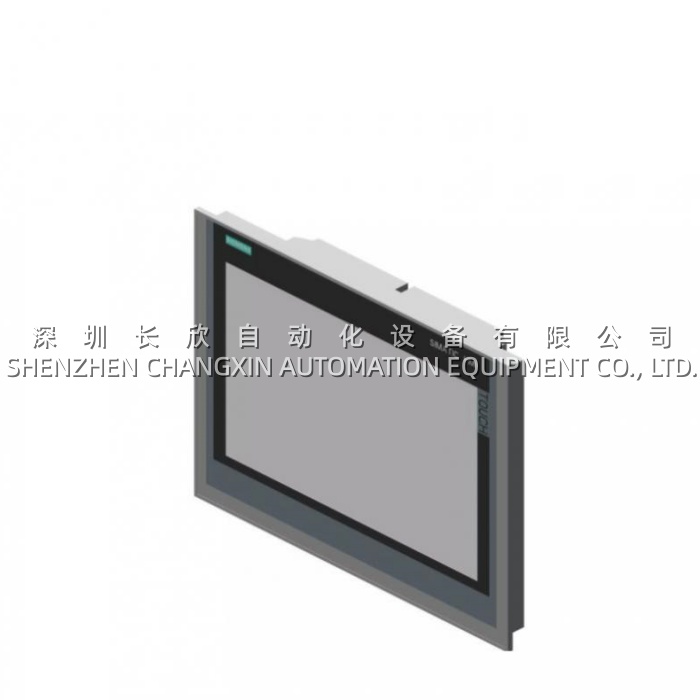

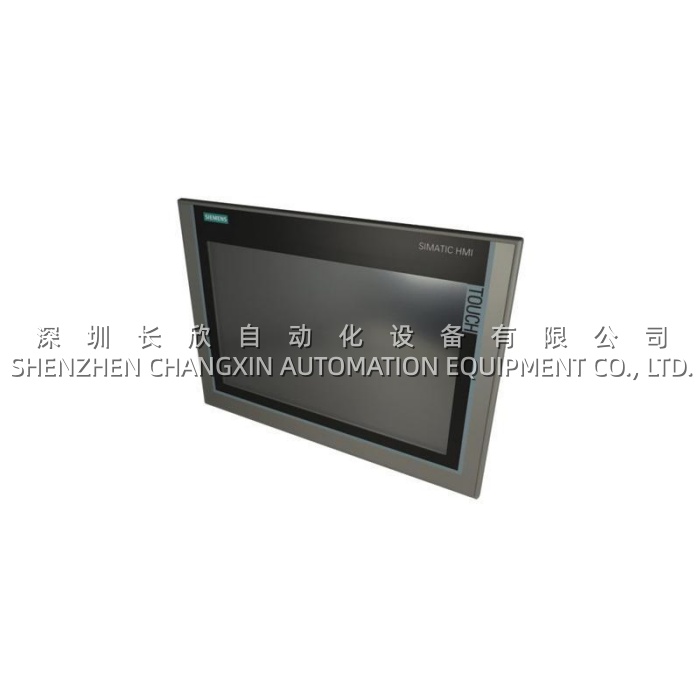

Siemens 6AV2124-0QC02-0AX0 SIMATIC HMI TP1500 Comfort Panel

Product Overview

The Siemens 6AV2124-0QC02-0AX0, also known as the SIMATIC HMI TP1500 Comfort, is a high-performance 15.4-inch widescreen touch panel designed for sophisticated visualization and operator control tasks in industrial automation environments. As a flagship member of the Siemens Comfort Panel series, this device bridges the gap between machine-level operations and enterprise-wide data integration, offering an intuitive interface for monitoring and controlling complex processes. The Siemens 6AV2124-0QC02-0AX0 delivers a brilliant TFT display with 16 million colors and a resolution of 1280 x 800 pixels, providing operators with crystal-clear visualization of process data, trends, and alarms .

Engineered to meet the demands of high-end applications, the Siemens 6AV2124-0QC02-0AX0 is equipped with an X86 processor and 24 MB of configuration memory, ensuring rapid screen changes and responsive interaction . Its versatility is underscored by multiple integrated interfaces, including two PROFINET ports with an integrated switch, an MPI/PROFIBUS DP interface, and two USB 2.0 ports, allowing seamless connectivity to Siemens S7 controllers and third-party devices. The Siemens 6AV2124-0QC02-0AX0 is configurable with the TIA Portal engineering framework starting from WinCC Comfort V11 SP2, making it a powerful and future-proof choice for modern automation projects . As a successor to the Multi Panel MP 377, this panel offers increased display area and enhanced performance, solidifying its role as a cornerstone of efficient human-machine interaction .

Technical Specifications

Parameter Name	Parameter Value
Product Model	6AV2124-0QC02-0AX0
Manufacturer	Siemens
Product Type	HMI Touch Panel / Comfort Panel
Series	SIMATIC TP1500 Comfort
Display Type	TFT, 16 million colors
Screen Diagonal	15.4 inches (widescreen)
Display Resolution	1280 x 800 pixels (WXGA)
Supply Voltage	24 V DC (permissible range 19.2V to 28.8V)
Typical Power Consumption	36 W
Processor	X86
Configuration Memory	24 MB
Interfaces	2x PROFINET (switch), 1x MPI/PROFIBUS DP, 2x USB 2.0, 1x USB Mini B, 2x SD Card slots
Backlight MTBF	80,000 hours at 25°C
Protection Rating	IP65 (front), IP20 (rear)
Operating Temperature	0°C to 50°C
Mounting Options	Portrait or landscape format

Main Features and Advantages

The Siemens 6AV2124-0QC02-0AX0 distinguishes itself through its combination of expansive display real estate and robust processing power. The 15.4-inch widescreen TFT display with WXGA resolution is a significant advantage, providing 51% more display space than its predecessors . This allows the Siemens 6AV2124-0QC02-0AX0 to present complex process graphics, detailed trends, and large numbers of alarm messages simultaneously, significantly enhancing operator situational awareness. The display is rated for 80,000 hours of backlight operation and is dimmable from 0% to 100%, ensuring visibility and longevity in varying ambient light conditions .

Connectivity is a hallmark of the Siemens 6AV2124-0QC02-0AX0, making it a versatile hub for industrial communication. The two PROFINET ports with an integrated switch enable the creation of line or ring topologies without requiring an external switch, reducing hardware costs and cabling effort. This feature is particularly beneficial for the Siemens 6AV2124-0QC02-0AX0 in distributed control architectures . Additionally, the panel supports the MRP (Media Redundancy Protocol), enhancing network reliability in critical applications. Support for a wide range of protocols, including PROFINET IO, PROFIBUS DP, MPI, and EtherNet/IP, ensures that the Siemens 6AV2124-0QC02-0AX0 can integrate seamlessly into both new and existing Siemens environments .

The Siemens 6AV2124-0QC02-0AX0 features an analog-resistive touchscreen that is compatible with gloved hands, making it practical for demanding industrial settings . It includes 40 configurable “direct keys” (touch buttons that function as S7 input I/O), allowing for rapid operator input without navigating through multiple screens. The panel runs on the Windows CE operating system and is engineered for high-end applications, offering features such as a web browser, support for Sm@rtServer for remote access, and integrated PDF and media viewers . The Siemens 6AV2124-0QC02-0AX0 also supports up to 32 languages online, making it ideal for global deployments .

Application Field

The primary application of the Siemens 6AV2124-0QC02-0AX0 lies in high-performance machine-level visualization and control. Its large, high-resolution screen is perfectly suited for monitoring and operating complex production machinery, packaging lines, and material handling systems where detailed process information must be readily accessible. In the automotive and aerospace manufacturing sectors, the Siemens 6AV2124-0QC02-0AX0 provides operators with a clear, central interface for coordinating multi-station assembly lines and robotics. The intuitive touch interface of the Siemens 6AV2124-0QC02-0AX0 reduces training requirements and accelerates the troubleshooting process.

Beyond discrete manufacturing, the Siemens 6AV2124-0QC02-0AX0 is well-suited for process industry applications such as chemical plants, water and wastewater treatment facilities, and food and beverage production. In these environments, the panel’s ability to display trending data, alarms, and recipes is invaluable. The robust IP65 front protection of the Siemens 6AV2124-0QC02-0AX0 ensures reliable operation even in areas subject to washdown or dust. The device can serve as a powerful local operator station within a larger SCADA system, or function as a standalone unit for smaller, self-contained machines. Its wide range of communication protocols ensures the Siemens 6AV2124-0QC02-0AX0 can connect to a diverse set of controllers, making it a flexible choice for both Siemens-centric and mixed-vendor automation environments.
