Application Scenarios

Open a typical HC900 cabinet during a routine walkdown and you will often find several slots sitting empty—reserved for future expansion, left over from a decommissioned loop, or simply because the I/O count rounded up to the next rack size. To an operator they look harmless. To a controls engineer, each one is an open invitation: a dropped screw can short the backplane, conductive dust can settle on gold-plated contacts and cause the kind of intermittent channel fault that takes days to trace, and a cabinet internal audit can flag missing slot covers as a corrective-action item.

One plant learned this the hard way when a stray stainless screw found its way behind an uncovered slot and bridged two backplane terminals. The resulting channel error was sporadic, appearing only during panel-door vibration, and consumed more than 30 man-hours of troubleshooting before the screw was found. After that incident the facility adopted a simple rule: every empty slot gets a 900TNF-0001​ before the cabinet door is closed.

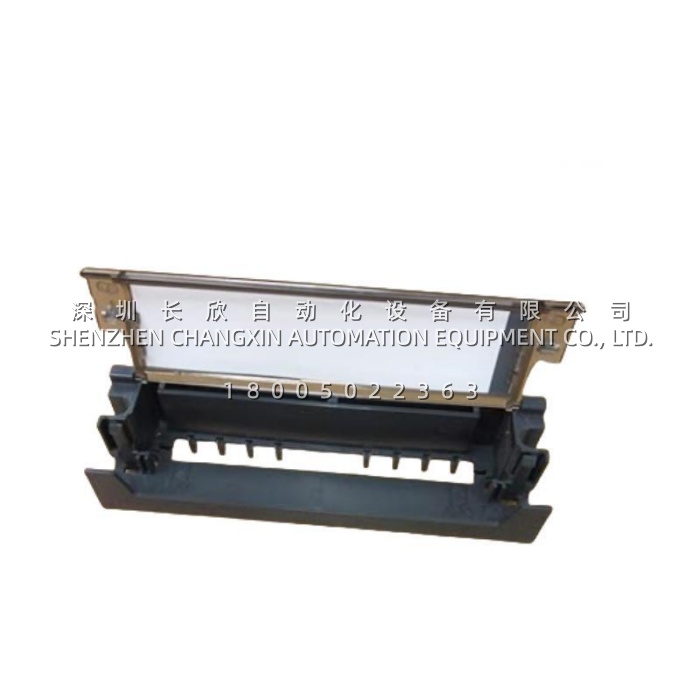

Honeywell’s own HC900 installation instructions state the requirement plainly—every slot not occupied by an I/O module must have a filler block cover, part number 900TNF-0001. This is not a suggestion or a cosmetic preference. An uncovered slot compromises touch protection for personnel, allows contaminants into the chassis, degrades the enclosure’s intended IP rating, and breaks the continuous shielded surface that helps keep EMI away from sensitive analog signals. For panel builders and maintenance teams, the 900TNF-0001​ is the lowest-cost item in the storeroom and one of the highest-return safety and reliability measures available.
